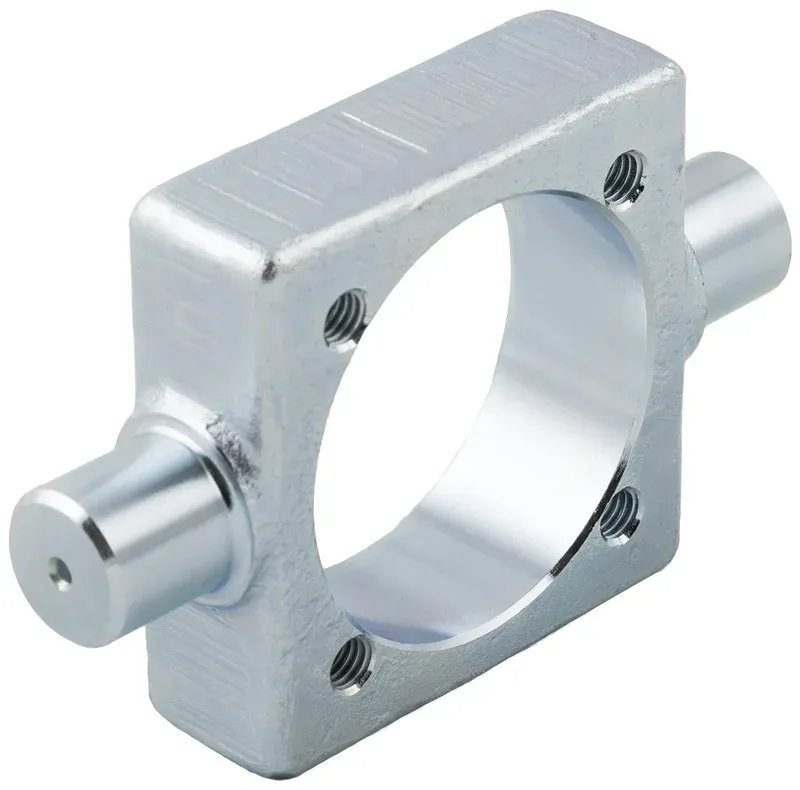

INTERMEDIATE HINGE FOR THREADED TIE-RODS - STEEL

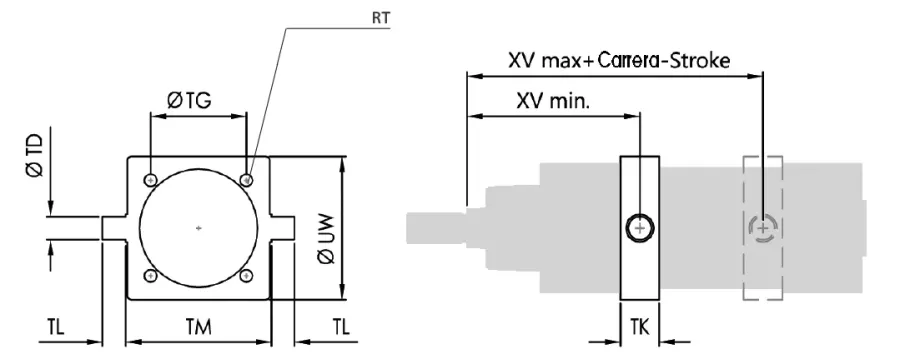

Code	USA Ref	3D Drawings	Ø mm	TD mm	TG mm	TK mm	TL mm	TM mm	UW mm	XV Min mm	XV Max mm	RT
VCNT 032	VCNT032	Request access	32	12	32.5	15	12	50	46	61,5	84,5	M6
VCNT 040	VCNT040	Request access	40	16	38	20	16	63	59	71,5	93,5	M6
VCNT 050	VCNT050	Request access	50	16	46.5	20	16	75	69	78,5	101,5	M8
VCNT 063	VCNT063	Request access	63	20	56.5	25	20	90	84	84,5	110,5	M8
VCNT 080	VCNT080	Request access	80	20	72	25	20	110	102	94,5	125,5	M10
VCNT 100	VCNT100	Request access	100	25	89	30	25	132	125	107	133	M10
VCNT 125	VCNT125	Request access	125	25	110	32	25	160	155	126	163	M12
VCNT 160	VCNT160	Request access	160	32	140	40	32	200	190	149	191	M16
VCNT 200	VCNT200	Request access	200	32	175	40	32	250	240	164	206	M16
VCNT 250	VCNT250	Request access	250	40	220	50	40	320	296	187	223	M20
