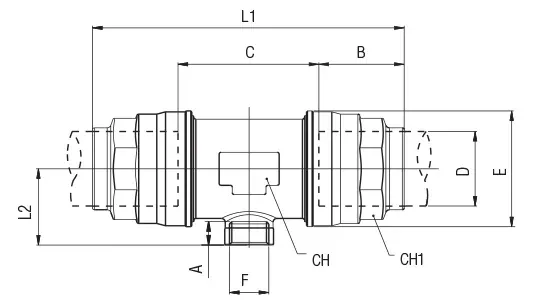

| Code | USA Ref | 3D Drawings | D | F | A | B | C | E | L1 | L2 | CH | CH1 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90237 00 007 | 90237-20-08 | Request access | 20 | 1/2 | 0.531 (13.5) | 1.240 (31.5) | 1.890 (48) | 1.358 (34.5) | 4.291 (109) | 0.984 (25) | 1.102 (28) | 1.181 (30) | 3 | ||
| 90237 00 008 | 90237-25-08 | Request access | 25 | 1/2 | 0.531 (13.5) | 1.515 (38.5) | 2.145 (45.5) | 1.673 (42.5) | 4.783 (121.5) | 1.318 (33.5) | 1.377 (35) | 1.377 (35) | 3 | ||
| 90237 00 003 A | 90237A-40-08 | Request access | 40 | 1/2 | 0.531 (13.5) | 2.047 (52) | 3.346 (85) | 2,716 (69) | 7.362 (187,5) | 1,692 (43,5) | 2,244 (57) | 2.165 (55) | Aluminium | 1 | |
| 90237 00 017 A | 90237A-63-08 | Request access | 63 | 1/2 | 0.531 (13.5) | 2.264 (57.5) | 3.465 (88) | 3.701 (94) | 7.992 (203) | 2.087 (53) | 3.150 (80) | 2.953 (75) | Aluminium | 1 | |
| 90237 00 005 A | 90237A-63-12 | Request access | 63 | 3/4 | 0.551 (14) | 2.264 (57.5) | 3.465 (88) | 3.701 (94) | 7.992 (203) | 2.126 (54) | 3.150 (80) | 2.953 (75) | Aluminium | 1 | |
| 90237 00 018 A | 90237A-63-16 | Request access | 63 | 1" | 0.669 (17) | 2.264 (57.5) | 3.465 (88) | 3.701 (94) | 7.992 (203) | 2.224 (56.5) | 3.150 (80) | 2.953 (75) | Aluminium | 1 |
