50700N

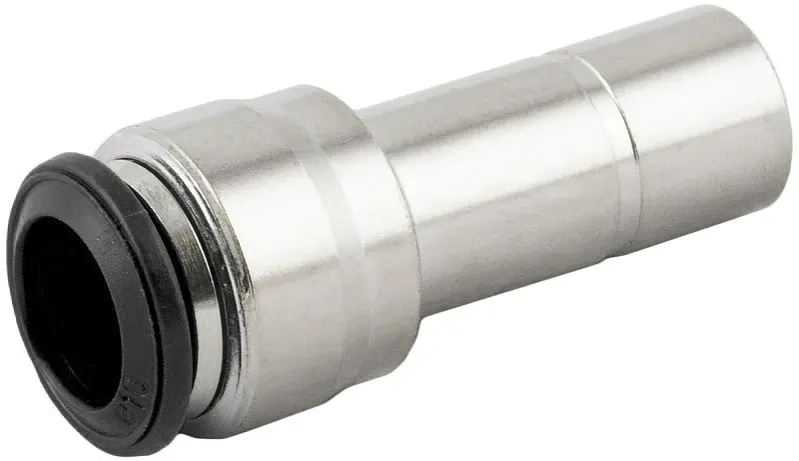

TUBE REDUCER

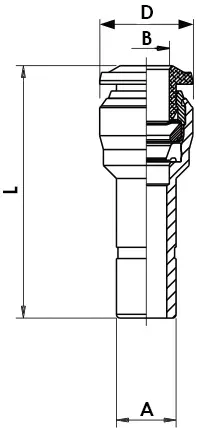

| Code | USA Ref | 3D Drawings | A | B | L | D | Bag | |
|---|---|---|---|---|---|---|---|---|
| 50700 00 N06 | 50700N-4-3 | Request access | 5/32 (4) | 3 | 1.181 (30) | 0.335 (8.5) | 10 | |
| 50700 00 N04 | 50700N-5-4 | Request access | 5 | 5/32 (4) | 1.260 (32) | 0.453 (11.5) | 10 | |
| 50700 00 N01 | 50700N-6-4 | Request access | 6 | 5/32 (4) | 1.181 (30) | 0.413 (10.5) | 10 | |
| 50700 00 N05 | 50700N-6-5 | Request access | 6 | 5 | 1.358 (34.5) | 0.453 (11.5) | 10 | |
| 50700 00 N08 | 50700N-8-4 | Request access | 5/16 (8) | 5/32 (4) | 1.280 (32.5) | 0.413 (10.5) | 10 | |
| 50700 00 N02 | 50700N-8-6 | Request access | 5/16 (8) | 6 | 1.358 (34.5) | 0.492 (12.5) | 10 | |
| 50700 00 N09 | 50700N-10-4 | Request access | 10 | 5/32 (4) | 1.240 (31.5) | 0.413 (10.5) | 10 | |
| 50700 00 N11 | 50700N-10-6 | Request access | 10 | 6 | 1.476 (37.5) | 0.492 (12.5) | 10 | |
| 50700 00 N03 | 50700N-10-8 | Request access | 10 | 5/16 (8) | 1.516 (38.5) | 0.571 (14.5) | 10 | |
| 50700 00 N07 | 50700N-12-8 | Request access | 12 | 5/16 (8) | 1.555 (39.5) | 0.571 (14.5) | 10 | |
| 50700 00 N10 | 50700N-12-10 | Request access | 12 | 10 | 1.693 (43) | 0.689 (17.5) | 10 |
