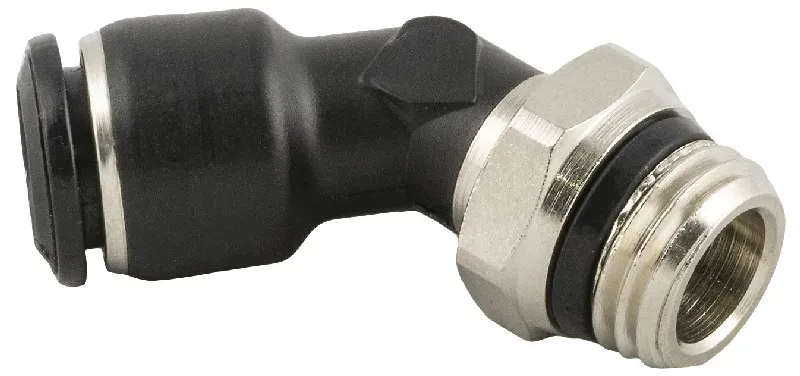

45° SWIVEL ELBOW - SWIFTFIT

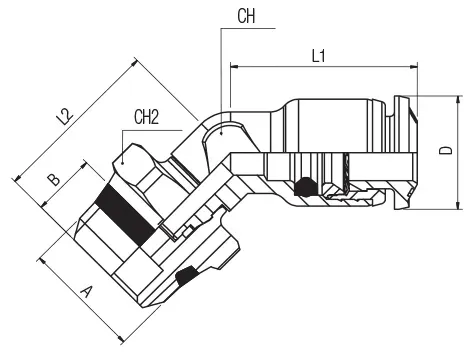

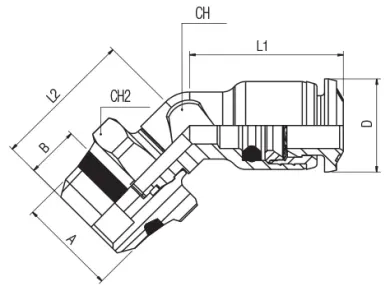

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH	CH2	D	Bag
55170 00 001	55170-4-1/8	Request access	5/32 (4)	1/8	0.217 (5.5)	0.492 (12.5)	0.650 (16.5)	0.276 (7)	0.512 (13)	0.394 (10)	10
55170 00 004	55170-6-1/8	Request access	6	1/8	0.217 (5.5)	0.807 (20.5)	0.689 (17.5)	0.354 (9)	0.512 (13)	0.472 (12)	10
55170 00 005	55170-6-1/4	Request access	6	1/4	0.276 (7)	0.807 (20.5)	0.744 (18.9)	0.354 (9)	0.591 (15)	0.472 (12)	10
55170 00 008	55170-8-1/8	Request access	5/16 (8)	1/8	0.217 (5.5)	0.866 (22)	0.728 (18.5)	0.394 (10)	0.512 (13)	0.551 (14)	10
55170 00 009	55170-8-1/4	Request access	5/16 (8)	1/4	0.276 (7)	0.866 (22)	0.787 (20)	0.394 (10)	0.591 (15)	0.551 (14)	10
55170 00 010	55170-8-3/8	Request access	5/16 (8)	3/8	0.295 (7.5)	0.866 (22)	0.807 (20.5)	0.394 (10)	0.669 (17)	0.551 (14)	10
55170 00 012	55170-10-1/4	Request access	10	1/4	0.276 (7)	1.043 (26.5)	0.858 (21.8)	0.512 (13)	0.630 (16)	0.669 (17)	10
55170 00 013	55170-10-3/8	Request access	10	3/8	0.295 (7.5)	1.043 (26.5)	0.858 (21.8)	0.512 (13)	0.669 (17)	0.669 (17)	10
55170 00 014	55170-10-1/2	Request access	10	1/2	0.354 (9)	1.043 (26.5)	0.957 (24.3)	0.512 (13)	0.827 (21)	0.669 (17)	10
55170 00 015	55170-12-1/4	Request access	12	1/4	0.276 (7)	1.181 (30)	0.909 (23.1)	0.630 (16)	0.630 (16)	0.787 (20)	10
55170 00 016	55170-12-3/8	Request access	12	3/8	0.295 (7.5)	1.181 (30)	0.909 (23.1)	0.630 (16)	0.669 (17)	0.787 (20)	10
55170 00 017	55170-12-1/2	Request access	12	1/2	0.354 (9)	1.181 (30)	1.008 (25.6)	0.630 (16)	0.827 (21)	0.787 (20)	10
