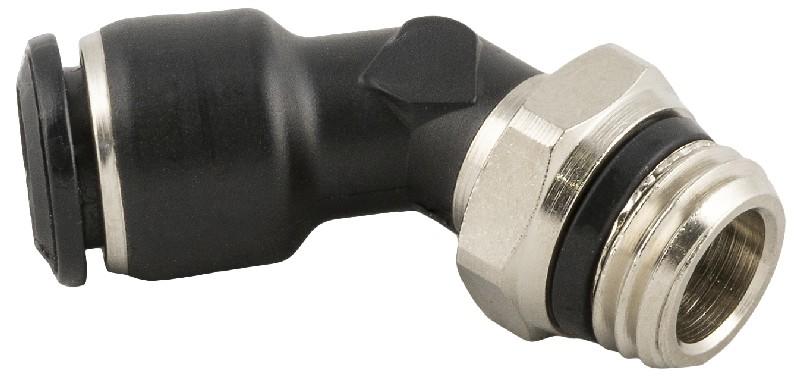

45° ORIENTING ELBOW MALE ADAPTOR “UNIVERSAL SHORT”

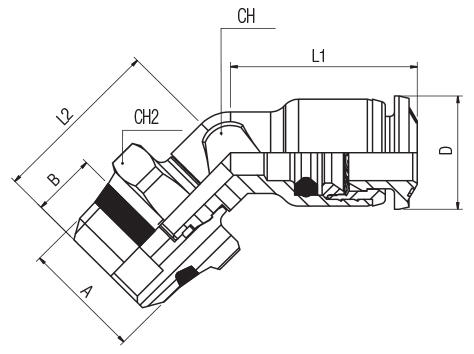

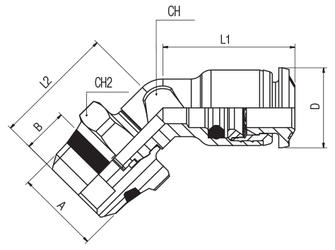

Code	3D Drawings	Tube	A	B	L1	L2	CH	CH2	D	Bag
55170 00 001	Request access	4	1/8	5,5	12.5	16.5	7	13	10	10
55170 00 004	Request access	6	1/8	5,5	20.5	17,5	9	13	12	10
55170 00 005	Request access	6	1/4	7	20.5	18,9	9	15	12	10
55170 00 008	Request access	8	1/8	5,5	22	18,5	10	13	14	10
55170 00 009	Request access	8	1/4	7	22	20	10	15	14	10
55170 00 010	Request access	8	3/8	7,5	22	20,5	10	17	14	10
55170 00 012	Request access	10	1/4	7	26.5	21,8	13	16	17	10
55170 00 013	Request access	10	3/8	7,5	26.5	21,8	13	17	17	10
55170 00 014	Request access	10	1/2	9	26.5	24,3	13	21	17	10
55170 00 015	Request access	12	1/4	7	30	23,1	16	16	20	10
55170 00 016	Request access	12	3/8	7,5	30	23,1	16	17	20	10
55170 00 017	Request access	12	1/2	9	30	25,6	16	21	20	10
