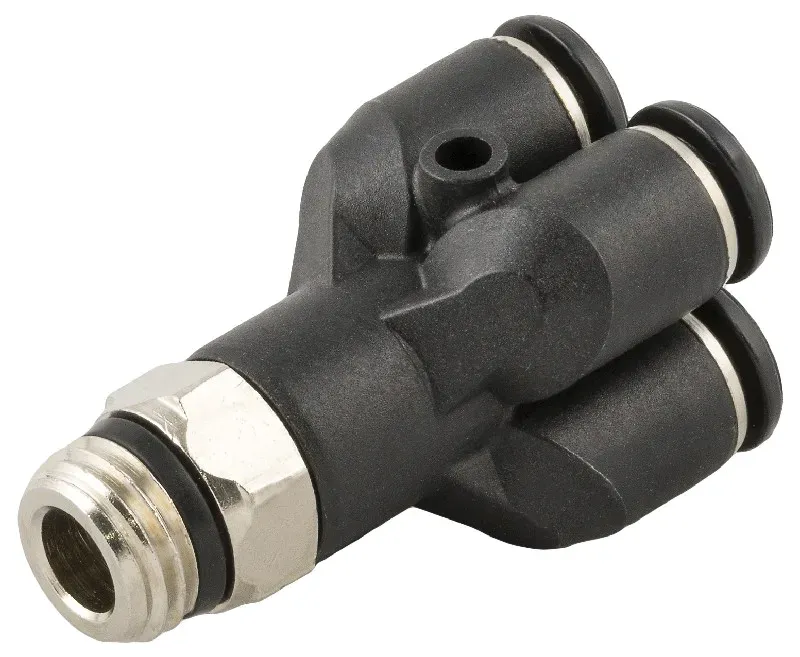

4 POSITIONS Y - SWIFTFIT

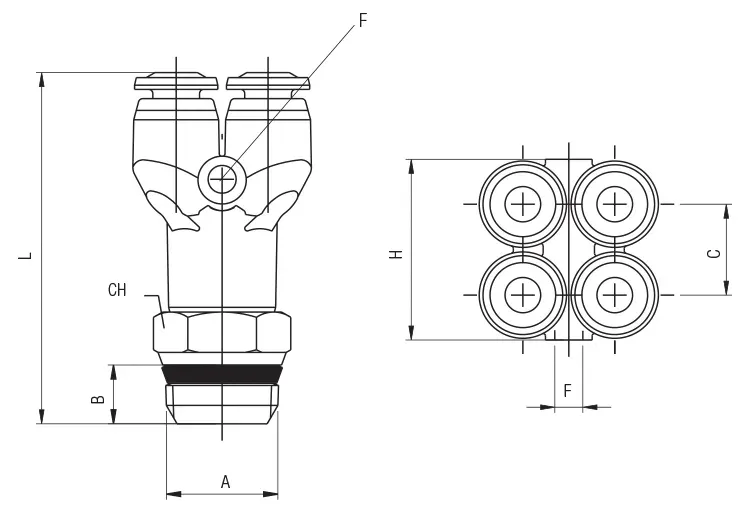

Code	USA Ref	3D Drawings	Tube	A	B	C	L	H	CH	F	Bag
55340 00 001	55340-4-1/8	Request access	5/32 (4)	1/8	0.217 (5.5)	0.433 (11)	1.555 (39.5)	0.846 (21.5)	0.433 (11)	0.130 (3.3)	10
55340 00 002	55340-4-1/4	Request access	5/32 (4)	1/4	0.276 (7)	0.433 (11)	1.654 (42)	0.846 (21.5)	0.551 (14)	0.130 (3.3)	10
55340 00 003	55340-6-1/8	Request access	6	1/8	0.217 (5.5)	0.531 (13.5)	1.831 (46.5)	1.055 (26.8)	0.433 (11)	0.130 (3.3)	10
55340 00 004	55340-6-1/4	Request access	6	1/4	0.276 (7)	0.531 (13.5)	1.890 (48)	1.055 (26.8)	0.551 (14)	0.130 (3.3)	10
