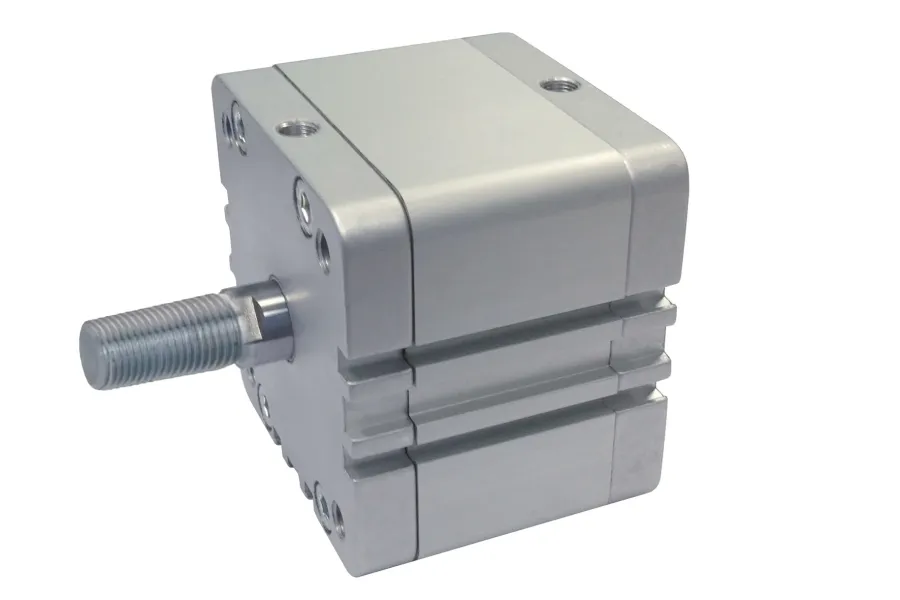

WBM - SINGLE-ACTING MAGNETIC - Male Rod - Bore from 32 to 100

Filter

WBM032100

WBM - SINGLE-ACTING MAGNETIC - Male Rod - Bore from 32 to 100

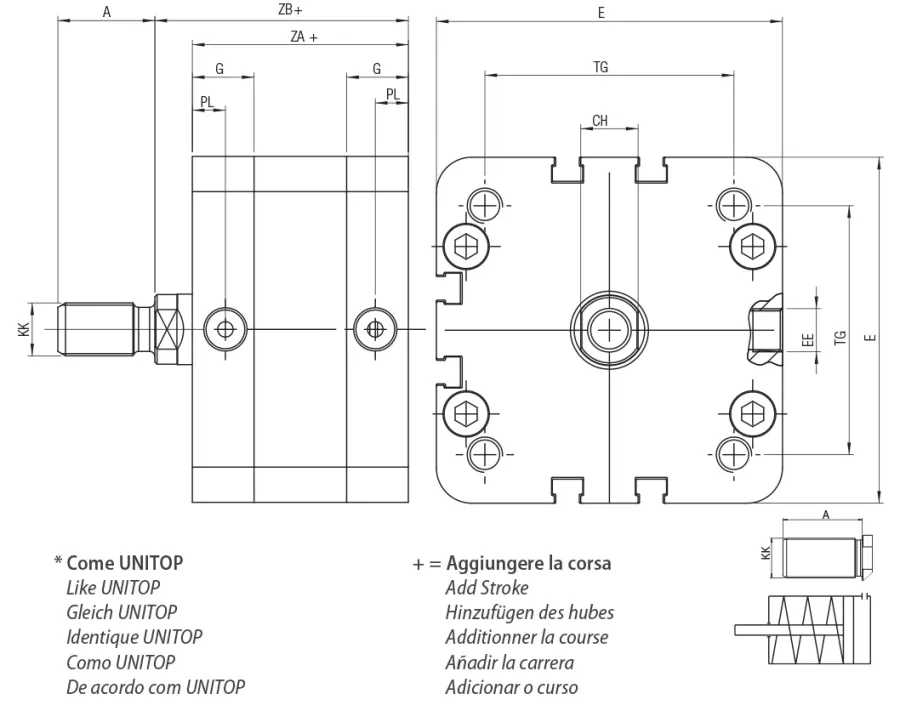

Code	USA Ref	3D Drawings	Ø mm	Stroke mm	Ø D mm	E mm	L1 mm	A mm	KK	CH mm	AF mm	KF	BG mm	LA mm	RT	G mm	TG mm	EE	PL mm	Ø D1 mm	T1 mm	ZA+ mm	ZB+ mm
WBM 032 0005	WBM0320005	Request access	32	5	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	9	2,1	44	51
WBM 032 0010	WBM0320010	Request access	32	10	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	9	2,1	44	51
WBM032 0015	WBM0320015	Request access	32	15	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	9	2,1	44	51
WBM 032 0020	WBM0320020	Request access	32	20	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	9	2,1	44	51
WBM 032 0025	WBM0320025	Request access	32	25	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	9	2,1	44	51
WBM 040 0005	WBM0400005	Request access	40	5	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	9	2,1	45	52
WBM 040 0010	WBM0400010	Request access	40	10	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	9	2,1	45	52
WBM 040 0015	WBM0400015	Request access	40	15	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	9	2,1	45	52
WBM 040 0020	WBM0400020	Request access	40	20	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	9	2,1	45	52
WBM 040 0025	WBM0400025	Request access	40	25	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	9	2,1	45	52
WBM 050 0005	WBM0500005	Request access	50	5	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	12	2,6	45	53
WBM 050 0010	WBM0500010	Request access	50	10	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	12	2,6	45	53
WBM 050 0015	WBM0500015	Request access	50	15	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	12	2,6	45	53
WBM 050 0020	WBM0500020	Request access	50	20	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	12	2,6	45	53
WBM 050 0025	WBM0500025	Request access	50	25	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	12	2,6	45	53
WBM 063 0005	WBM0630005	Request access	63	5	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	12	2,6	49	57,5
WBM 063 0010	WBM0630010	Request access	63	10	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	12	2,6	49	57,5
WBM 063 0015	WBM0630015	Request access	63	15	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	12	2,6	49	57,5
WBM 063 0020	WBM0630020	Request access	63	20	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	12	2,6	49	57,5
WBM 063 0025	WBM0630025	Request access	63	25	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	12	2,6	49	57,5
WBM 080 0005	WBM0800005	Request access	80	5	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	12	2,6	54	64
WBM 080 0010	WBM0800010	Request access	80	10	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	12	2,6	54	64
WBM 080 0015	WBM0800015	Request access	80	15	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	12	2,6	54	64
WBM 080 0020	WBM0800020	Request access	80	20	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	12	2,6	54	64
WBM 080 0025	WBM0800025	Request access	80	25	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	12	2,6	54	64
WBM 100 0005	WBM1000005	Request access	100	5	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	12	2,6	67	77
WBM 100 0010	WBM1000010	Request access	100	10	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	12	2,6	67	77
WBM 100 0015	WBM1000015	Request access	100	15	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	12	2,6	67	77
WBM 100 0020	WBM1000020	Request access	100	20	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	12	2,6	67	77
WBM 100 0025	WBM1000025	Request access	100	25	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	12	2,6	67	77
