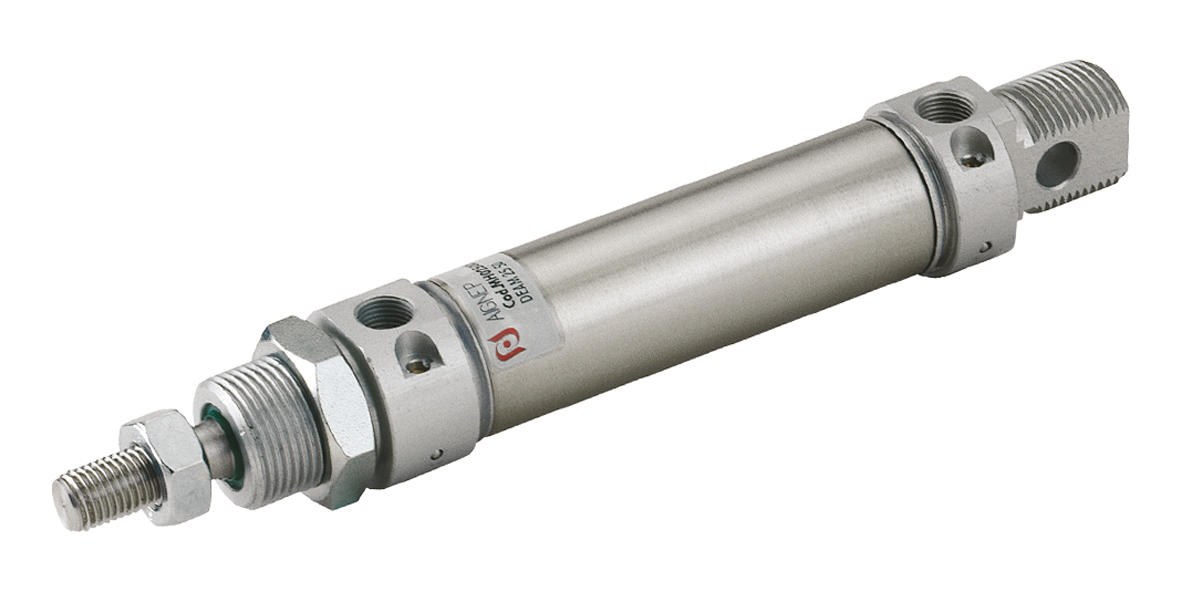

DOUBLE ACTING - CUSHIONED - MAGNETIC

Filter

MH

DOUBLE ACTING - CUSHIONED - MAGNETIC

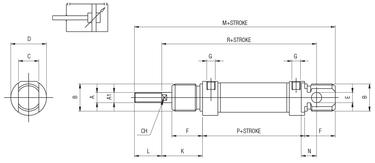

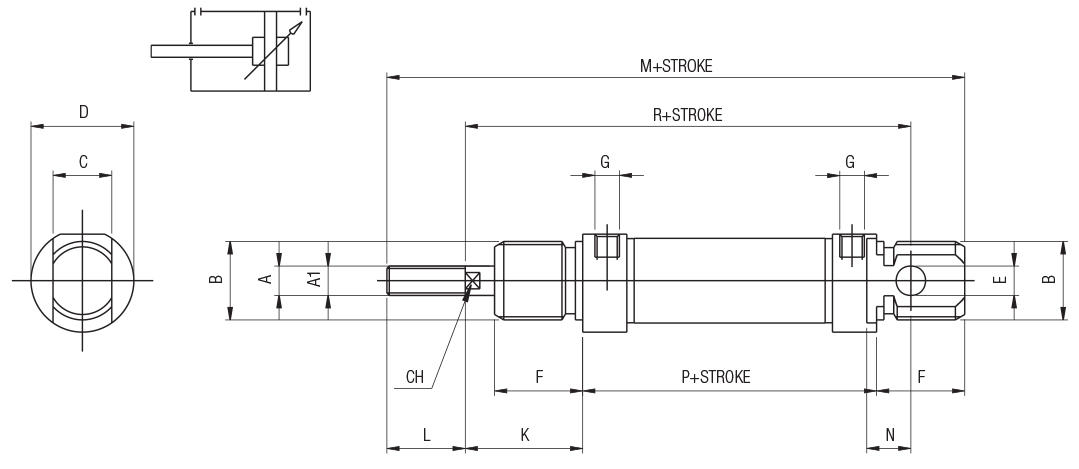

Code	USA Ref	3D Drawings	Ø mm	Stroke mm	A	A1 mm	B	C mm	D mm	E mm	F mm	G	K mm	L mm	M mm	N mm	P mm	R mm	CH mm
MH 016 0025	MH0160025	Request access	16	25	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0040	MH0160040	Request access	16	40	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0050	MH0160050	Request access	16	50	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0080	MH0160080	Request access	16	80	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0100	MH0160100	Request access	16	100	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0125	MH0160125	Request access	16	125	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0160	MH0160160	Request access	16	160	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0200	MH0160200	Request access	16	200	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0250	MH0160250	Request access	16	250	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 020 0025	MH0200025	Request access	20	25	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0040	MH0200040	Request access	20	40	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0050	MH0200050	Request access	20	50	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0080	MH0200080	Request access	20	80	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0100	MH0200100	Request access	20	100	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0125	MH0200125	Request access	20	125	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0160	MH0200160	Request access	20	160	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0200	MH0200200	Request access	20	200	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0250	MH0200250	Request access	20	250	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0320	MH0200320	Request access	20	320	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 025 0025	MH0250025	Request access	25	25	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0040	MH0250040	Request access	25	40	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0050	MH0250050	Request access	25	50	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0080	MH0250080	Request access	25	80	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0100	MH0250100	Request access	25	100	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0125	MH0250125	Request access	25	125	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0160	MH0250160	Request access	25	160	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0200	MH0250200	Request access	25	200	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0250	MH0250250	Request access	25	250	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0320	MH0250320	Request access	25	320	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
