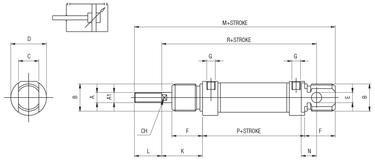

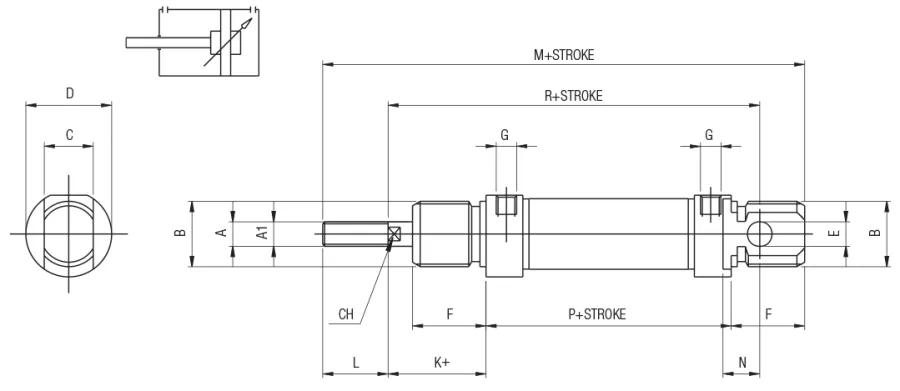

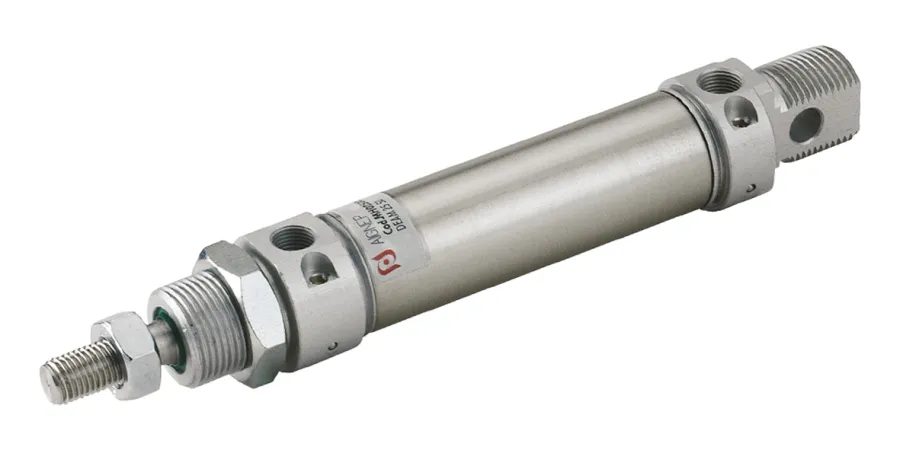

DOUBLE ACTING CUSHIONED MAGNETIC

Code	3D Drawings	Ø	Stroke	A	A1	B	C	D	E	F	G	K	L	M	N	P	R	CH
MH 016 0025	Request access	16	25	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0040	Request access	16	40	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0050	Request access	16	50	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0080	Request access	16	80	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0100	Request access	16	100	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0125	Request access	16	125	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0160	Request access	16	160	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0200	Request access	16	200	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 016 0250	Request access	16	250	M6	6	M16X1,5	12	21	6	18	M5	22	16	109	9	53	82	5
MH 020 0025	Request access	20	25	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0040	Request access	20	40	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0050	Request access	20	50	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0080	Request access	20	80	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0100	Request access	20	100	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0125	Request access	20	125	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0160	Request access	20	160	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0200	Request access	20	200	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0250	Request access	20	250	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 020 0320	Request access	20	320	M8	8	M22X1,5	16	27	8	20	1/8G	24	20	131	12	67	95	7
MH 025 0025	Request access	25	25	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0040	Request access	25	40	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0050	Request access	25	50	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0080	Request access	25	80	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0100	Request access	25	100	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0125	Request access	25	125	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0160	Request access	25	160	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0200	Request access	25	200	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0250	Request access	25	250	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
MH 025 0320	Request access	25	320	M10X1,25	10	M22X1,5	16	30	8	22	1/8G	28	22	140	12	68	104	9
