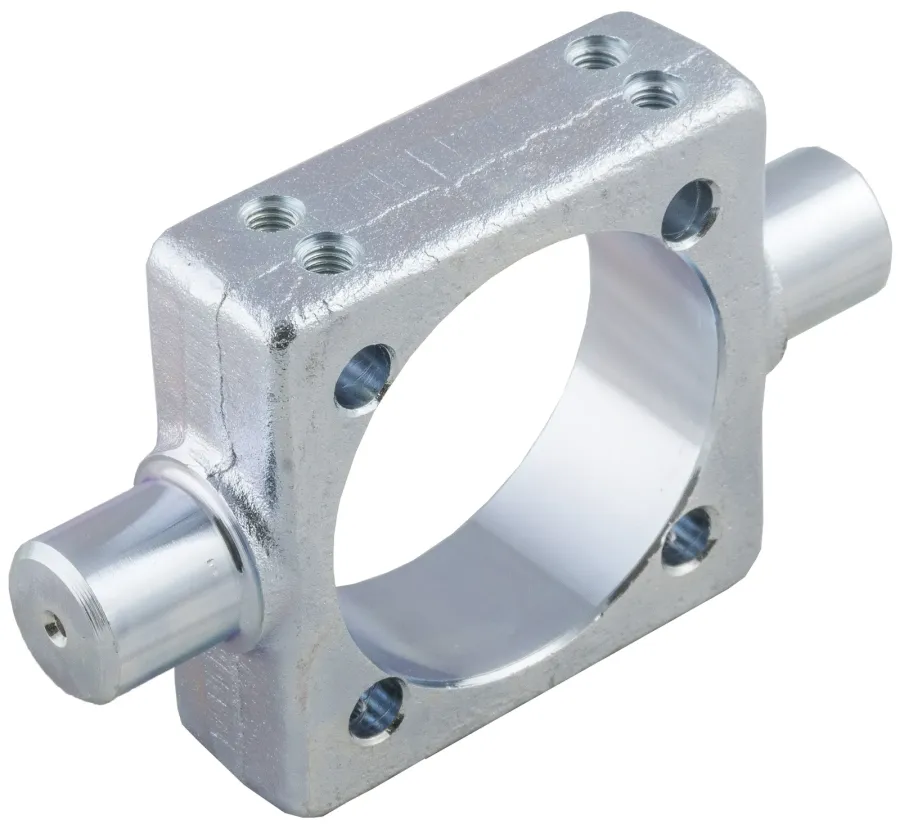

INTERMEDIATE HINGE FOR SMOOTH TIE-RODS - STEEL

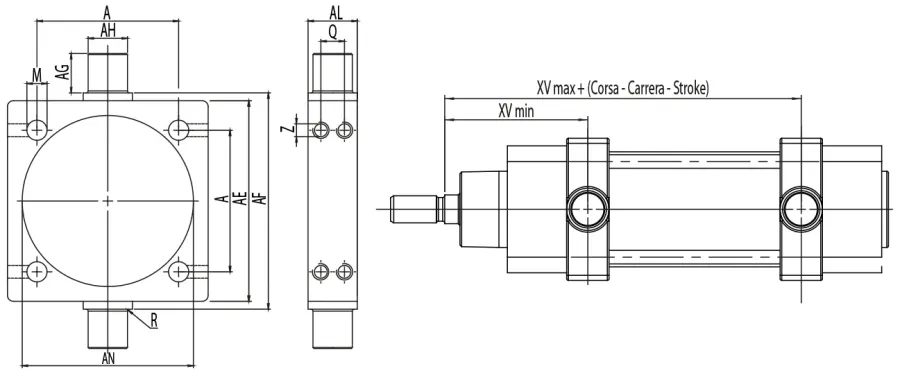

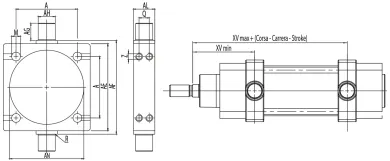

Code	USA Ref	3D Drawings	Ø mm	A mm	AE mm	AL	AH	AG	AF	AN	R	M	Q	Z	XV min	XV max
VCNL 032	VCNL032	Request access	32	32.5	46	15	12	12	50	37	1	6.25	7	M5	61.5	84.5
VCNL 040	VCNL040	Request access	40	38	59	20	16	16	63	46	1.5	6.25	8	M5	71.5	93.5
VCNL 050	VCNL050	Request access	50	46.5	69	20	16	16	75	56	1.6	8.25	8	M6	78.5	101.5
VCNL 063	VCNL063	Request access	63	56.5	84	25	20	20	90	69	1.6	8.25	12	M6	84.5	110.5
VCNL 080	VCNL080	Request access	80	72	102	25	20	20	110	87	1.6	10.25	12	M8	94.5	125.5
VCNL 100	VCNL100	Request access	100	89	125	30	25	25	132	107	2	10.25	15	M8	107	133
VCNL 125	VCNL125	Request access	125	110	155	32	25	25	160	133.5	2	12.25	15	M10	126	163
VCNL 160	VCNL160	Request access	160	140	190	40	32	32	200	171	2.5	16.25	18	M12	149	191
VCNL 200	VCNL200	Request access	200	175	240	40	32	32	250	211	2.5	16.25	18	M12	164	206
