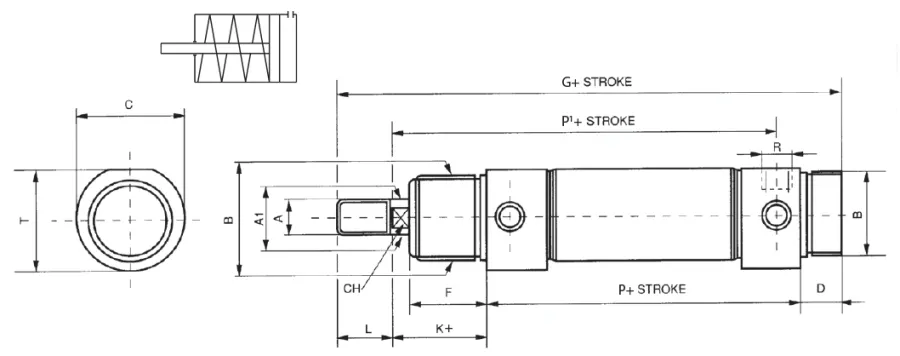

SINGLE-ACTING MAGNETIC

Code	USA Ref	3D Drawings	Ø mm	Stroke mm	A	A1 mm	B	T mm	C mm	D mm	F mm	G mm	K mm	L mm	P mm	P1 mm	CH mm	R
AB 032 0010	AB0320010	Request access	32	10	M10X1,25	12	M30X1,5	36.5	38	14	30	168	38	20	96	125	10	1/8" GAS
AB 032 0025	AB0320025	Request access	32	25	M10X1,25	12	M30X1,5	36.5	38	14	30	168	38	20	96	125	10	1/8" GAS
AB 032 0050	AB0320050	Request access	32	50	M10X1,25	12	M30X1,5	36.5	38	14	30	168	38	20	96	125	10	1/8" GAS
AB 040 0010	AB0400010	Request access	40	10	M12X1,25	16	M38X1,5	44	46	16	35	196	45	24	111	144	12	1/4" GAS
AB 040 0025	AB0400025	Request access	40	25	M12X1,25	16	M38X1,5	44	46	16	35	196	45	24	111	144	12	1/4" GAS
AB 040 0050	AB0400050	Request access	40	50	M12X1,25	16	M38X1,5	44	46	16	35	196	45	24	111	144	12	1/4" GAS
AB 050 0010	AB0500010	Request access	50	10	M16X1,5	20	M45X1,5	55	57	18	38	220	50	32	120	158	16	1/4" GAS
AB 050 0025	AB0500025	Request access	50	25	M16X1,5	20	M45X1,5	55	57	18	38	220	50	32	120	158	16	1/4" GAS
AB 050 0050	AB0500050	Request access	50	50	M16X1,5	20	M45X1,5	55	57	18	38	220	50	32	120	158	16	1/4" GAS
AB 063 0010	AB0630010	Request access	63	10	M16X1,5	20	M45X1,5	67,5	70	18	38	224	50	32	124	161	16	3/8" GAS
AB 063 0025	AB0630025	Request access	63	25	M16X1,5	20	M45X1,5	67,5	70	18	38	224	50	32	124	161	16	3/8" GAS
AB 063 0050	AB0630050	Request access	63	50	M16X1,5	20	M45X1,5	67,5	70	18	38	224	50	32	124	161	16	3/8" GAS
