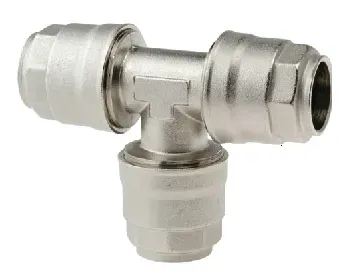

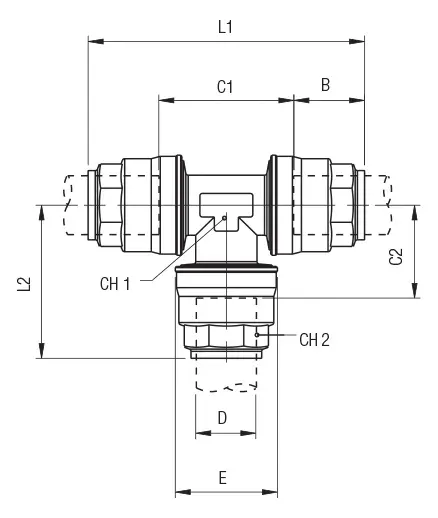

TEE CONNECTOR
| Code | USA Ref | 3D Drawings | D | E | B | C1 | C2 | L1 | L2 | CH1 | CH2 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90230 00 001 | 90230-20 | Request access | 20 | 1.358 (34.5) | 1.240 (31.5) | 1.358 (34.5) | 0.886 (22.5) | 3.858 (98) | 2.146 (54.5) | 0.827 (21) | 1.181 (30) | 3 | ||
| 90230 00 002 | 90230-25 | Request access | 25 | 1.673 (42.5) | 1.516 (38.5) | 1.476 (37.5) | 1.024 (26) | 4.469 (113.5) | 2.559 (65) | 1.024 (26) | 1.378 (35) | 3 | ||
| 90230 00 003 | 90230-32 | Request access | 32 | 2.047 (52) | 1.811 (46) | 1.831 (46.5) | 1.240 (31.5) | 5.453 (138.5) | 3.031 (77) | 1.339 (34) | 1.772 (45) | 2 | ||
| 90230 00 004 | 90230-40 | Request access | 40 | 2.480 (63) | 2.047 (52) | 2.185 (55.5) | 1.496 (38) | 6.280 (159.5) | 3.543 (90) | 1.614 (41) | 2.165 (55) | 1 | ||
| 90230 00 006 | 90230-63 | Request access | 63 | 3.622 (92) | 2.323 (59) | 3.425 (87) | 2.185 (55.5) | 8.091 (205.5) | 4.508 (114.5) | 2.559 (65) | 2.756 (70) | 1 | ||
| 90230 00 005 A | 90230A-50 | Request access | 50 | 3.307 (84) | 2.303 (58.5) | 4.961 (126) | 3.110 (79) | 9.567 (243) | 4.803 (122) | 1.594 (40.5) | 2.835 (72) | Aluminium | 1 | |
| 90230 00 006 A | 90230A-63 | Request access | 63 | 3.701 (94) | 2.264 (57.5) | 4.370 (111) | 2.185 (55.5) | 8.898 (226) | 4.449 (113) | 2.874 (73) | 2.953 (75) | Aluminium | 1 |
