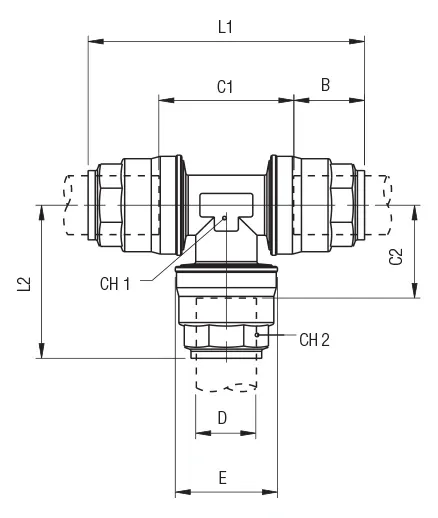

| Code | 3D Drawings | D | E | B | C1 | C2 | L1 | L2 | CH1 | CH2 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90230 00 001 | Request access | 20 | 34,5 | 31.5 | 34.5 | 22.5 | 98 | 54.5 | 21 | 30 | 3 | ||
| 90230 00 002 | Request access | 25 | 42,5 | 38.5 | 37.5 | 26 | 113.5 | 65 | 26 | 35 | 3 | ||
| 90230 00 003 | Request access | 32 | 52 | 46 | 46.5 | 31.5 | 138.5 | 77 | 34 | 45 | 2 | ||
| 90230 00 004 | Request access | 40 | 63 | 52 | 55.5 | 38 | 159.5 | 90 | 41 | 55 | 1 | ||
| 90230 00 004 A | Request access | 40 | 69 | 52 | 102.5 | 51.5 | 205 | 102.5 | 48 | 55 | Aluminium | 1 | |
| 90230 00 005 A | Request access | 50 | 84 | 58.5 | 126 | 79 | 243 | 122 | 59 | 68 | Aluminium | 1 | |
| 90230 00 006 A | Request access | 63 | 94 | 57.5 | 111 | 55.5 | 226 | 113 | 73 | 75 | Aluminium | 1 |
