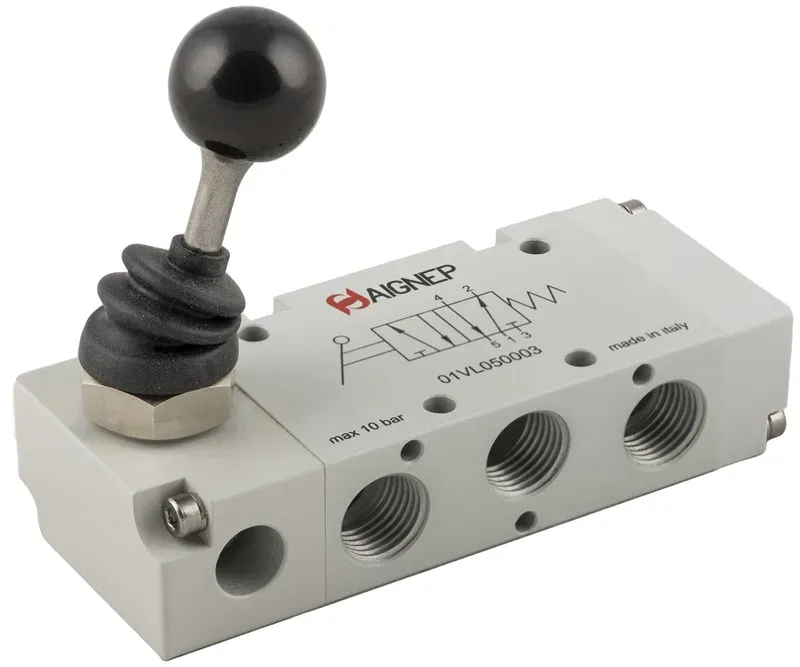

01VL NPTF
90° LEVER OPERATED VALVES - NPTF
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Ways | Reactuation | Function | Size | Pack. | |
|---|---|---|---|---|---|---|---|

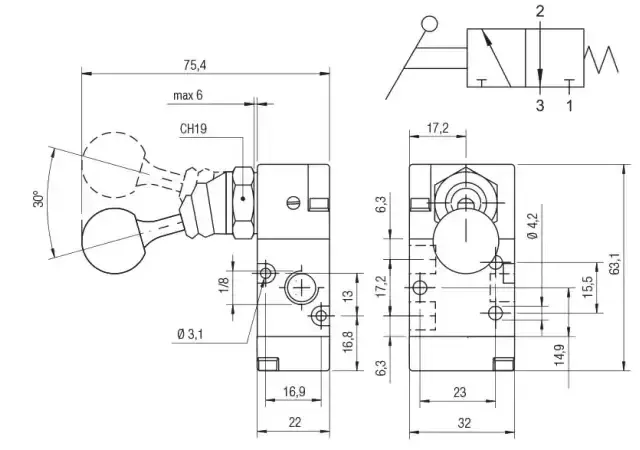

| 01V L0 3 NC 02 N | Download | Show image | 3/2 | LEVER OPERATED - SPRING RETURN | NC | 1/8 NPTF | 1 |

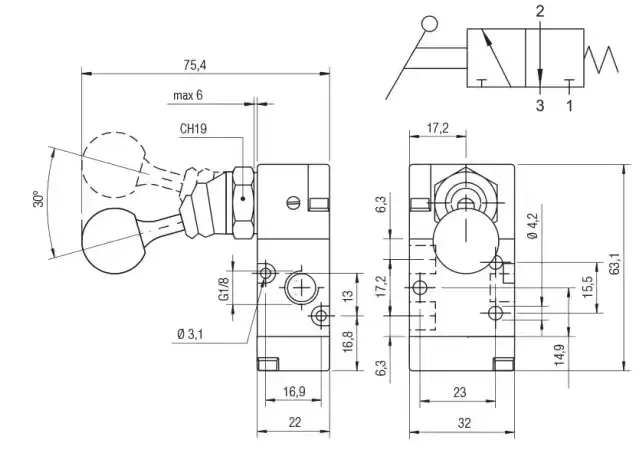

| 01V L0 3 NC 03 N | Download | Show image | 3/2 | LEVER OPERATED - SPRING RETURN | NC | 1/4 NPTF | 1 |

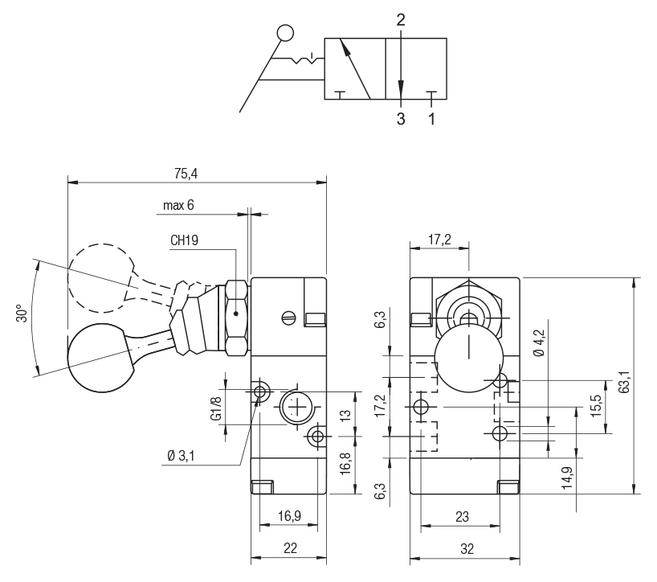

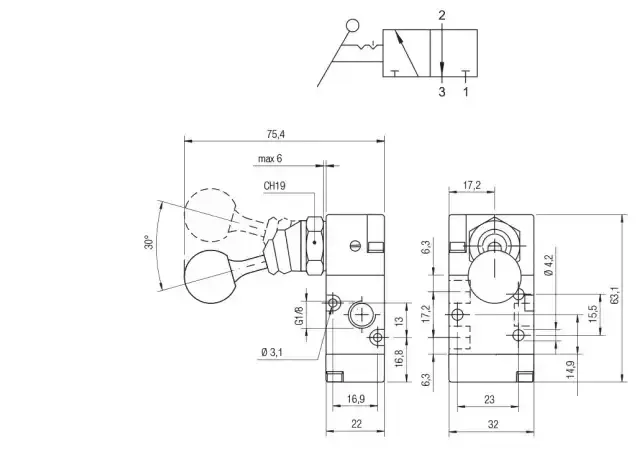

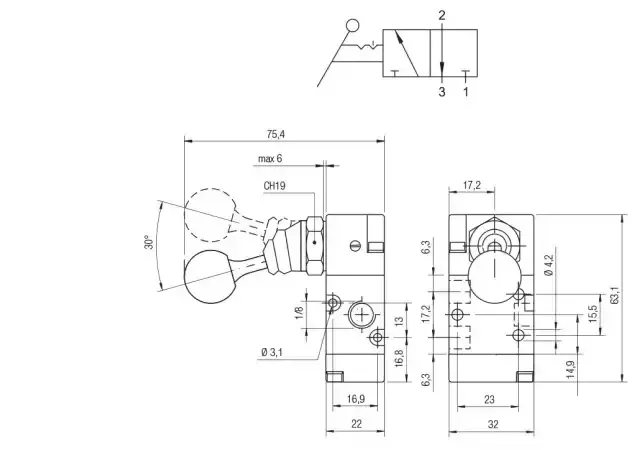

| 01V L1 3 00 02 N | Download | Show image | 3/2 | LEVER OPERATED - PUSH/PULL | 1/8 NPTF | 1 | |

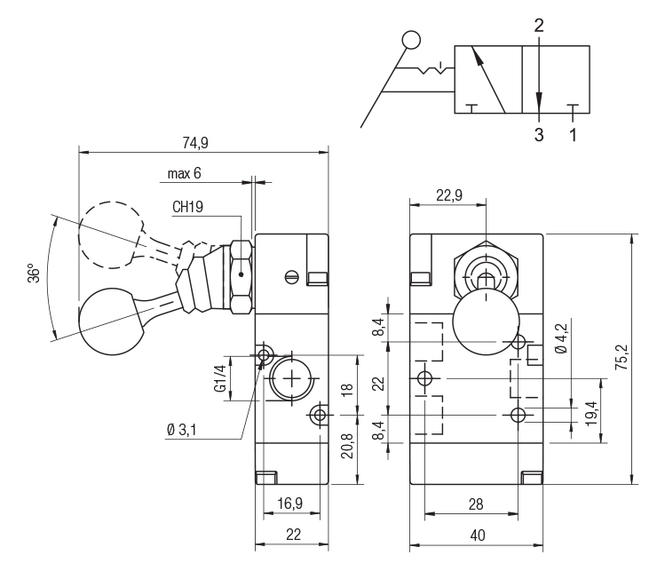

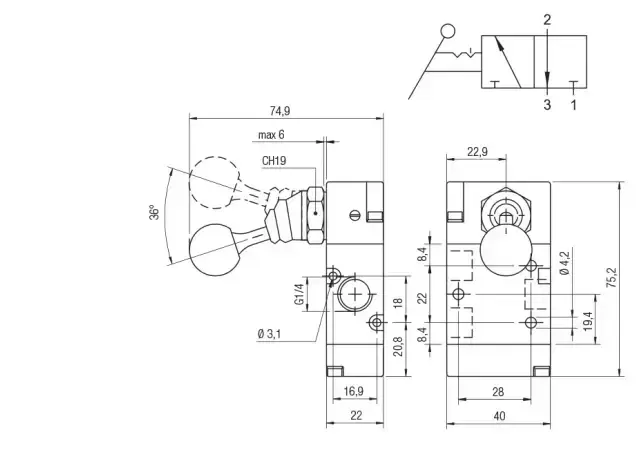

| 01V L1 3 00 03 N | Download | Show image | 3/2 | LEVER OPERATED - PUSH/PULL | 1/4 NPTF | 1 | |

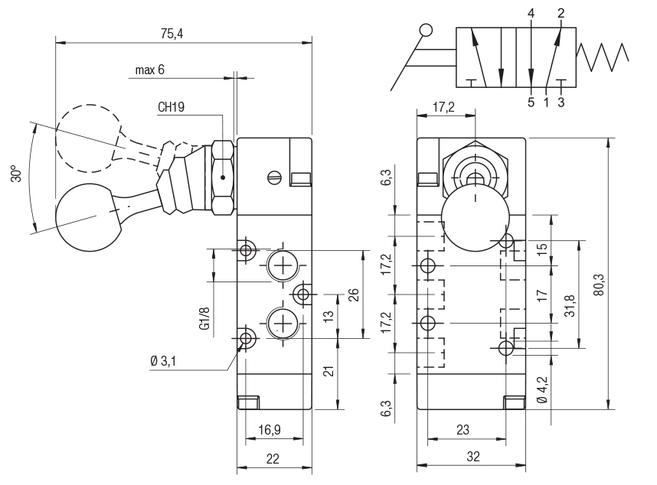

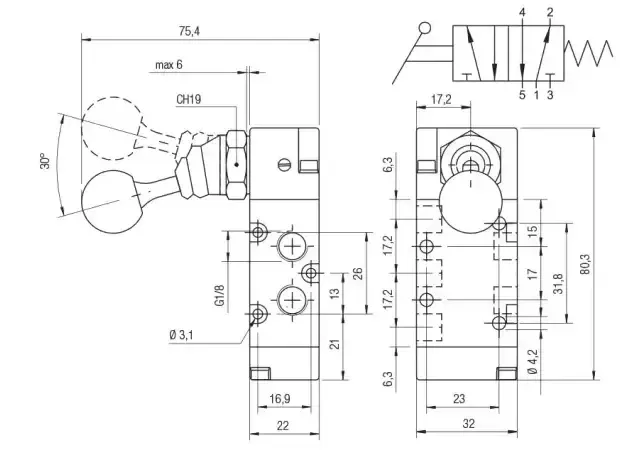

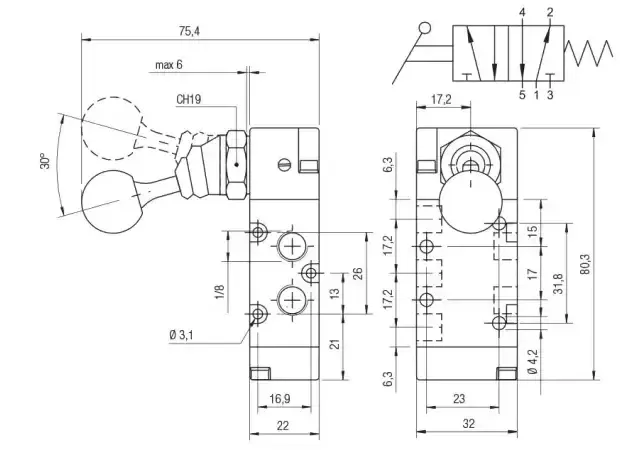

| 01V L0 5 00 02 N | Download | Show image | 5/2 | LEVER OPERATED - SPRING RETURN | 1/8 NPTF | 1 | |

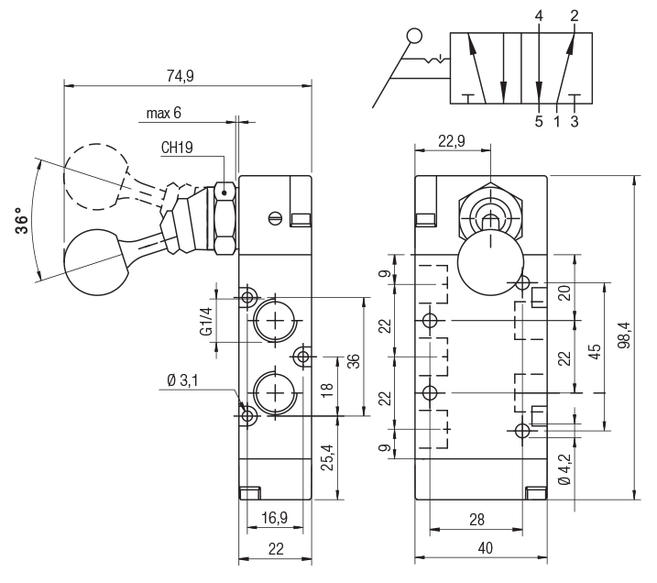

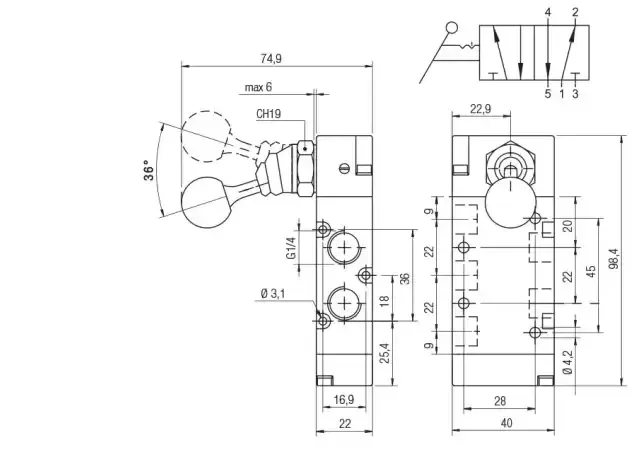

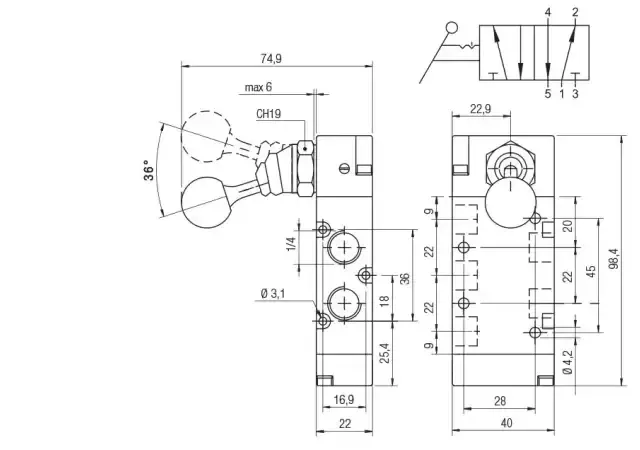

| 01V L0 5 00 03 N | Download | Show image | 5/2 | LEVER OPERATED - SPRING RETURN | 1/4 NPTF | 1 | |

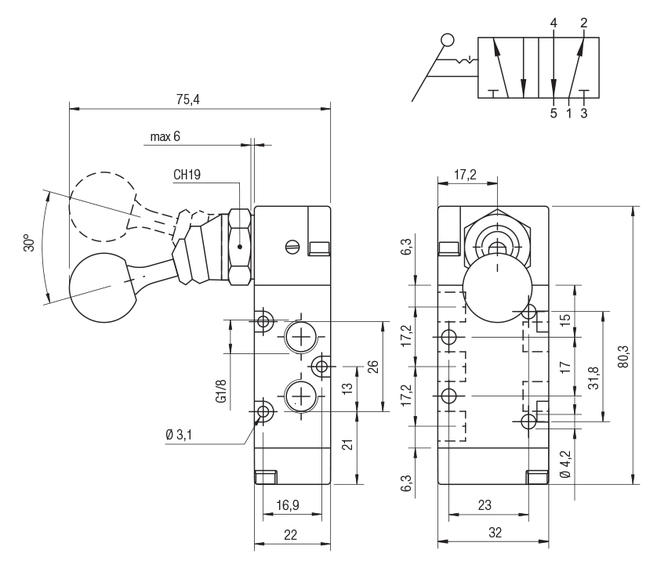

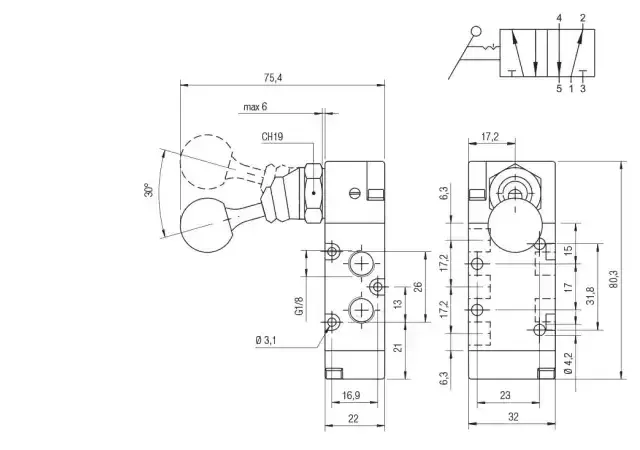

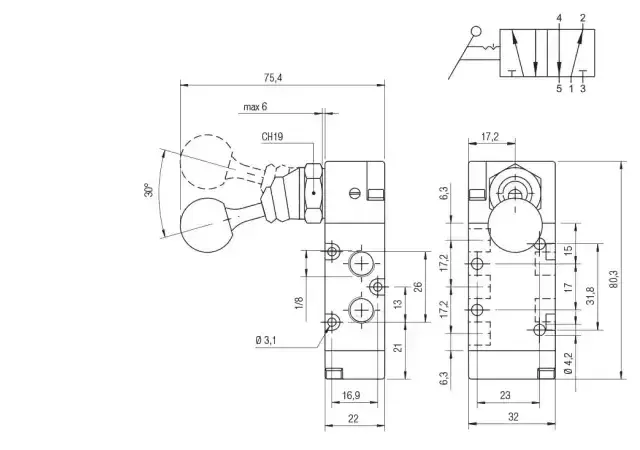

| 01V L1 5 00 02 N | Download | Show image | 5/2 | LEVER OPERATED - PUSH/PULL | 1/8 NPTF | 1 | |

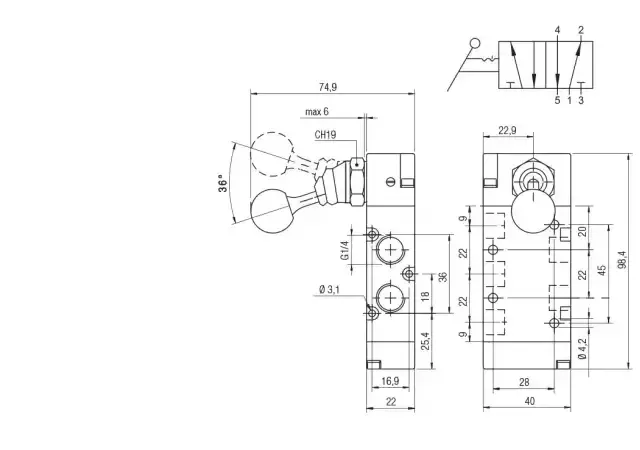

| 01V L1 5 00 03 N | Download | Show image | 5/2 | LEVER OPERATED - PUSH/PULL | 1/4 NPTF | 1 | |

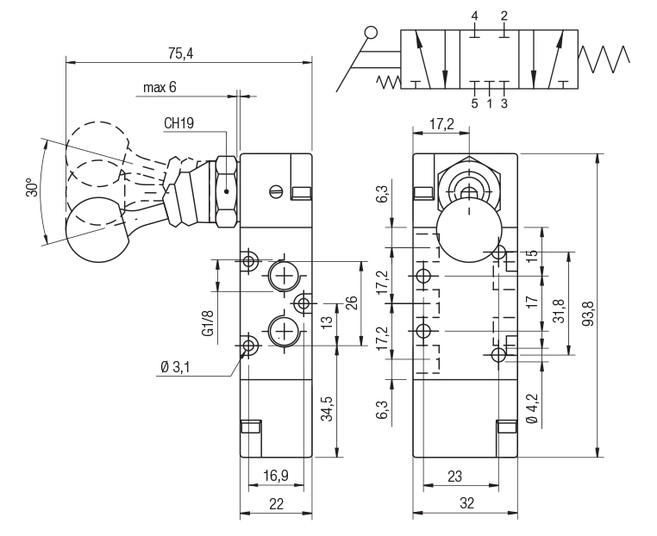

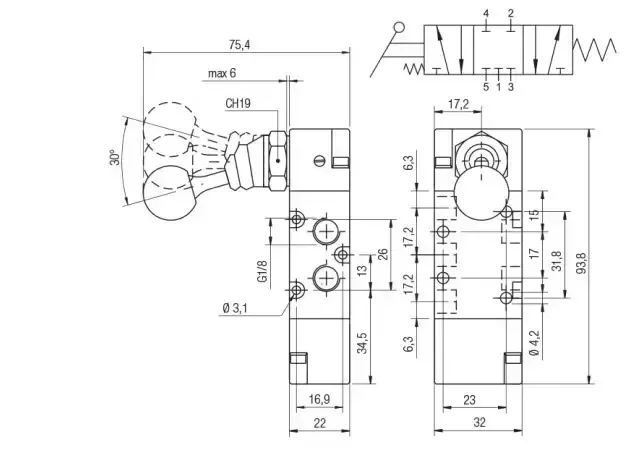

| 01V L0 7 CC 02 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | CC | 1/8 NPTF | 1 |

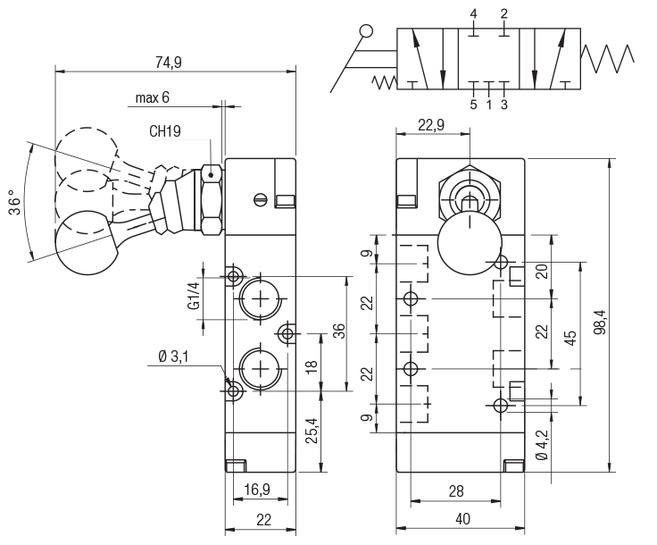

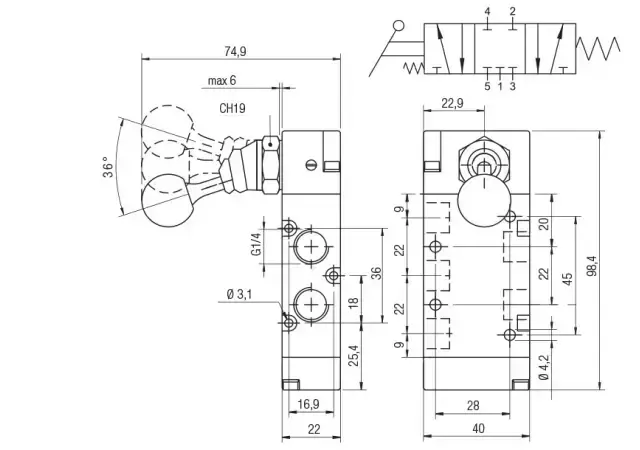

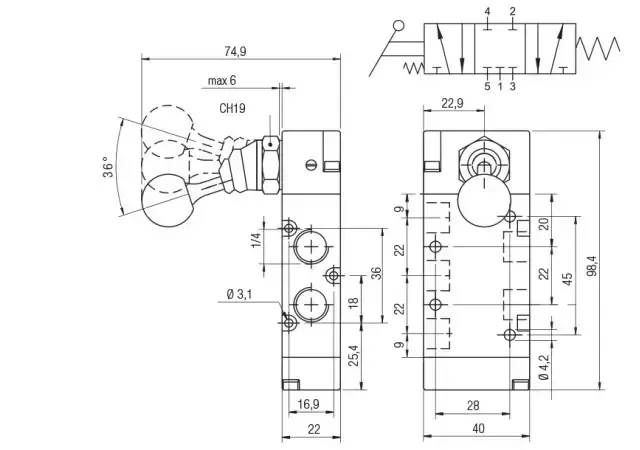

| 01V L0 7 CC 03 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | CC | 1/4 NPTF | 1 |
| 01V L0 7 OC 02 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | OC | 1/8 NPTF | 1 |

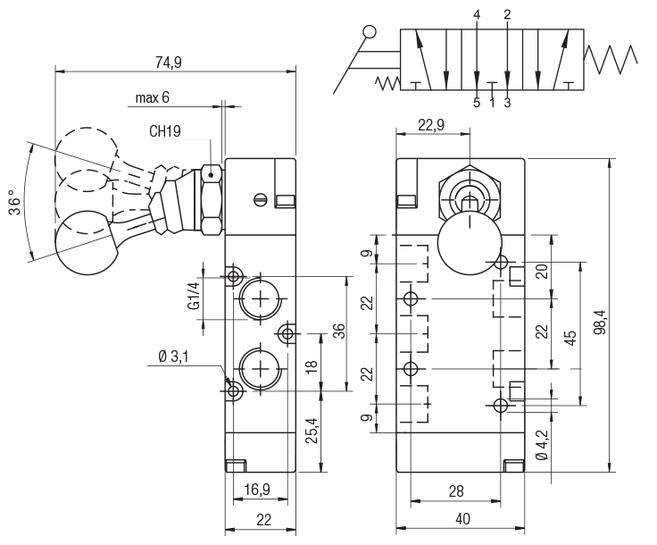

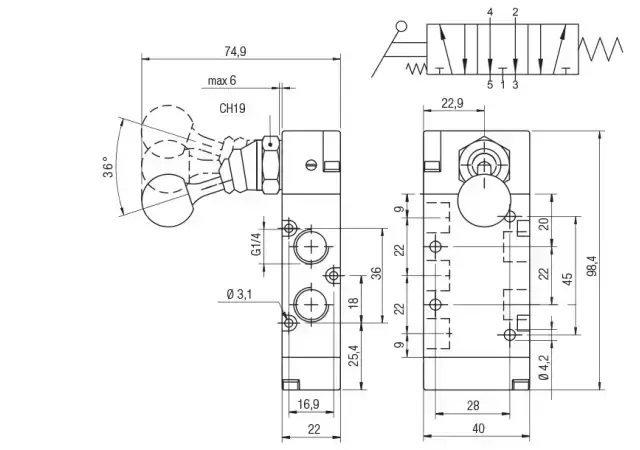

| 01V L0 7 OC 03 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | OC | 1/4 NPTF | 1 |

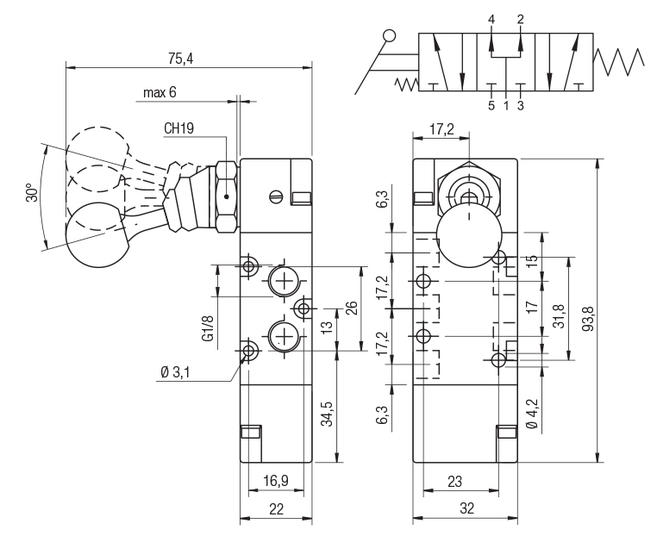

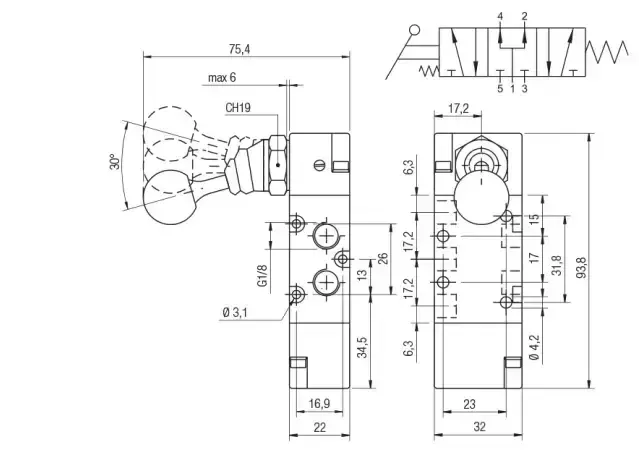

| 01V L0 7 PC 02 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | PC | 1/8 NPTF | 1 |

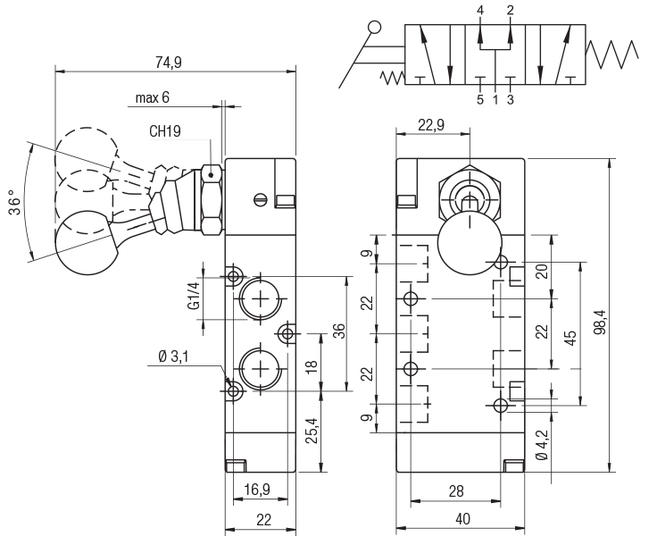

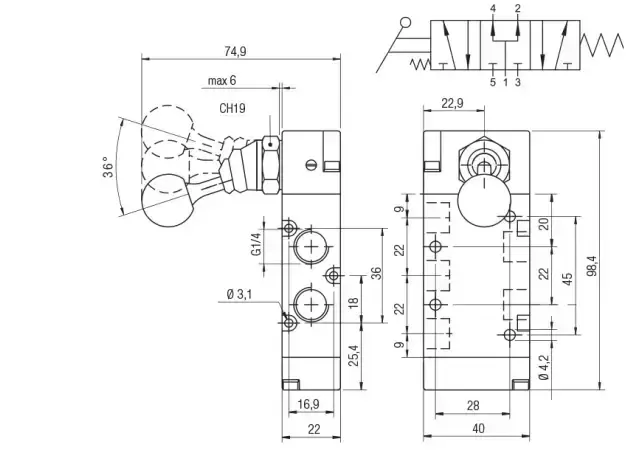

| 01V L0 7 PC 03 N | Download | Show image | 5/3 | LEVER OPERATED - SPRING CENTERED | PC | 1/4 NPTF | 1 |

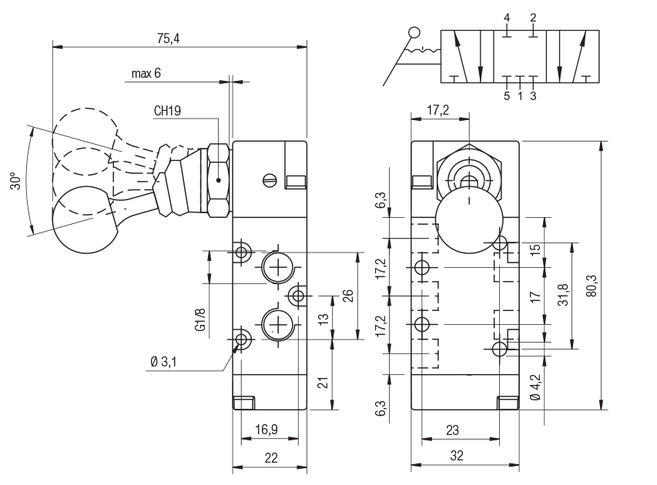

| 01V L2 7 CC 02 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | CC | 1/8 NPTF | 1 |

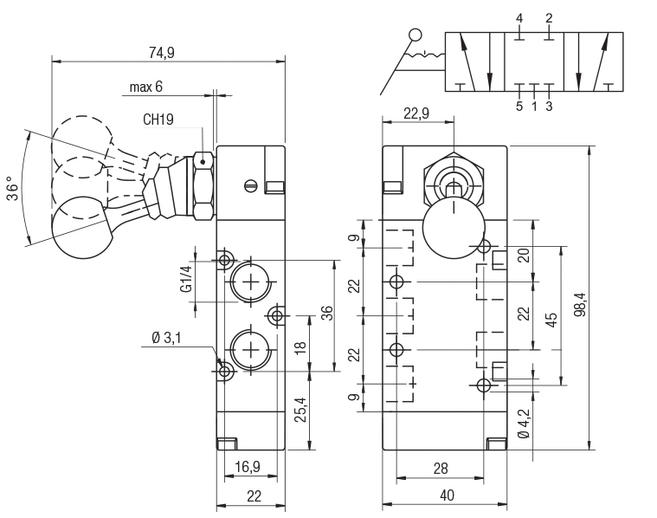

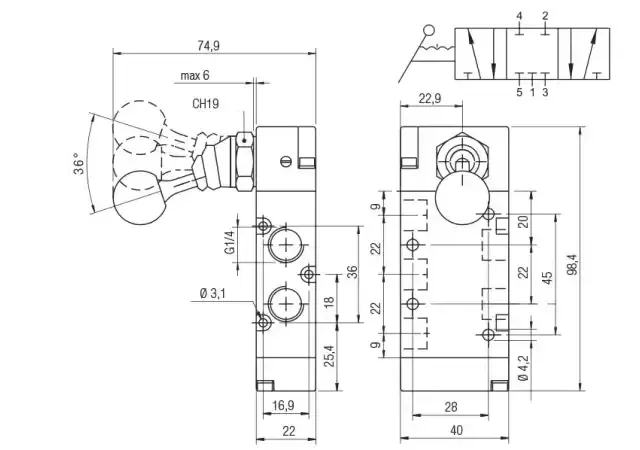

| 01V L2 7 CC 03 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | CC | 1/4 NPTF | 1 |

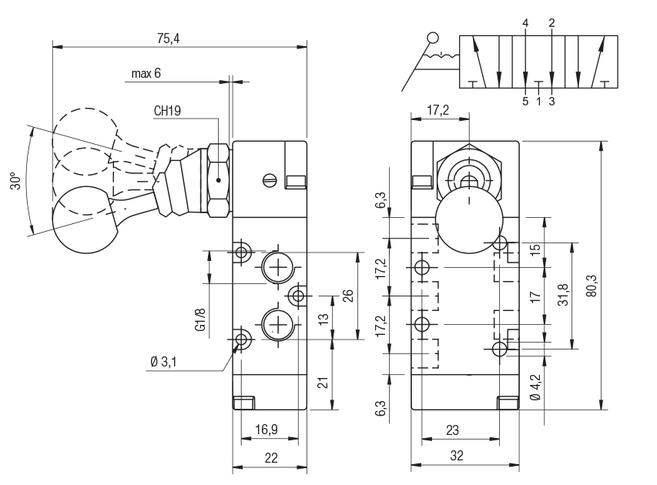

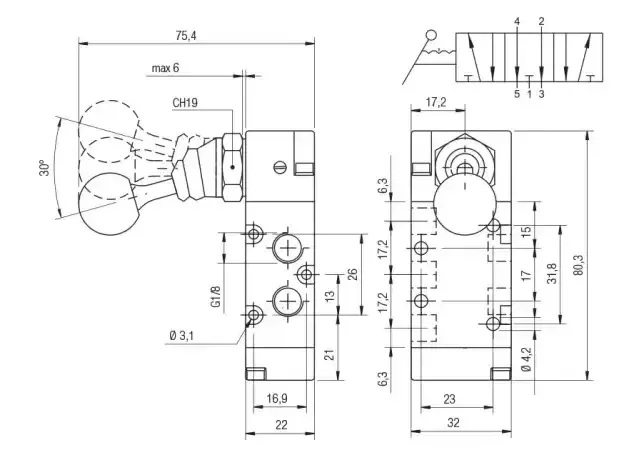

| 01V L2 7 OC 02 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | OC | 1/8 NPTF | 1 |

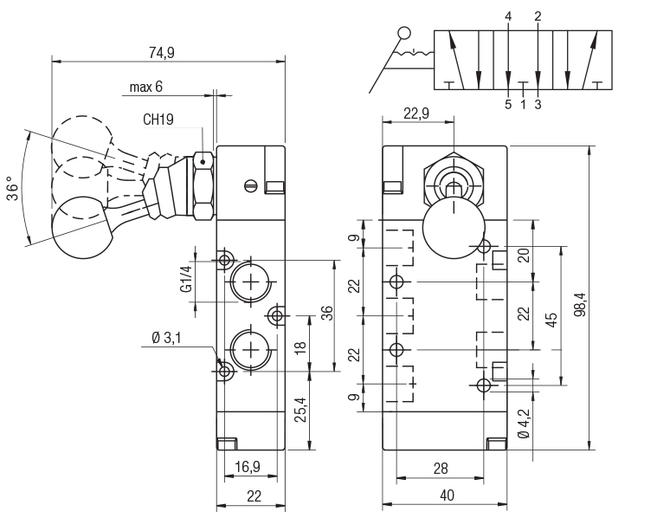

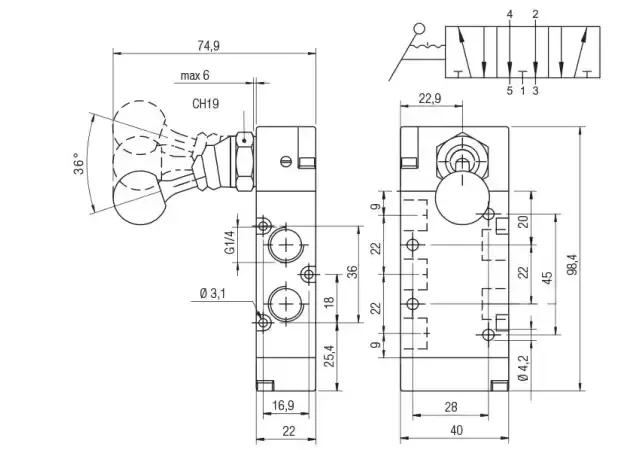

| 01V L2 7 OC 03 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | OC | 1/4 NPTF | 1 |

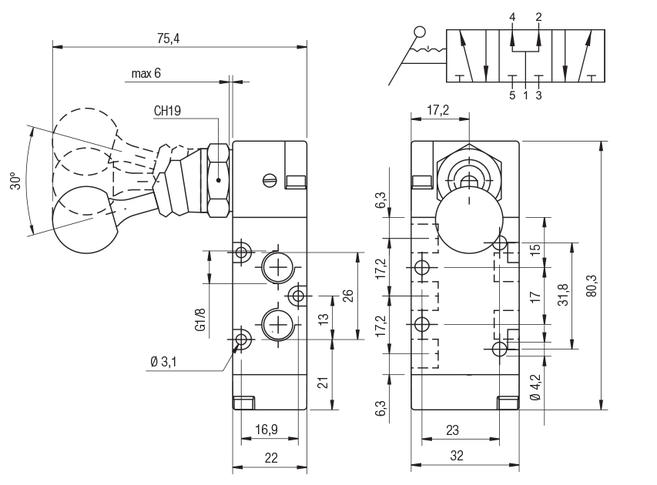

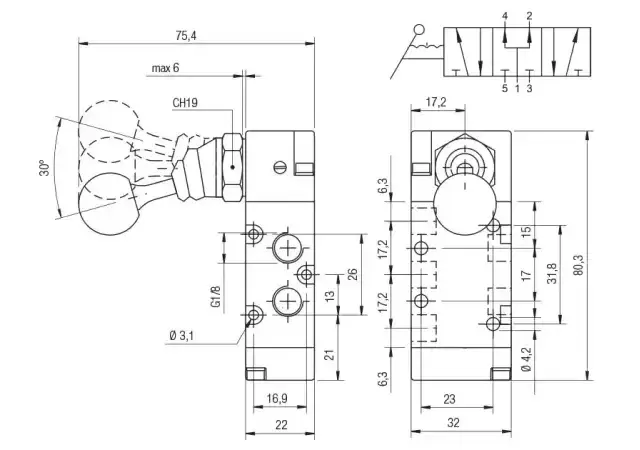

| 01V L2 7 PC 02 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | PC | 1/8 NPTF | 1 |

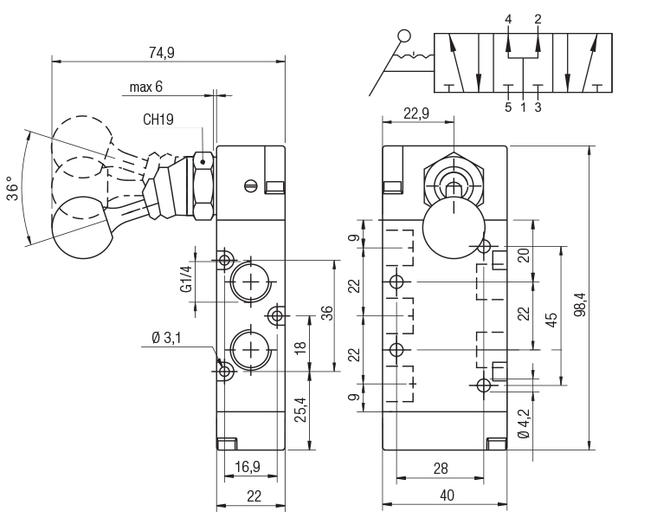

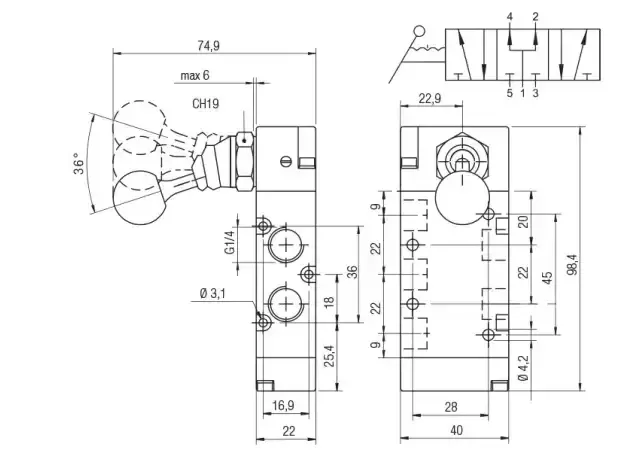

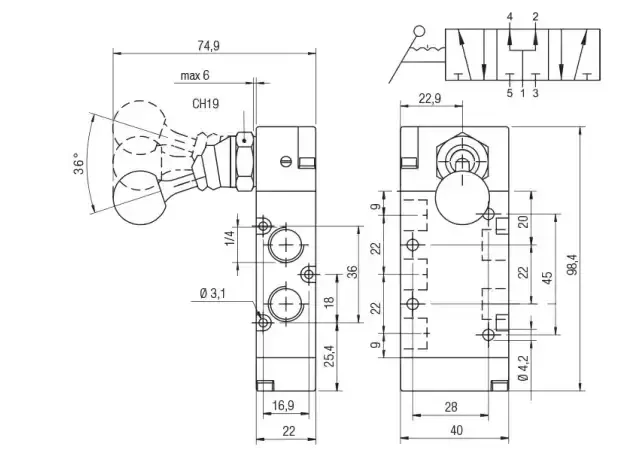

| 01V L2 7 PC 03 N | Download | Show image | 5/3 | LEVER OPERATED - PUSH/PULL | PC | 1/4 NPTF | 1 |
