Push-In Fittings>

87-88 – INCH Series

>87000
87000

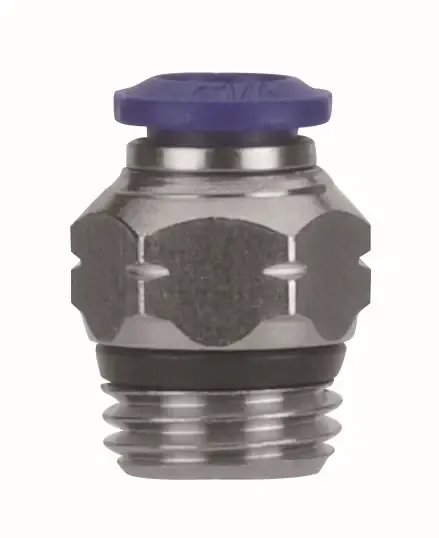

STRAIGHT MALE - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
STRAIGHT MALE - SWIFTFIT
STRAIGHT MALE - SWIFTFIT

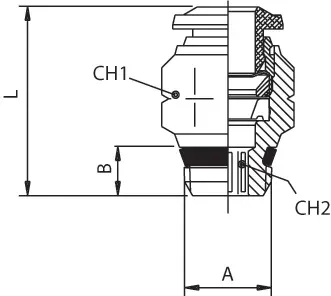

Code USA REF  Draw Tube A B L CH1 CH2 Bag
87000 00 001     87000-02-02 Download 1/8 1/8 0.217 (5.5) .650 (16,5) 0.433 (11) 0.079 (2) 10
87000 00 002     87000-02 04 Download 1/8 1/4 0.276 (7) .728 (18,5) 0.551 (14) 0.079 (2) 10
87000 00 003     87000-53-02 Download 5/32 (4) 1/8 0.197 (5) .708 (18) 0.433 (11) 0.118 (3) 10
87000 00 004     87000-53-04 Download 5/32 (4) 1/4 0.276 (7) .767 (19,5) 0.551 (14) 0.118 (3) 10
87000 00 005     87000-04-02 Download 1/4 1/8 0.197 (5) .866 (22) 0.512 (13) 0.157 (4) 10
87000 00 006     87000-04-04 Download 1/4 1/4 0.276 (7) .826 (21) 0.551 (14) 0.157 (4) 10
87000 00 007     87000-04-06 Download 1/4 3/8 0.295 (7.5) .826 (21) 0.669 (17) 0.157 (4) 10
87000 00 008     87000-05-02 Download 5/16 (8) 1/8 0.197 (5) .964 (24,5) 0.551 (14) 0.197 (5) 10
87000 00 009     87000-05-04 Download 5/16 (8) 1/4 0.276 (7) .866 (22) 0.551 (14) 0.236 (6) 10
87000 00 010     87000-05-06 Download 5/16 (8) 3/8 0.295 (7.5) .905 (23) 0.669 (17) 0.236 (6) 10
87000 00 011     87000-06-02 Download 3/8 1/8 0.197 (5) 1.122 (28,5) 0.669 (17) 0.197 (5) 10
87000 00 012     87000-06-04 Download 3/8 1/4 0.276 (7) 1.122 (28,5) 0.669 (17) 0.236 (6) 10
87000 00 013     87000-06-06 Download 3/8 3/8 0.295 (7.5) 1.043 (26,5) 0.669 (17) 0.236 (6) 10
87000 00 014     87000-06-08 Download 3/8 1/2 0.354 (9) 1.043 (26,5) 0.827 (21) 0.236 (6) 10
87000 00 015     87000-08-04 Download 1/2 1/8 0.197 (5) 1.299 (33) 0.787 (20) 0.197 (5) 10
87000 00 016     87000-08-06 Download 1/2 1/4 0.276 (7) 1.299 (33) 0.787 (20) 0.197 (5) 10
87000 00 017     87000-08-08 Download 1/2 3/8 0.295 (7.5) 1.259 (32) 0.787 (20) 0.354 (9) 10
87000 00 018     87000-08-02 Download 1/2 1/2 0.354 (9) 1.259 (32) 0.827 (21) 0.394 (10) 10
Code Draw Tube A B L CH1 CH2 Bag
87000 00 001 Download 1/8 1/8 0.217 (5.5) .650 (16,5) 0.433 (11) 0.079 (2) 10
87000 00 002 Download 1/8 1/4 0.276 (7) .728 (18,5) 0.551 (14) 0.079 (2) 10
87000 00 003 Download 5/32 (4) 1/8 0.197 (5) .708 (18) 0.433 (11) 0.118 (3) 10
87000 00 004 Download 5/32 (4) 1/4 0.276 (7) .767 (19,5) 0.551 (14) 0.118 (3) 10
87000 00 005 Download 1/4 1/8 0.197 (5) .866 (22) 0.512 (13) 0.157 (4) 10
87000 00 006 Download 1/4 1/4 0.276 (7) .826 (21) 0.551 (14) 0.157 (4) 10
87000 00 007 Download 1/4 3/8 0.295 (7.5) .826 (21) 0.669 (17) 0.157 (4) 10
87000 00 008 Download 5/16 (8) 1/8 0.197 (5) .964 (24,5) 0.551 (14) 0.197 (5) 10
87000 00 009 Download 5/16 (8) 1/4 0.276 (7) .866 (22) 0.551 (14) 0.236 (6) 10
87000 00 010 Download 5/16 (8) 3/8 0.295 (7.5) .905 (23) 0.669 (17) 0.236 (6) 10
87000 00 011 Download 3/8 1/8 0.197 (5) 1.122 (28,5) 0.669 (17) 0.197 (5) 10
87000 00 012 Download 3/8 1/4 0.276 (7) 1.122 (28,5) 0.669 (17) 0.236 (6) 10
87000 00 013 Download 3/8 3/8 0.295 (7.5) 1.043 (26,5) 0.669 (17) 0.236 (6) 10
87000 00 014 Download 3/8 1/2 0.354 (9) 1.043 (26,5) 0.827 (21) 0.236 (6) 10
87000 00 015 Download 1/2 1/8 0.197 (5) 1.299 (33) 0.787 (20) 0.197 (5) 10
87000 00 016 Download 1/2 1/4 0.276 (7) 1.299 (33) 0.787 (20) 0.197 (5) 10
87000 00 017 Download 1/2 3/8 0.295 (7.5) 1.259 (32) 0.787 (20) 0.354 (9) 10
87000 00 018 Download 1/2 1/2 0.354 (9) 1.259 (32) 0.827 (21) 0.394 (10) 10
