Push-In Fittings>

87-88 – INCH Series

>88000
88000

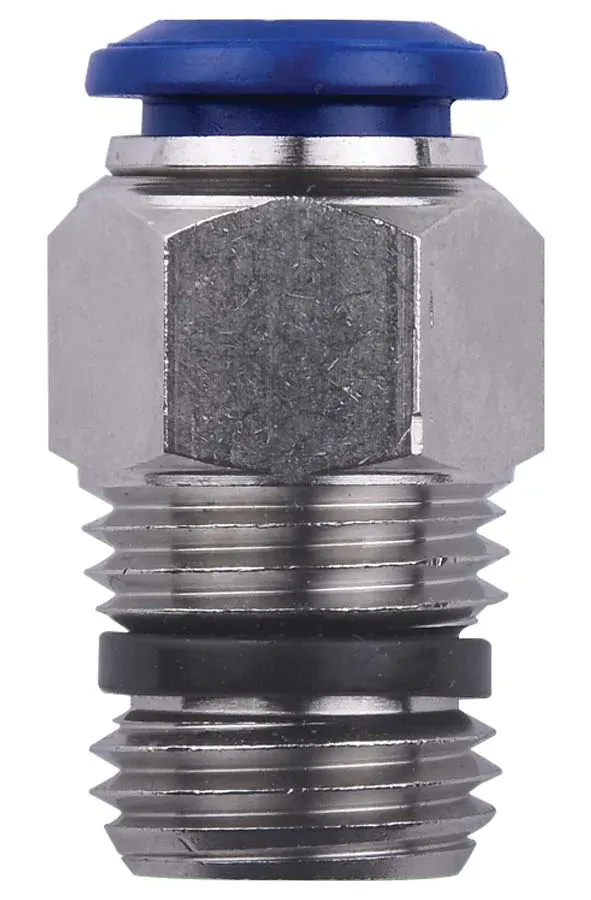

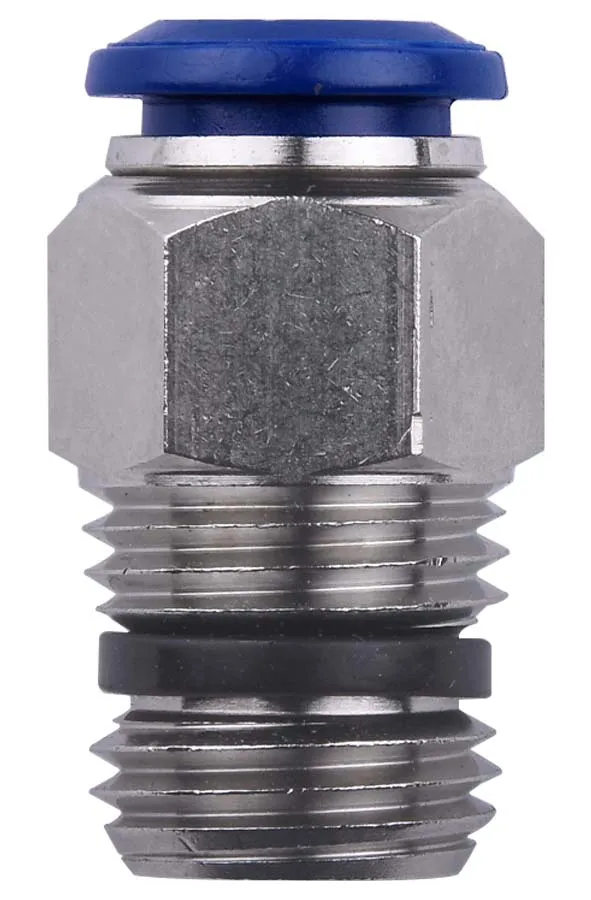

STRAIGHT MALE - NPTF

Technical characteristics / catalogAignep Scan Labels Certifications
STRAIGHT MALE - NPTF
STRAIGHT MALE - NPTF

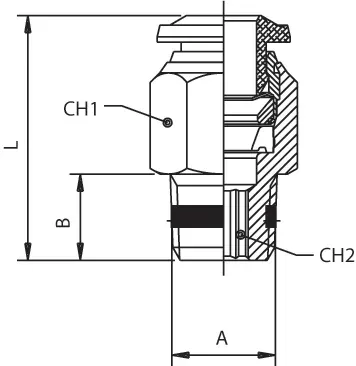

Code USA REF  Draw Tube A B L CH1 CH2 Bag
88000 00 001     88000-02-02 Download 1/8 1/8 0.335 (8.5) 0.768 (19.5) 0.433 (11) 0.079 (2) 10
88000 00 002     88000-02-04 Download 1/8 1/4 0.512 (13) 0.965 (24.5) 0.551 (14) 0.079 (2) 10
88000 00 003     88000-53-02 Download 5/32 (4) 1/8 0.335 (8.5) 0.827 (21) 0.433 (11) 0.118 (3) 10
88000 00 004     88000-53-04 Download 5/32 (4) 1/4 0.512 (13) 0.984 (25) 0.551 (14) 0.118 (3) 10
88000 00 005     88000-04-02 Download 1/4 1/8 0.335 (8.5) 1.024 (26) 0.512 (13) 0.157 (4) 10
88000 00 006     88000-04-04 Download 1/4 1/4 0.512 (13) 1.063 (27) 0.551 (14) 0.157 (4) 10
88000 00 007     88000-04-06 Download 1/4 3/8 0.512 (13) 1.142 (29) 0.709 (18) 0.157 (4) 10
88000 00 008     88000-05-02 Download 5/16 (8) 1/8 0.335 (8.5) 1.063 (27) 0.551 (14) 0.197 (5) 10
88000 00 009     88000-05-04 Download 5/16 (8) 1/4 0.512 (13) 1.083 (27.5) 0.551 (14) 0.236 (6) 10
88000 00 010     88000-05-06 Download 5/16 (8) 3/8 0.512 (13) 1.083 (27.5) 0.709 (18) 0.236 (6) 10
88000 00 011     88000-06-02 Download 3/8 1/8 0.335 (8.5) 1.260 (32) 0.669 (17) 0.197 (5) 10
88000 00 012     88000-06-04 Download 3/8 1/4 0.512 (13) 1.319 (33.5) 0.669 (17) 0.276 (7) 10
88000 00 013     88000-06-06 Download 3/8 3/8 0.512 (13) 1.319 (33.5) 0.709 (18) 0.276 (7) 10
88000 00 014     88000-06-08 Download 3/8 1/2 0.669 (17) 1.319 (33.5) 0.866 (22) 0.276 (7) 10
88000 00 015     88000-08-04 Download 1/2 1/4 0.512 (13) 1.535 (39) 0.787 (20) 0.197 (5) 10
88000 00 016     88000-08-06 Download 1/2 3/8 0.512 (13) 1.417 (36) 0.787 (20) 0.354 (9) 10
88000 00 017     88000-08-08 Download 1/2 1/2 0.669 (17) 1.575 (40) 0.866 (22) 0.394 (10) 10
Code Draw Tube A B L CH1 CH2 Bag
88000 00 001 Download 1/8 1/8 0.335 (8.5) 0.768 (19.5) 0.433 (11) 0.079 (2) 10
88000 00 002 Download 1/8 1/4 0.512 (13) 0.965 (24.5) 0.551 (14) 0.079 (2) 10
88000 00 003 Download 5/32 (4) 1/8 0.335 (8.5) 0.827 (21) 0.433 (11) 0.118 (3) 10
88000 00 004 Download 5/32 (4) 1/4 0.512 (13) 0.984 (25) 0.551 (14) 0.118 (3) 10
88000 00 005 Download 1/4 1/8 0.335 (8.5) 1.024 (26) 0.512 (13) 0.157 (4) 10
88000 00 006 Download 1/4 1/4 0.512 (13) 1.063 (27) 0.551 (14) 0.157 (4) 10
88000 00 007 Download 1/4 3/8 0.512 (13) 1.142 (29) 0.709 (18) 0.157 (4) 10
88000 00 008 Download 5/16 (8) 1/8 0.335 (8.5) 1.063 (27) 0.551 (14) 0.197 (5) 10
88000 00 009 Download 5/16 (8) 1/4 0.512 (13) 1.083 (27.5) 0.551 (14) 0.236 (6) 10
88000 00 010 Download 5/16 (8) 3/8 0.512 (13) 1.083 (27.5) 0.709 (18) 0.236 (6) 10
88000 00 011 Download 3/8 1/8 0.335 (8.5) 1.260 (32) 0.669 (17) 0.197 (5) 10
88000 00 012 Download 3/8 1/4 0.512 (13) 1.319 (33.5) 0.669 (17) 0.276 (7) 10
88000 00 013 Download 3/8 3/8 0.512 (13) 1.319 (33.5) 0.709 (18) 0.276 (7) 10
88000 00 014 Download 3/8 1/2 0.669 (17) 1.319 (33.5) 0.866 (22) 0.276 (7) 10
88000 00 015 Download 1/2 1/4 0.512 (13) 1.535 (39) 0.787 (20) 0.197 (5) 10
88000 00 016 Download 1/2 3/8 0.512 (13) 1.417 (36) 0.787 (20) 0.354 (9) 10
88000 00 017 Download 1/2 1/2 0.669 (17) 1.575 (40) 0.866 (22) 0.394 (10) 10
