Push-In Fittings>

87-88 – INCH Series

>88105
88105

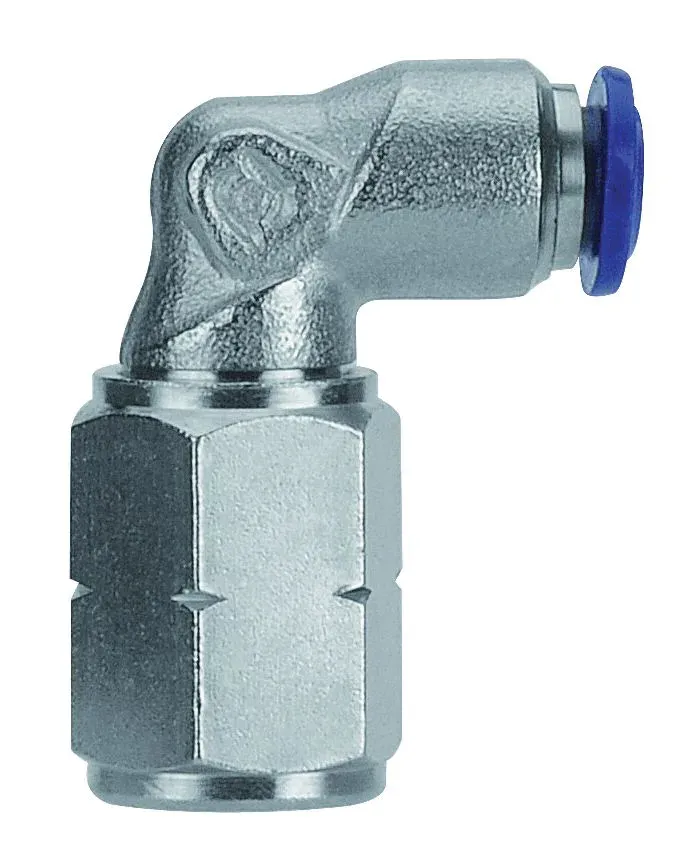

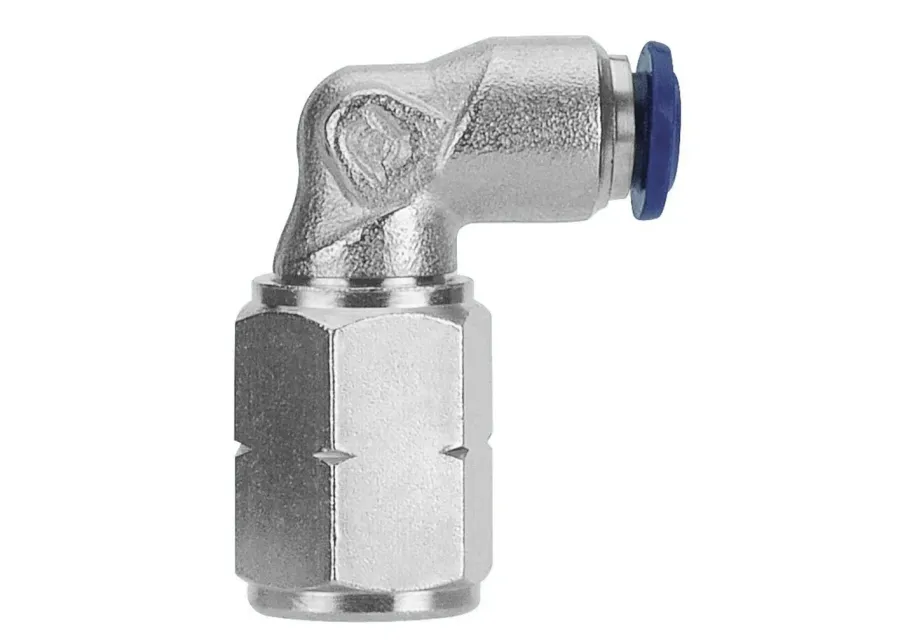

FEMALE ELBOW - NPTF

Technical characteristics / catalogAignep Scan Labels Certifications
FEMALE ELBOW - NPTF
FEMALE ELBOW - NPTF

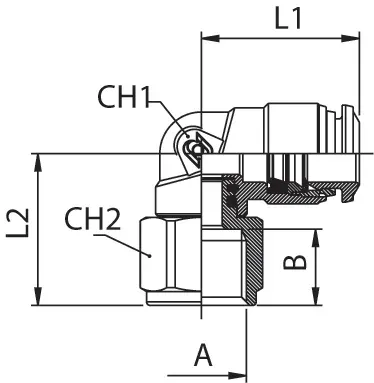

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 Bag
88105 00 001     88105-53-02 Download 5/32 (4) 1/8 0.374 (9.5) 0.669 (17) 0.984 (25) 0.354 (9) 0.512 (13) 10
88105 00 002     88105-53-04 Download 5/32 (4) 1/4 0.531 (13.5) 0.669 (17) 1.240 (31.5) 0.354 (9) 0.630 (16) 10
88105 00 003     88105-04-02 Download 1/4 1/8 0.374 (9.5) 0.846 (21.5) 1.063 (27) 0.433 (11) 0.512 (13) 10
88105 00 004     88105-04-04 Download 1/4 1/4 0.531 (13.5) 0.827 (21) 1.280 (32.5) 0.433 (11) 0.630 (16) 10
88105 00 005     88105-06-02 Download 3/8 1/8 0.374 (9.5) 1.063 (27) 1.220 (31) 0.512 (13) 0.512 (13) 10
88105 00 006     88105-06-04 Download 3/8 1/4 0.531 (13.5) 1.063 (27) 1.398 (35.5) 0.630 (16) 0.630 (16) 10
Code Draw Tube A B L1 L2 CH1 CH2 Bag
88105 00 001 Download 5/32 (4) 1/8 0.374 (9.5) 0.669 (17) 0.984 (25) 0.354 (9) 0.512 (13) 10
88105 00 002 Download 5/32 (4) 1/4 0.531 (13.5) 0.669 (17) 1.240 (31.5) 0.354 (9) 0.630 (16) 10
88105 00 003 Download 1/4 1/8 0.374 (9.5) 0.846 (21.5) 1.063 (27) 0.433 (11) 0.512 (13) 10
88105 00 004 Download 1/4 1/4 0.531 (13.5) 0.827 (21) 1.280 (32.5) 0.433 (11) 0.630 (16) 10
88105 00 005 Download 3/8 1/8 0.374 (9.5) 1.063 (27) 1.220 (31) 0.512 (13) 0.512 (13) 10
88105 00 006 Download 3/8 1/4 0.531 (13.5) 1.063 (27) 1.398 (35.5) 0.630 (16) 0.630 (16) 10
