Push-In Fittings>

85000 - INCH Series

>85170
85170

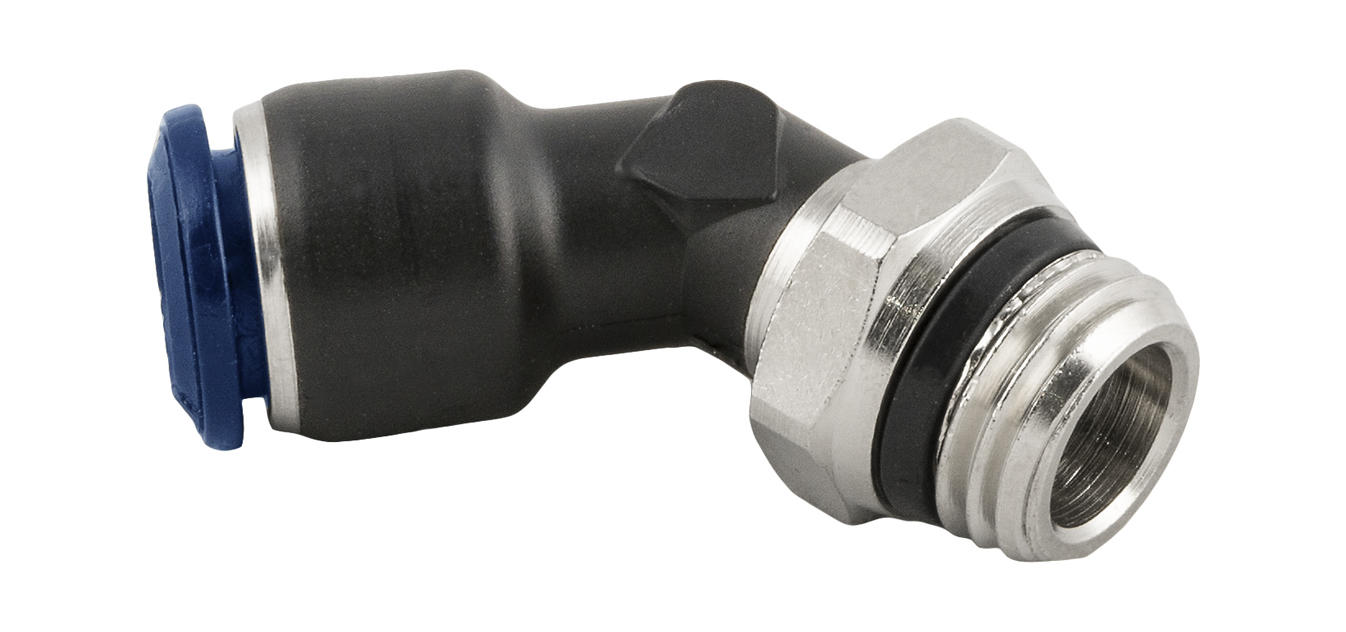

45° SWIVEL ELBOW - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
45° SWIVEL ELBOW - SWIFTFIT
45° SWIVEL ELBOW - SWIFTFIT

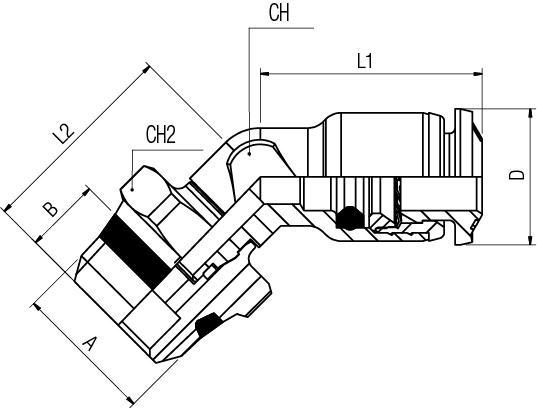

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 D Bag
85170 00 001     85170-53-02 Download 5/32 (4) 1/8 0.217 (5.5) 0.492 (12.5) 0.650 (16.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
85170 00 006     85170-04-02 Download 1/4 1/8 0.217 (5.5) 0.807 (20.5) 0.689 (17.5) 0.354 (9) 0.512 (13) 0.472 (12) 10
85170 00 007     85170-04-04 Download 1/4 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.472 (12) 10
85170 00 008     85170-05-02 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.728 (18.5) 0.394 (10) 0.512 (13) 0.551 (14) 10
85170 00 009     85170-05-04 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.787 (20) 0.394 (10) 0.591 (15) 0.551 (14) 10
85170 00 010     85170-05-06 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.807 (20.5) 0.394 (10) 0.669 (17) 0.551 (14) 10
85170 00 014     85170-06-04 Download 3/8 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
85170 00 015     85170-06-06 Download 3/8 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
85170 00 016     85170-06-08 Download 3/8 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
85170 00 017     85170-08-04 Download 1/2 1/4 0.276 (7) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
85170 00 018     85170-08-06 Download 1/2 3/8 0.295 (7.5) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
85170 00 019     85170-08-08 Download 1/2 1/2 0.354 (9) 1.181 (30) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
Code Draw Tube A B L1 L2 CH1 CH2 D Bag
85170 00 001 Download 5/32 (4) 1/8 0.217 (5.5) 0.492 (12.5) 0.650 (16.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
85170 00 006 Download 1/4 1/8 0.217 (5.5) 0.807 (20.5) 0.689 (17.5) 0.354 (9) 0.512 (13) 0.472 (12) 10
85170 00 007 Download 1/4 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.472 (12) 10
85170 00 008 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.728 (18.5) 0.394 (10) 0.512 (13) 0.551 (14) 10
85170 00 009 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.787 (20) 0.394 (10) 0.591 (15) 0.551 (14) 10
85170 00 010 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.807 (20.5) 0.394 (10) 0.669 (17) 0.551 (14) 10
85170 00 014 Download 3/8 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
85170 00 015 Download 3/8 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
85170 00 016 Download 3/8 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
85170 00 017 Download 1/2 1/4 0.276 (7) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
85170 00 018 Download 1/2 3/8 0.295 (7.5) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
85170 00 019 Download 1/2 1/2 0.354 (9) 1.181 (30) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
