SWIVEL RUN TEE - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
SWIVEL RUN TEE - SWIFTFIT
SWIVEL RUN TEE - SWIFTFIT

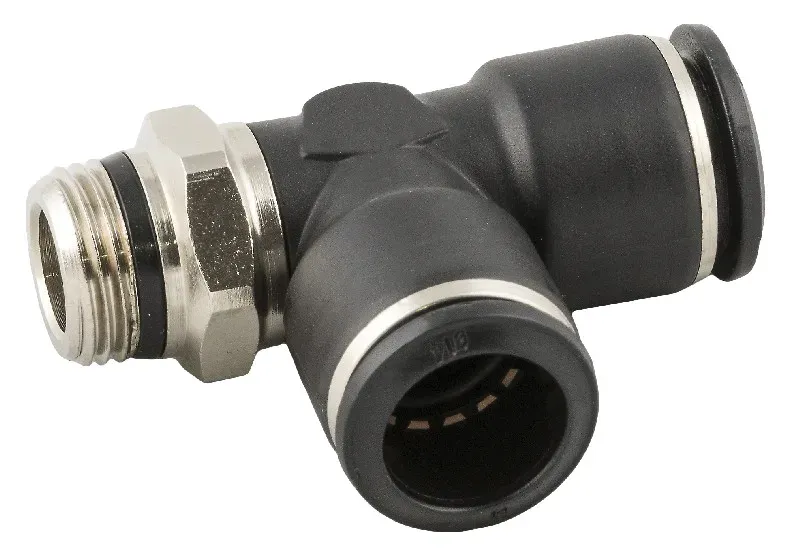

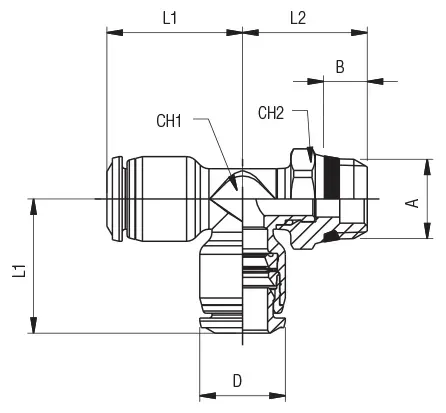

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 D Bag
55223 00 001     55222-4-1/8 Download 5/32 (4) 1/8 0.217 (5.5) 0.650 (16.5) 0.717 (18.2) 0.276 (7) 0.512 (13) 0.394 (10) 10
55223 00 002     55222-4-1/4 Download 5/32 (4) 1/4 0.276 (7) 0.650 (16.5) 0.776 (19.7) 0.276 (7) 0.591 (15) 0.394 (10) 10
55223 00 003     55222-5-1/8 Download 5 1/8 0.217 (5.5) 0.787 (20) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55223 00 004     55222-6-1/8 Download 6 1/8 0.217 (5.5) 0.807 (20.5) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.492 (12.5) 10
55223 00 005     55222-6-1/4 Download 6 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.492 (12.5) 10
55223 00 008     55222-8-1/8 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.744 (18.9) 0.394 (10) 0.512 (13) 0.551 (14) 10
55223 00 009     55222-8-1/4 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.803 (20.4) 0.394 (10) 0.591 (15) 0.551 (14) 10
55223 00 010     55222-8-3/8 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.823 (20.9) 0.394 (10) 0.669 (17) 0.551 (14) 10
55223 00 012     55222-10-1/4 Download 10 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
55223 00 013     55222-10-3/8 Download 10 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
55223 00 014     55222-10-1/2 Download 10 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
55223 00 015     55222-12-1/4 Download 12 1/4 0.276 (7) 1.220 (31) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
55223 00 016     55222-12-3/8 Download 12 3/8 0.295 (7.5) 1.220 (31) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
55223 00 017     55222-12-1/2 Download 12 1/2 0.354 (9) 1.220 (31) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
55223 00 018     55222-14-3/8 Download 14 3/8 0.295 (7.5) 1.201 (30.5) 1.043 (26.5) 0.709 (18) 0.787 (20) 0.827 (21) 10
55223 00 019     55222-14-1/2 Download 14 1/2 0.354 (9) 1.201 (30.5) 1.063 (27) 0.709 (18) 0.827 (21) 0.827 (21) 10
Code Draw Tube A B L1 L2 CH1 CH2 D Bag
55223 00 001 Download 5/32 (4) 1/8 0.217 (5.5) 0.650 (16.5) 0.717 (18.2) 0.276 (7) 0.512 (13) 0.394 (10) 10
55223 00 002 Download 5/32 (4) 1/4 0.276 (7) 0.650 (16.5) 0.776 (19.7) 0.276 (7) 0.591 (15) 0.394 (10) 10
55223 00 003 Download 5 1/8 0.217 (5.5) 0.787 (20) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55223 00 004 Download 6 1/8 0.217 (5.5) 0.807 (20.5) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.492 (12.5) 10
55223 00 005 Download 6 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.492 (12.5) 10
55223 00 008 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.744 (18.9) 0.394 (10) 0.512 (13) 0.551 (14) 10
55223 00 009 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.803 (20.4) 0.394 (10) 0.591 (15) 0.551 (14) 10
55223 00 010 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.823 (20.9) 0.394 (10) 0.669 (17) 0.551 (14) 10
55223 00 012 Download 10 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
55223 00 013 Download 10 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
55223 00 014 Download 10 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
55223 00 015 Download 12 1/4 0.276 (7) 1.220 (31) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
55223 00 016 Download 12 3/8 0.295 (7.5) 1.220 (31) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
55223 00 017 Download 12 1/2 0.354 (9) 1.220 (31) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
55223 00 018 Download 14 3/8 0.295 (7.5) 1.201 (30.5) 1.043 (26.5) 0.709 (18) 0.787 (20) 0.827 (21) 10
55223 00 019 Download 14 1/2 0.354 (9) 1.201 (30.5) 1.063 (27) 0.709 (18) 0.827 (21) 0.827 (21) 10
