Push-In Fittings>

55000 - METRIC Series

>55111
55111

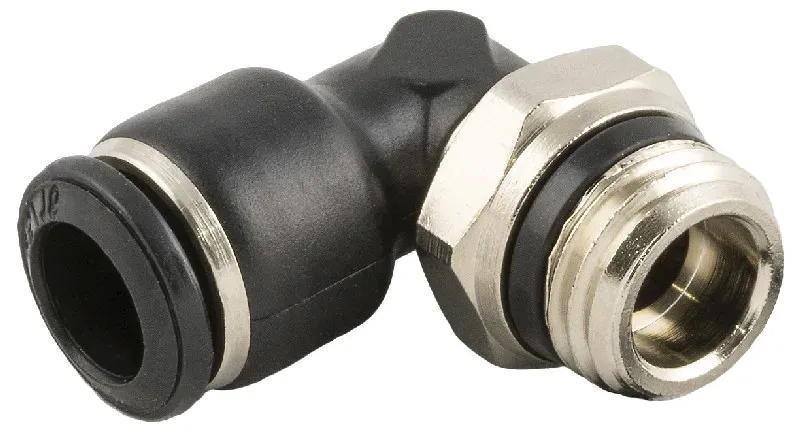

SWIVEL ELBOW - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
SWIVEL ELBOW - SWIFTFIT
SWIVEL ELBOW - SWIFTFIT

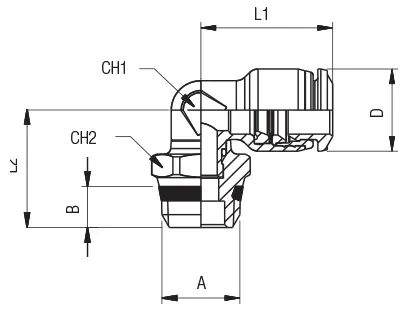

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 D Bag
55111 00 001     55110-4-1/8 Download 5/32 (4) 1/8 0.217 (5.5) 0.650 (16.5) 0.650 (16.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
55111 00 002     55110-4-1/4 Download 5/32 (4) 1/4 0.276 (7) 0.650 (16.5) 0.709 (18) 0.276 (7) 0.591 (15) 0.394 (10) 10
55111 00 003     55110-5-1/8 Download 5 1/8 0.217 (5.5) 0.787 (20) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55111 00 004     55110-6-1/8 Download 6 1/8 0.217 (5.5) 0.807 (20.5) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55111 00 005     55110-6-1/4 Download 6 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.472 (12) 10
55111 00 006     55110-6-3/8 Download 6 3/8 0.295 (7.5) 0.807 (20.5) 0.787 (20) 0.354 (9) 0.669 (17) 0.472 (12) 10
55111 00 007     55110-6-1/2 Download 6 1/2 0.354 (9) 0.807 (20.5) 0.866 (22) 0.354 (9) 0.827 (21) 0.472 (12) 10
55111 00 008     55110-8-1/8 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.728 (18.5) 0.394 (10) 0.512 (13) 0.551 (14) 10
55111 00 009     55110-8-1/4 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.787 (20) 0.394 (10) 0.591 (15) 0.551 (14) 10
55111 00 010     55110-8-3/8 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.807 (20.5) 0.394 (10) 0.669 (17) 0.551 (14) 10
55111 00 011     55110-8-1/2 Download 5/16 (8) 1/2 0.354 (9) 0.866 (22) 0.906 (23) 0.394 (10) 0.827 (21) 0.551 (14) 10
55111 00 012     55110-10-1/4 Download 10 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
55111 00 013     55110-10-3/8 Download 10 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
55111 00 014     55110-10-1/2 Download 10 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
55111 00 015     55110-12-1/4 Download 12 1/4 0.276 (7) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
55111 00 016     55110-12-3/8 Download 12 3/8 0.295 (7.5) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
55111 00 017     55110-12-1/2 Download 12 1/2 0.354 (9) 1.181 (30) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
55111 00 018     55110-14-3/8 Download 14 3/8 0.295 (7.5) 1.220 (31) 1.043 (26.5) 0.709 (18) 0.787 (20) 0.827 (21) 10
55111 00 019     55110-14-1/2 Download 14 1/2 0.354 (9) 1.220 (31) 1.063 (27) 0.709 (18) 0.827 (21) 0.827 (21) 10
55111 00 020     55110-16-3/8 Download 16 3/8 0.295 (7.5) 1.291 (32.8) 1.331 (33.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
55111 00 021     55110-16-1/2 Download 16 1/2 0.354 (9) 1.291 (32.8) 1.370 (34.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
Code Draw Tube A B L1 L2 CH1 CH2 D Bag
55111 00 001 Download 5/32 (4) 1/8 0.217 (5.5) 0.650 (16.5) 0.650 (16.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
55111 00 002 Download 5/32 (4) 1/4 0.276 (7) 0.650 (16.5) 0.709 (18) 0.276 (7) 0.591 (15) 0.394 (10) 10
55111 00 003 Download 5 1/8 0.217 (5.5) 0.787 (20) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55111 00 004 Download 6 1/8 0.217 (5.5) 0.807 (20.5) 0.685 (17.4) 0.354 (9) 0.512 (13) 0.472 (12) 10
55111 00 005 Download 6 1/4 0.276 (7) 0.807 (20.5) 0.744 (18.9) 0.354 (9) 0.591 (15) 0.472 (12) 10
55111 00 006 Download 6 3/8 0.295 (7.5) 0.807 (20.5) 0.787 (20) 0.354 (9) 0.669 (17) 0.472 (12) 10
55111 00 007 Download 6 1/2 0.354 (9) 0.807 (20.5) 0.866 (22) 0.354 (9) 0.827 (21) 0.472 (12) 10
55111 00 008 Download 5/16 (8) 1/8 0.217 (5.5) 0.866 (22) 0.728 (18.5) 0.394 (10) 0.512 (13) 0.551 (14) 10
55111 00 009 Download 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.787 (20) 0.394 (10) 0.591 (15) 0.551 (14) 10
55111 00 010 Download 5/16 (8) 3/8 0.295 (7.5) 0.866 (22) 0.807 (20.5) 0.394 (10) 0.669 (17) 0.551 (14) 10
55111 00 011 Download 5/16 (8) 1/2 0.354 (9) 0.866 (22) 0.906 (23) 0.394 (10) 0.827 (21) 0.551 (14) 10
55111 00 012 Download 10 1/4 0.276 (7) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
55111 00 013 Download 10 3/8 0.295 (7.5) 1.043 (26.5) 0.858 (21.8) 0.512 (13) 0.669 (17) 0.669 (17) 10
55111 00 014 Download 10 1/2 0.354 (9) 1.043 (26.5) 0.957 (24.3) 0.512 (13) 0.827 (21) 0.669 (17) 10
55111 00 015 Download 12 1/4 0.276 (7) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
55111 00 016 Download 12 3/8 0.295 (7.5) 1.181 (30) 0.909 (23.1) 0.630 (16) 0.669 (17) 0.787 (20) 10
55111 00 017 Download 12 1/2 0.354 (9) 1.181 (30) 1.008 (25.6) 0.630 (16) 0.827 (21) 0.787 (20) 10
55111 00 018 Download 14 3/8 0.295 (7.5) 1.220 (31) 1.043 (26.5) 0.709 (18) 0.787 (20) 0.827 (21) 10
55111 00 019 Download 14 1/2 0.354 (9) 1.220 (31) 1.063 (27) 0.709 (18) 0.827 (21) 0.827 (21) 10
55111 00 020 Download 16 3/8 0.295 (7.5) 1.291 (32.8) 1.331 (33.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
55111 00 021 Download 16 1/2 0.354 (9) 1.291 (32.8) 1.370 (34.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
