Push-In Fittings>

55000 - METRIC Series

>55211
55211

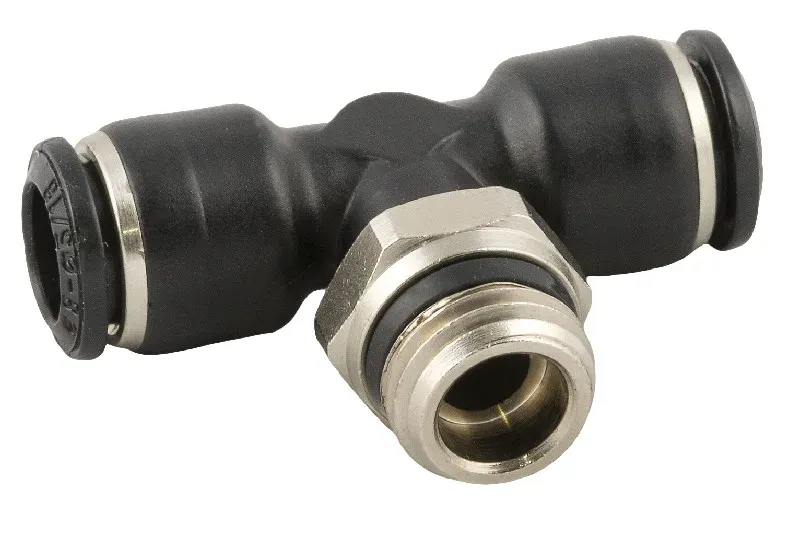

SWIVEL BRANCH TEE - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
SWIVEL BRANCH TEE - SWIFTFIT
SWIVEL BRANCH TEE - SWIFTFIT

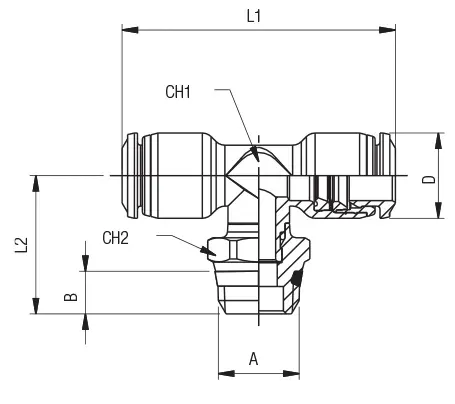

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 D Bag
55211 00 001     55210-4-1/8 Download 5/32 (4) 1/8 0.217 (5.5) 1.299 (33) 0.728 (18.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
55211 00 002     55210-4-1/4 Download 5/32 (4) 1/4 0.276 (7) 1.299 (33) 0.787 (20) 0.276 (7) 0.591 (15) 0.394 (10) 10
55211 00 003     55210-5-1/8 Download 5 1/8 0.217 (5.5) 1.575 (40) 0.787 (20) 0.354 (9) 0.512 (13) 0.472 (12) 10
55211 00 004     55210-6-1/8 Download 6 1/8 0.217 (5.5) 1.614 (41) 0.787 (20) 0.354 (9) 0.512 (13) 0.492 (12.5) 10
55211 00 005     55210-6-1/4 Download 6 1/4 0.276 (7) 1.614 (41) 0.846 (21.5) 0.354 (9) 0.591 (15) 0.492 (12.5) 10
55211 00 008     55210-8-1/8 Download 5/32 (8) 1/8 0.217 (5.5) 1.732 (44) 0.827 (21) 0.394 (10) 0.512 (13) 0.551 (14) 10
55211 00 009     55210-8-1/4 Download 5/32 (8) 1/4 0.276 (7) 1.732 (44) 0.886 (22.5) 0.394 (10) 0.591 (15) 0.551 (14) 10
55211 00 010     55210-8-3/8 Download 5/32 (8) 3/8 0.295 (7.5) 1.732 (44) 0.906 (23) 0.394 (10) 0.669 (17) 0.551 (14) 10
55211 00 012     55210-10-1/4 Download 10 1/4 0.276 (7) 2.087 (53) 1.004 (25.5) 0.512 (13) 0.630 (16) 0.669 (17) 10
55211 00 013     55210-10-3/8 Download 10 3/8 0.295 (7.5) 2.087 (53) 1.004 (25.5) 0.512 (13) 0.669 (17) 0.669 (17) 10
55211 00 014     55210-10-1/2 Download 10 1/2 0.354 (9) 2.087 (53) 1.102 (28) 0.512 (13) 0.827 (21) 0.669 (17) 10
55211 00 015     55210-12-1/4 Download 12 1/4 0.276 (7) 2.362 (60) 1.063 (27) 0.630 (16) 0.630 (16) 0.787 (20) 10
55211 00 016     55210-12-3/8 Download 12 3/8 0.295 (7.5) 2.362 (60) 1.063 (27) 0.630 (16) 0.669 (17) 0.787 (20) 10
55211 00 017     55210-12-1/2 Download 12 1/2 0.354 (9) 2.362 (60) 1.161 (29.5) 0.630 (16) 0.827 (21) 0.787 (20) 10
55211 00 018     55210-14-3/8 Download 14 3/8 0.295 (7.5) 2.402 (61) 1.181 (30) 0.709 (18) 0.787 (20) 0.827 (21) 10
55211 00 019     55210-14-1/2 Download 14 1/2 0.354 (9) 2.402 (61) 1.201 (30.5) 0.709 (18) 0.827 (21) 0.827 (21) 10
55211 00 020     55210-16-3/8 Download 16 3/8 0.295 (7.5) 2.583 (65.6) 1.331 (33.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
55211 00 021     55210-16-1/2 Download 16 1/2 0.354 (9) 2.583 (65.6) 1.370 (34.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
Code Draw Tube A B L1 L2 CH1 CH2 D Bag
55211 00 001 Download 5/32 (4) 1/8 0.217 (5.5) 1.299 (33) 0.728 (18.5) 0.276 (7) 0.512 (13) 0.394 (10) 10
55211 00 002 Download 5/32 (4) 1/4 0.276 (7) 1.299 (33) 0.787 (20) 0.276 (7) 0.591 (15) 0.394 (10) 10
55211 00 003 Download 5 1/8 0.217 (5.5) 1.575 (40) 0.787 (20) 0.354 (9) 0.512 (13) 0.472 (12) 10
55211 00 004 Download 6 1/8 0.217 (5.5) 1.614 (41) 0.787 (20) 0.354 (9) 0.512 (13) 0.492 (12.5) 10
55211 00 005 Download 6 1/4 0.276 (7) 1.614 (41) 0.846 (21.5) 0.354 (9) 0.591 (15) 0.492 (12.5) 10
55211 00 008 Download 5/32 (8) 1/8 0.217 (5.5) 1.732 (44) 0.827 (21) 0.394 (10) 0.512 (13) 0.551 (14) 10
55211 00 009 Download 5/32 (8) 1/4 0.276 (7) 1.732 (44) 0.886 (22.5) 0.394 (10) 0.591 (15) 0.551 (14) 10
55211 00 010 Download 5/32 (8) 3/8 0.295 (7.5) 1.732 (44) 0.906 (23) 0.394 (10) 0.669 (17) 0.551 (14) 10
55211 00 012 Download 10 1/4 0.276 (7) 2.087 (53) 1.004 (25.5) 0.512 (13) 0.630 (16) 0.669 (17) 10
55211 00 013 Download 10 3/8 0.295 (7.5) 2.087 (53) 1.004 (25.5) 0.512 (13) 0.669 (17) 0.669 (17) 10
55211 00 014 Download 10 1/2 0.354 (9) 2.087 (53) 1.102 (28) 0.512 (13) 0.827 (21) 0.669 (17) 10
55211 00 015 Download 12 1/4 0.276 (7) 2.362 (60) 1.063 (27) 0.630 (16) 0.630 (16) 0.787 (20) 10
55211 00 016 Download 12 3/8 0.295 (7.5) 2.362 (60) 1.063 (27) 0.630 (16) 0.669 (17) 0.787 (20) 10
55211 00 017 Download 12 1/2 0.354 (9) 2.362 (60) 1.161 (29.5) 0.630 (16) 0.827 (21) 0.787 (20) 10
55211 00 018 Download 14 3/8 0.295 (7.5) 2.402 (61) 1.181 (30) 0.709 (18) 0.787 (20) 0.827 (21) 10
55211 00 019 Download 14 1/2 0.354 (9) 2.402 (61) 1.201 (30.5) 0.709 (18) 0.827 (21) 0.827 (21) 10
55211 00 020 Download 16 3/8 0.295 (7.5) 2.583 (65.6) 1.331 (33.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
55211 00 021 Download 16 1/2 0.354 (9) 2.583 (65.6) 1.370 (34.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
