Push-In Fittings>

50000N - METRIC Series

>50030N
50030N

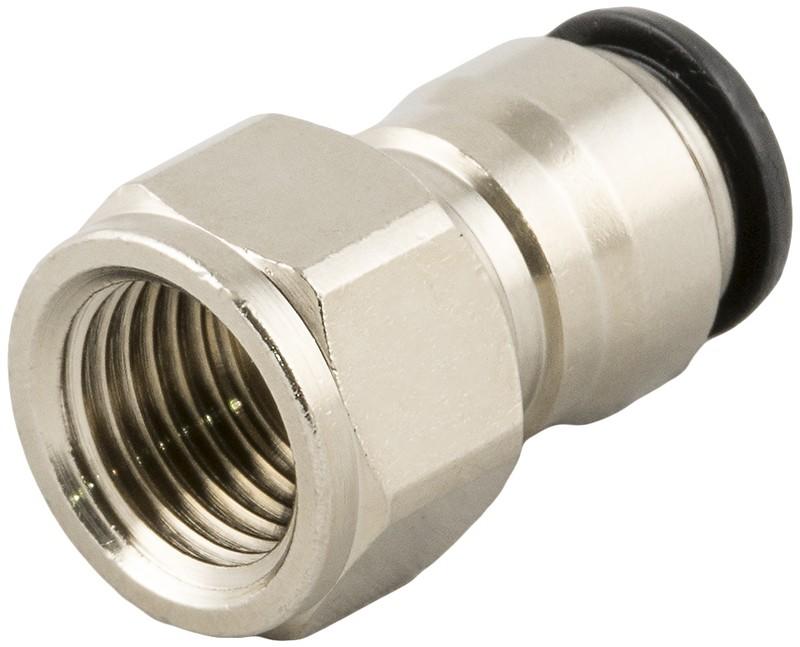

STRAIGHT FEMALE - BSPP

Technical characteristics / catalogAignep Scan Labels Certifications
STRAIGHT FEMALE - BSPP
STRAIGHT FEMALE - BSPP

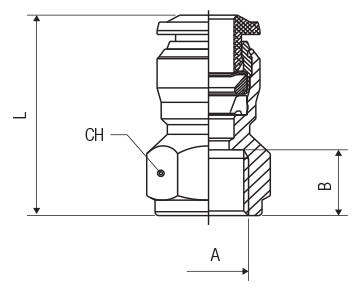

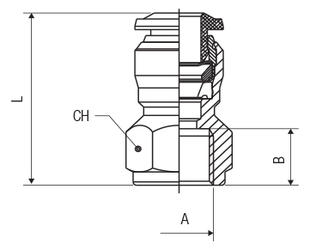

Code USA REF  Draw Tube A B L CH Bag
50030 00 N07     50030N-3-M5 Download 3 M5 0.217 (5.5) 0.728 (18.5) 0.354 (9) 10
50030 00 N08     50030N-4-M5 Download 5/32 (4) M5 0.217 (5.5) 0.827 (21) 0.433 (11) 10
50030 00 N01     50030N-4-1/8 Download 5/32 (4) 1/8 0.335 (8.5) 0.945 (24) 0.512 (13) 10
50030 00 N09     50030N-4-1/4 Download 5/32 (4) 1/4 0.433 (11) 1.083 (27.5) 0.630 (16) 10
50030 00 N06     50030N-5-1/8 Download 5 1/8 0.335 (8.5) 1.043 (26.5) 0.512 (13) 10
50030 00 N02     50030N-6-1/8 Download 6 1/8 0.335 (8.5) 1.024 (26) 0.512 (13) 10
50030 00 N03     50030N-6-1/4 Download 6 1/4 0.433 (11) 1.161 (29.5) 0.630 (16) 10
50030 00 N04     50030N-8-1/8 Download 5/16 (8) 1/8 0.335 (8.5) 1.063 (27) 0.591 (15) 10
50030 00 N05     50030N-8-1/4 Download 5/16 (8) 1/4 0.433 (11) 1.161 (29.5) 0.669 (17) 10
50030 00 N10     50030N-8-3/8 Download 5/16 (8) 3/8 0.472 (12) 1.260 (32) 0.748 (19) 10
50030 00 N11     50030N-10-1/4 Download 10 1/4 0.433 (11) 1.260 (32) 0.709 (18) 10
50030 00 N12     50030N-10-3/8 Download 10 3/8 0.472 (12) 1.319 (33.5) 0.748 (19) 10
50030 00 N13     50030N-10-1/2 Download 10 1/2 0.591 (15) 1.535 (39) 0.945 (24) 10
50030 00 N14     50030N-12-3/8 Download 12 3/8 0.472 (12) 1.417 (36) 0.827 (21) 10
50030 00 N15     50030N-12-1/2 Download 12 1/2 0.591 (15) 1.614 (41) 0.945 (24) 10
50030 00 N16     50030N-16-3/8 Download 16 3/8 0.472 (12) 1.594 (40.5) 0.945 (24) 10
50030 00 N17     50030N-16-1/2 Download 16 1/2 0.591 (15) 1.634 (41.5) 0.945 (24) 10
Code Draw Tube A B L CH Bag
50030 00 N07 Download 3 M5 0.217 (5.5) 0.728 (18.5) 0.354 (9) 10
50030 00 N08 Download 5/32 (4) M5 0.217 (5.5) 0.827 (21) 0.433 (11) 10
50030 00 N01 Download 5/32 (4) 1/8 0.335 (8.5) 0.945 (24) 0.512 (13) 10
50030 00 N09 Download 5/32 (4) 1/4 0.433 (11) 1.083 (27.5) 0.630 (16) 10
50030 00 N06 Download 5 1/8 0.335 (8.5) 1.043 (26.5) 0.512 (13) 10
50030 00 N02 Download 6 1/8 0.335 (8.5) 1.024 (26) 0.512 (13) 10
50030 00 N03 Download 6 1/4 0.433 (11) 1.161 (29.5) 0.630 (16) 10
50030 00 N04 Download 5/16 (8) 1/8 0.335 (8.5) 1.063 (27) 0.591 (15) 10
50030 00 N05 Download 5/16 (8) 1/4 0.433 (11) 1.161 (29.5) 0.669 (17) 10
50030 00 N10 Download 5/16 (8) 3/8 0.472 (12) 1.260 (32) 0.748 (19) 10
50030 00 N11 Download 10 1/4 0.433 (11) 1.260 (32) 0.709 (18) 10
50030 00 N12 Download 10 3/8 0.472 (12) 1.319 (33.5) 0.748 (19) 10
50030 00 N13 Download 10 1/2 0.591 (15) 1.535 (39) 0.945 (24) 10
50030 00 N14 Download 12 3/8 0.472 (12) 1.417 (36) 0.827 (21) 10
50030 00 N15 Download 12 1/2 0.591 (15) 1.614 (41) 0.945 (24) 10
50030 00 N16 Download 16 3/8 0.472 (12) 1.594 (40.5) 0.945 (24) 10
50030 00 N17 Download 16 1/2 0.591 (15) 1.634 (41.5) 0.945 (24) 10
