Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

90663

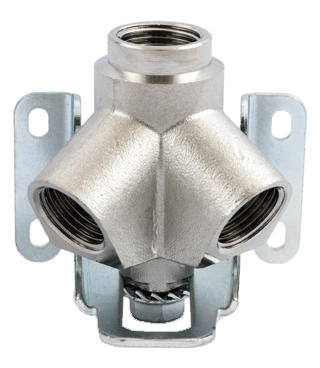

THREADED INCLINED DOUBLE OUTLET - NPTF

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

THREADED INCLINED DOUBLE OUTLET - NPTF

THREADED INCLINED DOUBLE OUTLET - NPTF

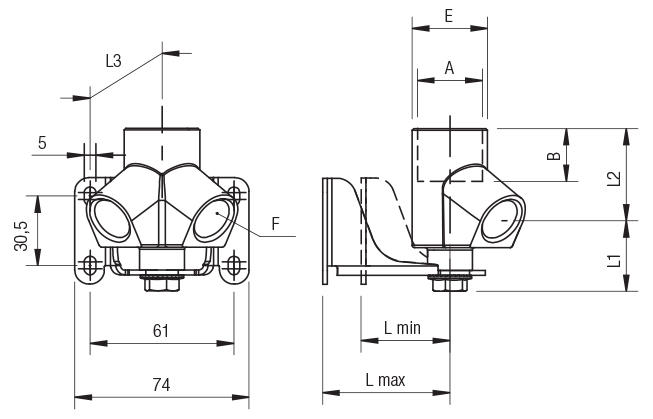

Code	USA REF			Draw	A (NPTF)	F (NPTF)	B	E	L1	L2	L3	L Min	L Max	Bag
90663 00 001	90663-08-08			Download	1/2	1/2	0.531 (13.5)	1.260 (32)	1.220 (31)	1.594 (40.5)	1.476 (37.5)	0.866 (22)	2.126 (54)	2
90663 00 002	90663-12-08			Download	3/4	1/2	0.551 (14)	1.260 (32)	1.220 (31)	1.535 (39)	1.476 (37.5)	0.866 (22)	2.126 (54)	2

Code	Draw	A (NPTF)	F (NPTF)	B	E	L1	L2	L3	L Min	L Max	Bag
90663 00 001	Download	1/2	1/2	0.531 (13.5)	1.260 (32)	1.220 (31)	1.594 (40.5)	1.476 (37.5)	0.866 (22)	2.126 (54)	2
90663 00 002	Download	3/4	1/2	0.551 (14)	1.260 (32)	1.220 (31)	1.535 (39)	1.476 (37.5)	0.866 (22)	2.126 (54)	2

ADJUSTABLE
