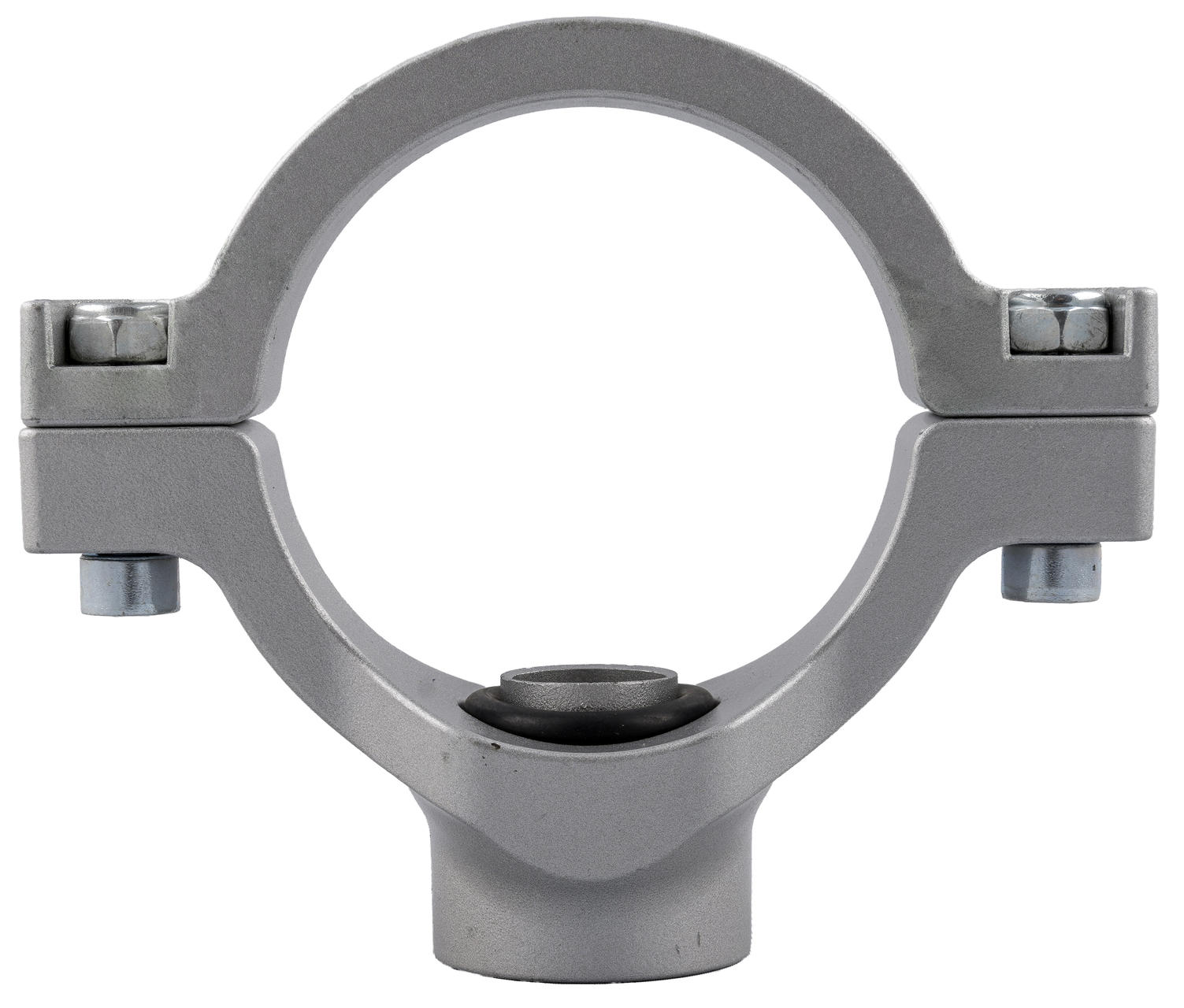

FEMALE SADDLE CLAMP CONNECTOR - NPTF
Technical characteristics / catalogAignep Scan Labels Instructions Certifications

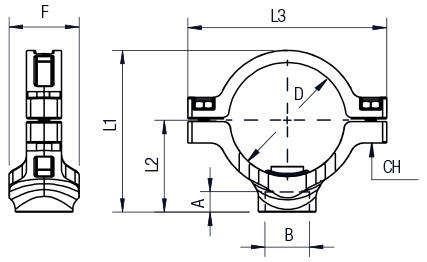

| Code | Draw | D | B | A | F | L1 | L2 | L3 | CH | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 90248 00 007 | Download | 80 | 3/4 | 0.650 (16.5) | 1.969 (50) | 4.626 (117.5) | 2.618 (66.5) | 5.571 (141.5) | 0.236 (6) | 1 |
| 90248 00 008 | Download | 80 | 1" | 0.748 (19) | 1.969 (50) | 4.724 (120) | 2.717 (69) | 5.571 (141.5) | 0.236 (6) | 1 |
| 90248 00 009 | Download | 110 | 3/4 | 0.650 (16.5) | 1.969 (50) | 6.004 (152.5) | 3.228 (82) | 7.461 (189.5) | 0.315 (8) | 1 |
| 90248 00 010 | Download | 110 | 1" | 0.748 (19) | 1.969 (50) | 6.102 (155) | 3.327 (84.5) | 7.461 (189.5) | 0.315 (8) | 1 |
| 90248 00 015 | 110 | 2" | 0.866 (22) | 2.795 (71) | 6.496 (165) | 3.700 (94) | 7.461 (189.5) | 0.315 (8) | 1 | |
| 90248 00 011 | 168 | 3/4 | 0.649 (16,5) | 2.047 (52) | 8.386 (213) | 4.488 (114) | 9.803 (249) | 0.315 (8) | 1 | |
| 90248 00 012 | 168 | 1" | 0.748 (19) | 2.047 (52) | 8.386 (213) | 4.488 (114) | 9.803 (249) | 0.315 (8) | 1 | |
| 90248 00 013 | 168 | 1"1/2 | 0.748 (19) | 2.913 (74) | 8.779 (223) | 4.882 (124) | 9.803 (249) | 0.315 (8) | 1 | |
| 90248 00 014 | 168 | 2" | 0.866 (22) | 2.913 (74) | 8.779 (223) | 4.882 (124) | 9.803 (249) | 0.315 (8) | 1 |
