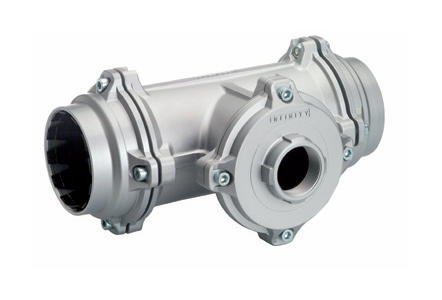

FEMALE OUTLET REDUCING TEE - NPTF

Technical characteristics / catalogAignep Scan Labels Instructions Certifications
FEMALE OUTLET REDUCING TEE - NPTF
FEMALE OUTLET REDUCING TEE - NPTF

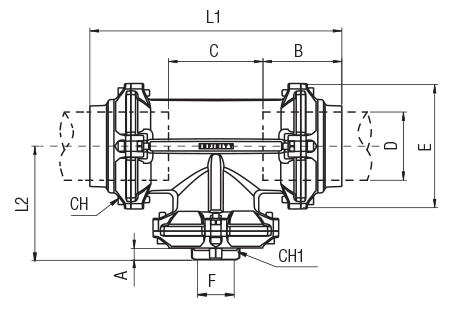

Code USA REF  Draw D F A B C E L1 L2 CH CH1 Bag
90237 00 009     90237-80-12 Download 80 3/4 0.571 (14.5) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 1.654 (42) 1
90237 00 010     90237-80-16 Download 80 1" 0.669 (17) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 1.929 (49) 1
90237 00 011     90237-80-24 Download 80 1" 1/2 0.787 (20) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 2.598 (66) 1
90237 00 012     90237-80-32 Download 80 2" 0.866 (22) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 3.150 (80) 1
90237 00 013     90237-110-12 Download 110 3/4 0.571 (14.5) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 1.654 (42) 1
90237 00 014     90237-110-16 Download 110 1" 0.669 (17) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 1.929 (49) 1
90237 00 015     90237-110-24 Download 110 1" 1/2 0.787 (20) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 2.598 (66) 1
90237 00 016     90237-110-32 Download 110 2" 0.866 (22) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 3.150 (80) 1
90237 00 026     90237-110-48 110 3" 1.141 (29) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.381 (187.5) 0.315 (8) 4.724 (120) 1
90237 00 021     90237-168-12 168 3/4 0.571 (14.5) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.827 (275) 0.394 (10) 1.634 (41.5) 1
90237 00 022     90237-168-16 168 1" 0.669 (17) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.906 (277) 0.394 (10) 1.890 (48) 1
90237 00 023     90237-168-32 168 2" 0.925 (23,5) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.906 (277) 0.394 (10) 3.071 (78) 1
90237 00 024     90237-168-48 168 3" 1.141 (29) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 11.141 (283) 0.394 (10) 4.724 (120) 1
90237 00 025     90237-168-64 168 4" 1.062 (27) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 11.259 (286) 0.394 (10) 4.881 (124) 1
Code Draw D F A B C E L1 L2 CH CH1 Bag
90237 00 009 Download 80 3/4 0.571 (14.5) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 1.654 (42) 1
90237 00 010 Download 80 1" 0.669 (17) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 1.929 (49) 1
90237 00 011 Download 80 1" 1/2 0.787 (20) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 2.598 (66) 1
90237 00 012 Download 80 2" 0.866 (22) 3.583 (91) 4.291 (109) 5.709 (145) 11.476 (291.5) 5.433 (138) 0.236 (6) 3.150 (80) 1
90237 00 013 Download 110 3/4 0.571 (14.5) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 1.654 (42) 1
90237 00 014 Download 110 1" 0.669 (17) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 1.929 (49) 1
90237 00 015 Download 110 1" 1/2 0.787 (20) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 2.598 (66) 1
90237 00 016 Download 110 2" 0.866 (22) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.087 (180) 0.315 (8) 3.150 (80) 1
90237 00 026 110 3" 1.141 (29) 4.941 (125.5) 5.925 (150.5) 7.874 (200) 15.787 (401) 7.381 (187.5) 0.315 (8) 4.724 (120) 1
90237 00 021 168 3/4 0.571 (14.5) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.827 (275) 0.394 (10) 1.634 (41.5) 1
90237 00 022 168 1" 0.669 (17) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.906 (277) 0.394 (10) 1.890 (48) 1
90237 00 023 168 2" 0.925 (23,5) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 10.906 (277) 0.394 (10) 3.071 (78) 1
90237 00 024 168 3" 1.141 (29) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 11.141 (283) 0.394 (10) 4.724 (120) 1
90237 00 025 168 4" 1.062 (27) 7.638 (194) 9.252 (235) 12.047 (306) 24.528 (623) 11.259 (286) 0.394 (10) 4.881 (124) 1
