90710

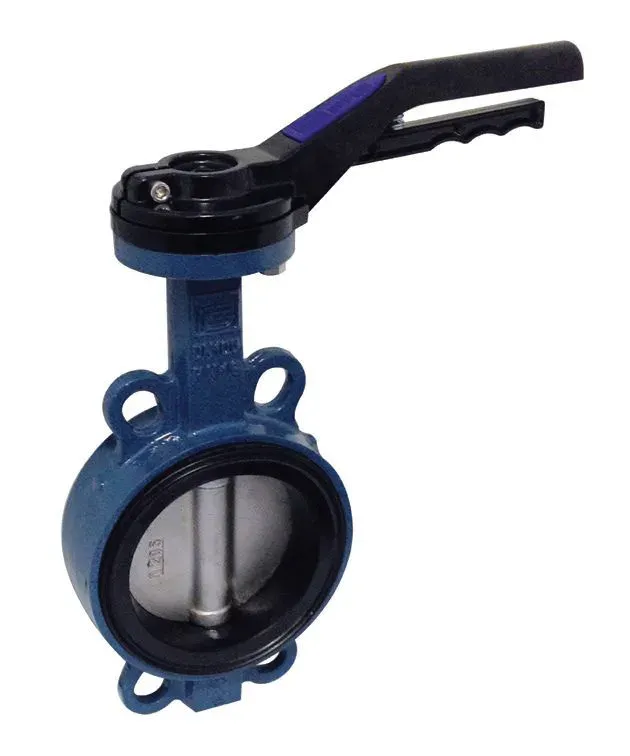

BUTTERFLY VALVE + SCREWS + NUTS + WASHERS
Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications

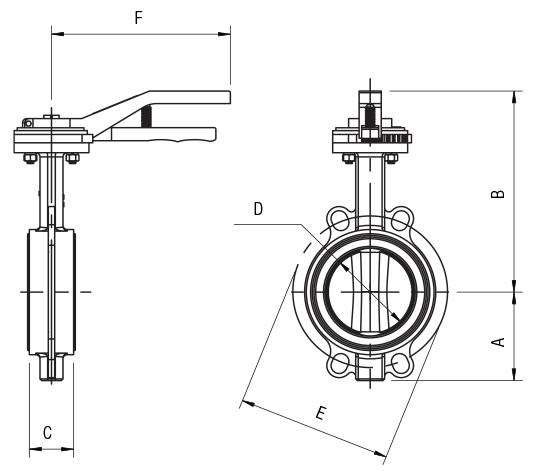

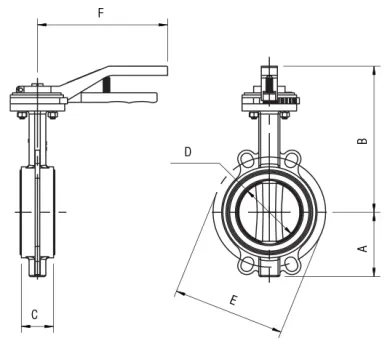

| Code | Draw | D | D.N. | A | B | C | E | F | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 90710 000 02 | Download | 80 | 3.031 (77) | 3.425 (87) | 8.504 (216) | 1.811 (46) | 6.299 (160) | 10.433 (265) | 1 |
| 90710 000 01 | Download | 110 | 3.937 (100) | 4.173 (106) | 7.913 (201) | 2.047 (52) | 7.087 (180) | 10.433 (265) | 1 |
| 90710 000 03 | Download | 168 | 5.906 (150) | 4.961 (126) | 7.953 (202) | 2.205 (56) | 9.449 (240) | 10.433 (265) | 1 |
