Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

>90140
90140

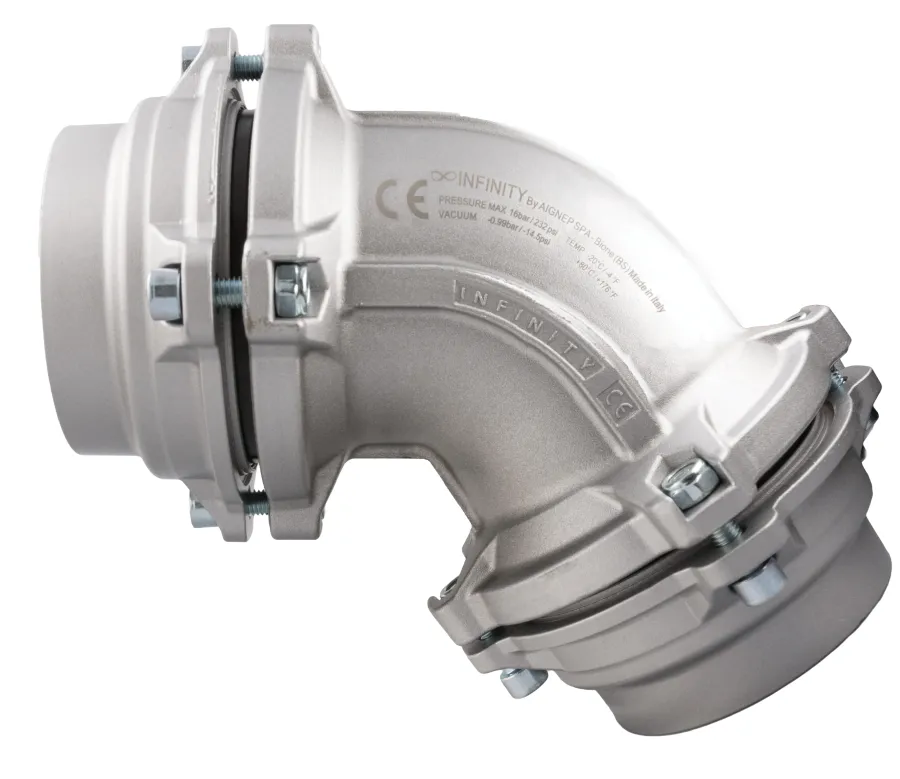

135° CONNECTOR

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
135° CONNECTOR
135° CONNECTOR

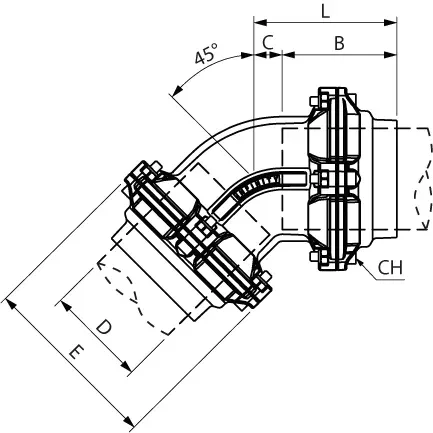

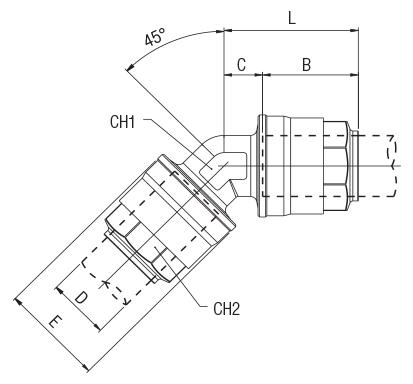

Code USA REF  Draw D B C E L CH1 CH2 * Bag
90140 00 001     90140-20 Download 20 1.240 (31.5) 0.492 (12.5) 1.358 (34.5) 1.732 (44) 0.827 (21) 1.181 (30) 4
90140 00 002     90140-25 Download 25 1.516 (38.5) 0.531 (13.5) 1.673 (42.5) 2.047 (52) 1.024 (26) 1.378 (35) 4
90140 00 003     90140-32 Download 32 1.811 (46) 0.591 (15) 2.047 (52) 2.402 (61) 1.339 (34) 1.772 (45) 2
90140 00 004     90140-40 Download 40 2.047 (52) 0.709 (18) 2.480 (63) 2.756 (70) 1.614 (41) 2.165 (55) 1
90140 00 005     90140-50 Download 50 2.500 (63.5) 0.787 (20) 2.874 (73) 3.287 (83.5) 1.969 (50) 2.559 (65) 2
90140 00 006     90140-63 Download 63 2.323 (59) 0.945 (24) 3.622 (92) 3.268 (83) 2.559 (65) 2.756 (70) 1
90140 00 005 A     90140A-50 Download 50 2.303 (58.5) 1.398 (35.5) 3.307 (84) 3.701 (94) 2.323 (59) 2.677 (68) Aluminium 2
90140 00 006 A     90140A-63 Download 63 2.264 (57.5) 0.945 (24) 3.701 (94) 3.228 (82) 2.874 (73) 2.953 (75) Aluminium 1
Code Draw D B C E L CH1 CH2 * Bag
90140 00 001 Download 20 1.240 (31.5) 0.492 (12.5) 1.358 (34.5) 1.732 (44) 0.827 (21) 1.181 (30) 4
90140 00 002 Download 25 1.516 (38.5) 0.531 (13.5) 1.673 (42.5) 2.047 (52) 1.024 (26) 1.378 (35) 4
90140 00 003 Download 32 1.811 (46) 0.591 (15) 2.047 (52) 2.402 (61) 1.339 (34) 1.772 (45) 2
90140 00 004 Download 40 2.047 (52) 0.709 (18) 2.480 (63) 2.756 (70) 1.614 (41) 2.165 (55) 1
90140 00 005 Download 50 2.500 (63.5) 0.787 (20) 2.874 (73) 3.287 (83.5) 1.969 (50) 2.559 (65) 2
90140 00 006 Download 63 2.323 (59) 0.945 (24) 3.622 (92) 3.268 (83) 2.559 (65) 2.756 (70) 1
90140 00 005 A Download 50 2.303 (58.5) 1.398 (35.5) 3.307 (84) 3.701 (94) 2.323 (59) 2.677 (68) Aluminium 2
90140 00 006 A Download 63 2.264 (57.5) 0.945 (24) 3.701 (94) 3.228 (82) 2.874 (73) 2.953 (75) Aluminium 1
