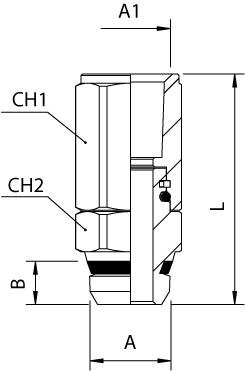

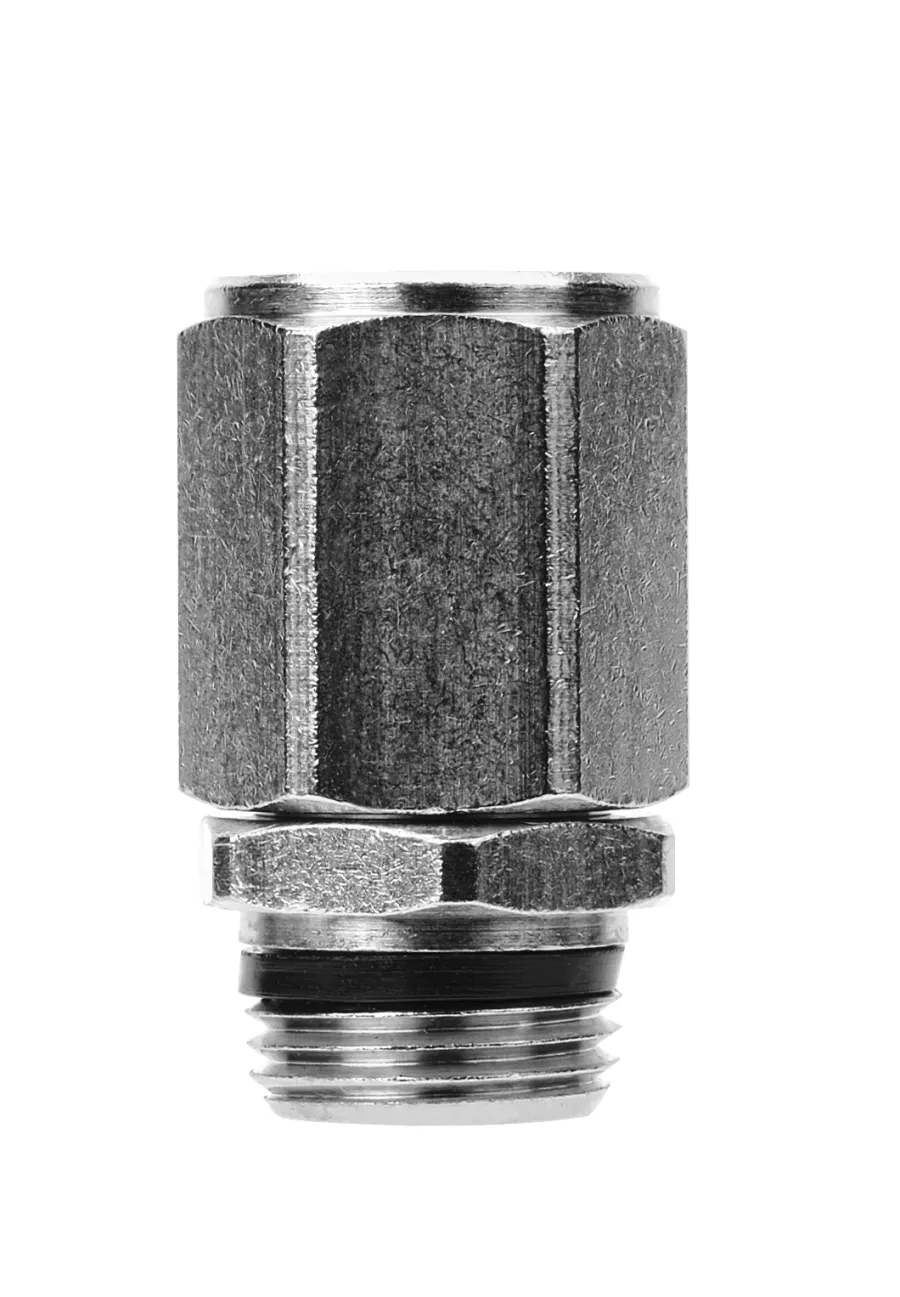

NIPPLE - MALE SWIFTFIT X FEMALE NPTF

Code	USA REF	A	A1 (NPTF)	B	L	CH1	CH2	Pack
82301 00 004	82301-02-04	1/8	1/4	0.276 (7)	1.406 (35.7)	0.551 (14)	0.630 (16)	10
82301 00 005	82301-02-06	1/8	3/8	0.276 (7)	1.486 (37.75)	0.630 (16)	0.787 (20)	10
82301 00 006	82301-02-08	1/8	1/2	0.276 (7)	1.644 (41.75)	0.630 (16)	0.945 (24)	10
82301 00 007	82301-04-02	1/4	1/8	0.335 (8.5)	1.348 (34.25)	0.630 (16)	0.630 (16)	10
82301 00 001	82301-04-04	1/4	1/4	0.335 (8.5)	1.504 (38.2)	0.630 (16)	0.630 (16)	10
82301 00 002	82301-04-06	1/4	3/8	0.335 (8.5)	1.484 (37.7)	0.630 (16)	0.787 (20)	10
82301 00 009	82301-04-08	1/4	1/2	0.335 (8.5)	1.644 (41.75)	0.630 (16)	0.945 (24)	10
82301 00 003	82301-06-06	3/8	3/8	0.354 (9)	1.406 (35.7)	0.787 (20)	0.787 (20)	10
82301 00 008	82301-06-08	3/8	1/2	0.354 (9)	1.565 (39.75)	0.787 (20)	0.945 (24)	10
82301 00 010	82301-06-12	3/8	3/4	0.354 (9)	1.585 (40.25)	0.787 (20)	1.260 (32)	10
82301 00 011	82301-08-08	1/2	1/2	0.413 (10.5)	1.663 (42.25)	0.827 (21)	0.945 (24)	10
82301 00 012	82301-08-12	1/2	3/4	0.413 (10.5)	1.683 (42.75)	0.827 (21)	1.260 (32)	10

Code	A	A1 (NPTF)	B	L	CH1	CH2	Pack
82301 00 004	1/8	1/4	0.276 (7)	1.406 (35.7)	0.551 (14)	0.630 (16)	10
82301 00 005	1/8	3/8	0.276 (7)	1.486 (37.75)	0.630 (16)	0.787 (20)	10
82301 00 006	1/8	1/2	0.276 (7)	1.644 (41.75)	0.630 (16)	0.945 (24)	10
82301 00 007	1/4	1/8	0.335 (8.5)	1.348 (34.25)	0.630 (16)	0.630 (16)	10
82301 00 001	1/4	1/4	0.335 (8.5)	1.504 (38.2)	0.630 (16)	0.630 (16)	10
82301 00 002	1/4	3/8	0.335 (8.5)	1.484 (37.7)	0.630 (16)	0.787 (20)	10
82301 00 009	1/4	1/2	0.335 (8.5)	1.644 (41.75)	0.630 (16)	0.945 (24)	10
82301 00 003	3/8	3/8	0.354 (9)	1.406 (35.7)	0.787 (20)	0.787 (20)	10
82301 00 008	3/8	1/2	0.354 (9)	1.565 (39.75)	0.787 (20)	0.945 (24)	10
82301 00 010	3/8	3/4	0.354 (9)	1.585 (40.25)	0.787 (20)	1.260 (32)	10
82301 00 011	1/2	1/2	0.413 (10.5)	1.663 (42.25)	0.827 (21)	0.945 (24)	10
82301 00 012	1/2	3/4	0.413 (10.5)	1.683 (42.75)	0.827 (21)	1.260 (32)	10
