WJM020025

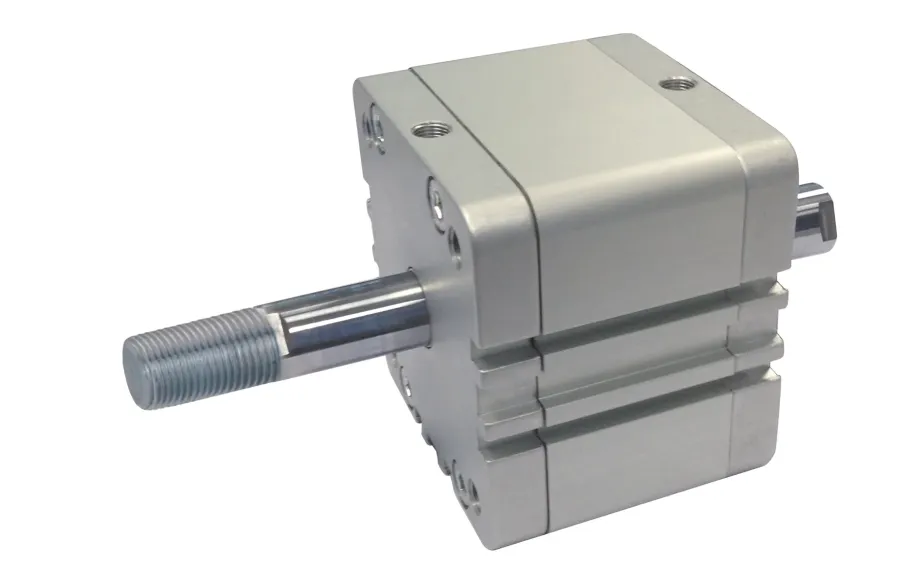

WJM - DOPPELTWIRKEND DURCHGEHENDER KOLBEN MAGNETISCH - Aussengewinde - Durchmesser von 20 bis 25

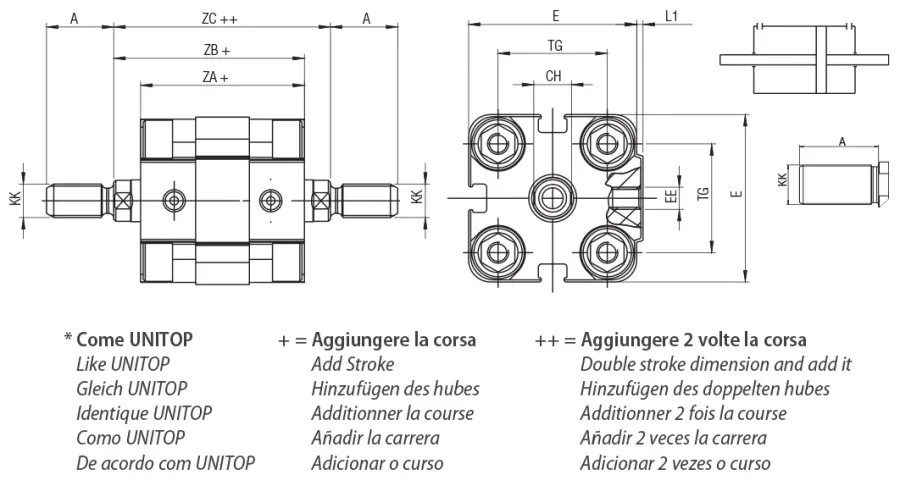

| Code | 3D-Zeichnungen | Nummer | Ø | Hub | Ø D | E | L1 | A | KK | CH | AF | KF | BG | LA | RT | G | TG | EE | PL | ZA+ | ZB+ | ZC++ | * | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WJM0200005 | Zugang anfordern | WJM 020 0005 | 20 | 5 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200010 | Zugang anfordern | WJM 020 0010 | 20 | 10 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200015 | Zugang anfordern | WJM 020 0015 | 20 | 15 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200020 | Zugang anfordern | WJM 020 0020 | 20 | 20 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200025 | Zugang anfordern | WJM 020 0025 | 20 | 25 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200030 | Zugang anfordern | WJM 020 0030 | 20 | 30 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200040 | Zugang anfordern | WJM 020 0040 | 20 | 40 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0200050 | Zugang anfordern | WJM 020 0050 | 20 | 50 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *39 | *45 | *51 | Gleich UNITOP | |
| WJM0250005 | Zugang anfordern | WJM 025 0005 | 25 | 5 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250010 | Zugang anfordern | WJM 025 0010 | 25 | 10 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250015 | Zugang anfordern | WJM 025 0015 | 25 | 15 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250020 | Zugang anfordern | WJM 025 0020 | 25 | 20 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250025 | Zugang anfordern | WJM 025 0025 | 25 | 25 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250030 | Zugang anfordern | WJM 025 0030 | 25 | 30 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250040 | Zugang anfordern | WJM 025 0040 | 25 | 40 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP | |
| WJM0250050 | Zugang anfordern | WJM 025 0050 | 25 | 50 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *39 | *45,5 | *51,5 | Gleich UNITOP |
