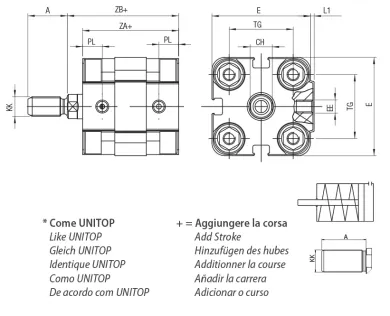

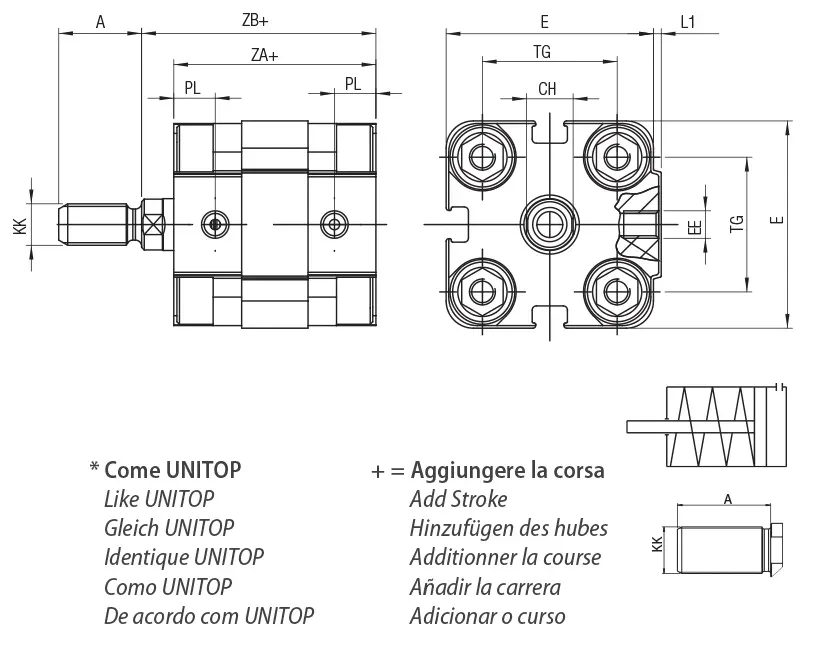

| Code | 3D-Zeichnungen | Nummer | Ø | Hub | Ø D | E | L1 | A | KK | CH | AF | KF | BG | LA | RT | G | TG | EE | PL | Ø D1 | T1 | ZA+ | ZB+ | * | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WBM0200005 | Zugang anfordern | WBM 020 0005 | 20 | 5 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *6 | *4 | *39 | *45 | Gleich UNITOP | |
| WBM0200010 | Zugang anfordern | WBM 020 0010 | 20 | 10 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *6 | *4 | *39 | *45 | Gleich UNITOP | |
| WBM0200015 | Zugang anfordern | WBM 020 0015 | 20 | 15 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *6 | *4 | *39 | *45 | Gleich UNITOP | |
| WBM0200020 | Zugang anfordern | WBM 020 0020 | 20 | 20 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *6 | *4 | *39 | *45 | Gleich UNITOP | |
| WBM0200025 | Zugang anfordern | WBM 020 0025 | 20 | 25 | 10 | 36 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 22 | M5 | 8 | *6 | *4 | *39 | *45 | Gleich UNITOP | |
| WBM0250005 | Zugang anfordern | WBM 025 0005 | 25 | 5 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *6 | *4 | 39 | 45,5 | Gleich UNITOP | |
| WBM0250010 | Zugang anfordern | WBM 025 0010 | 25 | 10 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *6 | *4 | 39 | 45,5 | Gleich UNITOP | |
| WBM0250015 | Zugang anfordern | WBM 025 0015 | 25 | 15 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *6 | *4 | 39 | 45,5 | Gleich UNITOP | |
| WBM0250020 | Zugang anfordern | WBM 025 0020 | 25 | 20 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *6 | *4 | 39 | 45,5 | Gleich UNITOP | |
| WBM0250025 | Zugang anfordern | WBM 025 0025 | 25 | 25 | 10 | 40 | 1,5 | 16 | M8X1,25 | 9 | 10 | M6 | 18,5 | 5 | M5 | - | 26 | M5 | 8 | *6 | *4 | 39 | 45,5 | Gleich UNITOP |
