90628

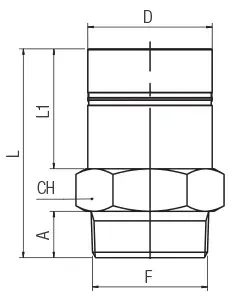

EINSCHRAUBVERSCHRAUBUNG NPTF
|
Code |
3D-Zeichnungen |
Nummer |
D |
F (NPTF) |
A |
L |
L1 |
CH |
* |
Verpackung |
|
906280001CJNT
|
-
Zugang anfordern
|
90628 00 01 CJ NT |
20 |
1/2 |
17 |
59 |
35 |
22 |
Aluminium |
2 |
|
906280001DHNT
|
-
Zugang anfordern
|
90628 00 01 DH NT |
20 |
3/4 |
17,5 |
60,5 |
35 |
27 |
Aluminium |
2 |
|
906280001NFNT
|
-
Zugang anfordern
|
90628 00 01 NF NT |
25 |
1/2 |
17 |
67 |
42 |
27 |
Aluminium |
2 |
|
9062800013INT
|
-
Zugang anfordern
|
90628 00 01 3I NT |
25 |
3/4 |
17,5 |
67,5 |
42 |
27 |
Aluminium |
2 |
|
906280001DLNT
|
-
Zugang anfordern
|
90628 00 01 DL NT |
25 |
1" |
21,5 |
73,5 |
42 |
34 |
Aluminium |
2 |
|
9062800014INT
|
-
Zugang anfordern
|
90628 00 01 4I NT |
32 |
1" |
21,5 |
83,5 |
52 |
34 |
Aluminium |
1 |
|
906280001F7NT
|
-
Zugang anfordern
|
90628 00 01 F7 NT |
32 |
1" 1/2 |
23 |
89,5 |
52 |
50 |
Aluminium |
1 |
|
906280001NENT
|
-
Zugang anfordern
|
90628 00 01 NE NT |
40 |
1" 1/2 |
23 |
93 |
55,5 |
50 |
Aluminium |
1 |
|
9062800016INT
|
-
Zugang anfordern
|
90628 00 01 6I NT |
50 |
1" 1/2 |
23 |
106 |
68,5 |
55 |
Aluminium |
1 |
|
906280001G5NT
|
-
Zugang anfordern
|
90628 00 01 G5 NT |
50 |
2" |
23,5 |
112 |
68,5 |
65 |
Aluminium |
1 |
|
9062800017INT
|
-
Zugang anfordern
|
90628 00 01 7I NT |
63 |
2" |
23,5 |
125,5 |
82 |
65 |
Aluminium |
1 |
|
90628000158NT
|
-
Zugang anfordern
|
90628 00 01 58 NT |
63 |
2" 1/2 |
35 |
139 |
82 |
75 |
Aluminium |
1 |
|
9062800117IAG
|
-
Zugang anfordern
|
90628 00 11 7I AG |
63 |
2" |
23,5 |
125,5 |
82 |
65 |
Aluminium |
1 |
|
90628001158AG
|
-
Zugang anfordern
|
90628 00 11 58 AG |
63 |
2" 1/2 |
35 |
139 |
82 |
75 |
Aluminium |
1 |
