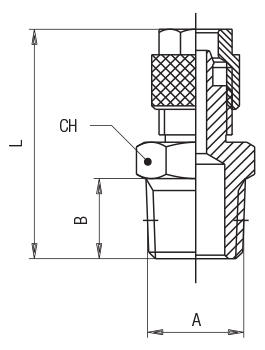

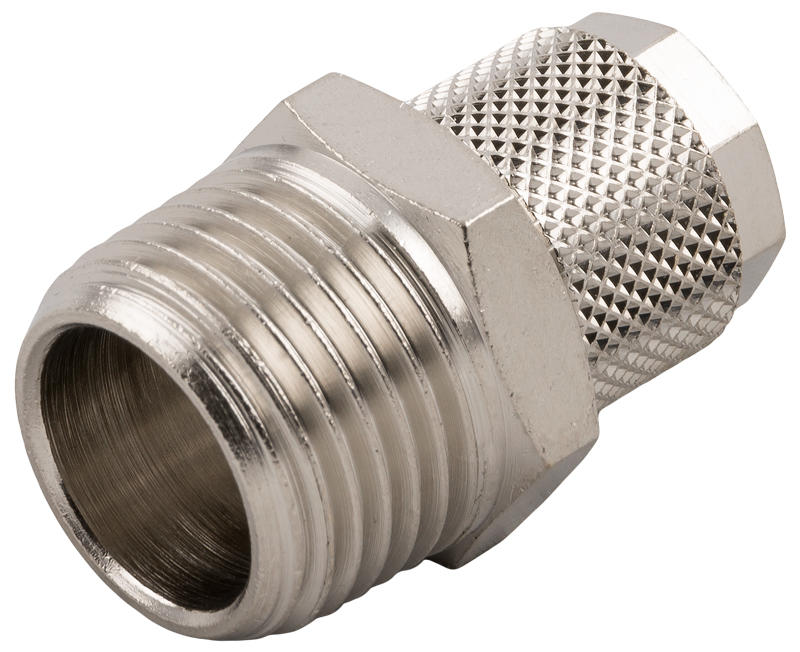

STRAIGHT MALE ADAPTOR (TAPER)

Code	3D Drawings	Tube	A	B	L	CH	Bag
01000 00 001	Request access	4/2,7	1/8	7,5	23,5	12	10
01000 00 002	Request access	5/3	1/8	7,5	23	12	10
01000 00 003	Request access	6/4	1/8	7,5	25,6	12	10
01000 00 004	Request access	6/4	1/4	11	29,6	14	10
01000 00 005	Request access	6/4	3/8	11,5	30	17	10
01000 00 006	Request access	8/6	1/8	7,5	26,9	14	10
01000 00 007	Request access	8/6	1/4	11	30,9	14	10
01000 00 008	Request access	8/6	3/8	11,5	31,4	17	10
01000 00 009	Request access	8/6	1/2	14	34	22	10
01000 00 010	Request access	10/8	1/8	7,5	29	14	10
01000 00 011	Request access	10/8	1/4	11	33	14	10
01000 00 012	Request access	10/8	3/8	11,5	33,5	17	10
01000 00 013	Request access	10/8	1/2	14	36,5	22	10
01000 00 014	Request access	12/10	3/8	11,5	35	17	10
01000 00 015	Request access	12/10	1/2	14	38	22	10
01000 00 016	Request access	15/12,5	1/2	14	40	22	10
