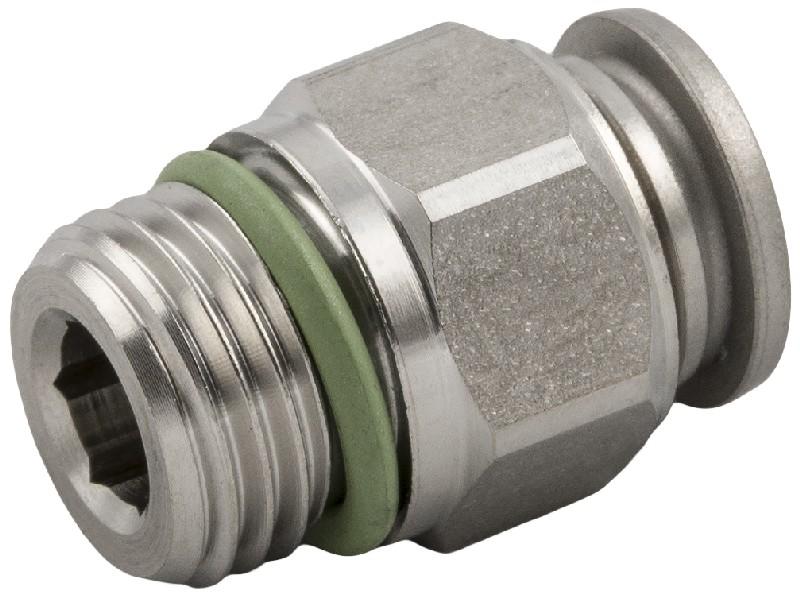

STRAIGHT MALE ADAPTOR (PARALLEL)

Code	3D Drawings	Tube	A	B	C	L	CH1	CH2	Bag
60020 00 011	Request access	4	M5	4	8	20	10	2	5
60020 00 001	Request access	4	1/8	6	13	19.5	10	3	5
60020 00 002	Request access	4	1/4	8	15	19.5	15	3	5
60020 00 013	Request access	6	M5	4	10	23	12	2	5
60020 00 003	Request access	6	1/8	6	13	23.5	13	4	5
60020 00 004	Request access	6	1/4	8	15	23.5	15	4	5
60020 00 005	Request access	8	1/8	6	13	25.5	14	5	5
60020 00 006	Request access	8	1/4	8	15	23.5	15	6	5
60020 00 007	Request access	10	1/4	8	16	30	17	8	2
60020 00 008	Request access	10	3/8	9	20	27	17	8	2
60020 00 012	Request access	10	1/2	10	25	30	22	8	2
60020 00 009	Request access	12	3/8	9	21	34	21	8	2
60020 00 010	Request access	12	1/2	10	25	31	22	10	2
60020 00 014	Request access	14	1/2	10	25	32	22	11	2
60020 00 015	Request access	16	3/8	9	24	36	24	10	2
60020 00 016	Request access	16	1/2	10	25	37	25	12	2
