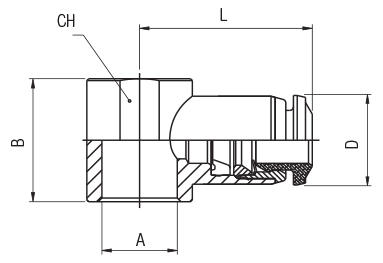

SINGLE BANJO BODY

Code	3D Drawings	Tube	A	B	L	CH	D	Bag
55500 00 001	Request access	4	M5	14	19.5	9	10	10
55500 00 002	Request access	4	M6	14	19.5	9	10	10
55500 00 003	Request access	4	1/8	16,5	21.5	14	10	10
55500 00 018	Request access	4	1/4	18,5	23.5	18	12	10
55500 00 004	Request access	5	M5	14	20.5	9	12	10
55500 00 005	Request access	5	M6	14	20.5	9	12	10
55500 00 006	Request access	5	1/8	16,5	22.5	14	12	10
55500 00 007	Request access	5	1/4	18,5	25	18	12	10
55500 00 008	Request access	6	M5	14	21	9	12	10
55500 00 009	Request access	6	M6	14	21	9	12	10
55500 00 010	Request access	6	1/8	16,5	23	14	12	10
55500 00 011	Request access	6	1/4	18,5	25,5	18	12	10
55500 00 012	Request access	8	1/8	16,5	23,5	14	14	10
55500 00 013	Request access	8	1/4	18,5	26	18	14	10
55500 00 014	Request access	8	3/8	22	27,5	21	14	10
55500 00 019	Request access	10	1/4	18,5	31	18	17	10
55500 00 015	Request access	10	3/8	22	30,5	21	17	10
55500 00 016	Request access	12	3/8	22	32,5	21	20	10
55500 00 017	Request access	12	1/2	26	35	26	20	10
