50550N

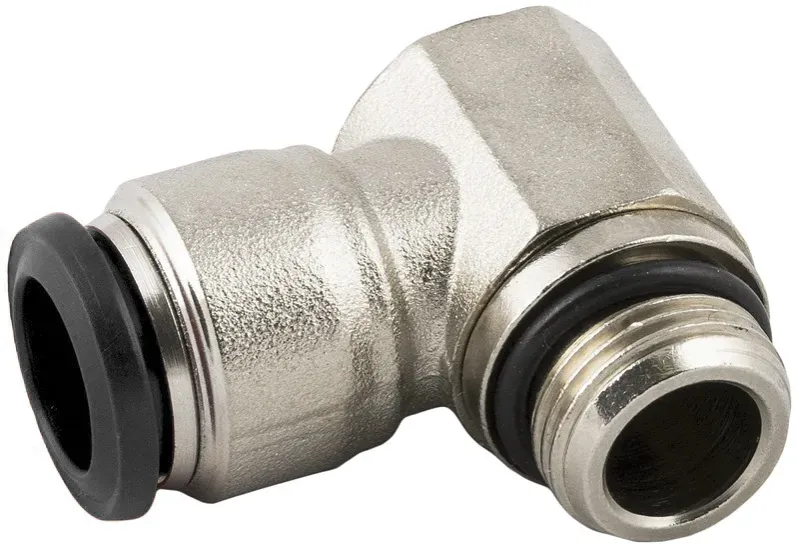

ORIENTING SINGLE BANJO BODY MALE

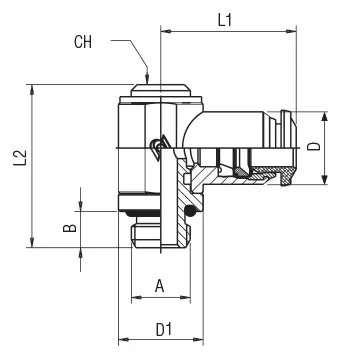

| Code | 3D Drawings | Tube | A | B | L1 | L2 | CH | D1 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50550 00 N01 | Request access | 4 | M5 | 3.6 | 19 | 24.5 | - | CH8 | 10 | 10 | |
| 50550 00 N02 | Request access | 4 | 1/8 | 5.4 | 21 | 28 | 5 | 14 | 10 | 10 | |
| 50550 00 N12 | Request access | 5 | M5 | 3.6 | 20 | 24,5 | - | CH8 | 12,5 | 10 | |
| 50550 00 N13 | Request access | 5 | 1/8 | 5.4 | 21,5 | 28 | 5 | 14 | 12,5 | 10 | |
| 50550 00 N14 | Request access | 5 | 1/4 | 7.1 | 24,5 | 31 | 6 | 17 | 12,5 | 10 | |
| 50550 00 N15 | Request access | 6 | M5 | 3.6 | 20,5 | 24,5 | - | CH8 | 12,5 | 10 | |
| 50550 00 N03 | Request access | 6 | 1/8 | 5.4 | 22,5 | 28 | 5 | 14 | 12,5 | 10 | |
| 50550 00 N04 | Request access | 6 | 1/4 | 7.1 | 25 | 31 | 6 | 17 | 12,5 | 10 | |
| 50550 00 N05 | Request access | 8 | 1/8 | 5.4 | 24 | 28 | 5 | 14 | 14 | 10 | |
| 50550 00 N06 | Request access | 8 | 1/4 | 7.1 | 26 | 31 | 6 | 17 | 14 | 10 | |
| 50550 00 N07 | Request access | 8 | 3/8 | 8.1 | 28 | 35,5 | 7 | 20 | 14 | 10 | |
| 50550 00 N08 | Request access | 10 | 1/4 | 7.1 | 29 | 31 | 6 | 17 | 17 | 10 | |
| 50550 00 N09 | Request access | 10 | 3/8 | 8.1 | 30,5 | 35,5 | 7 | 20 | 17 | 10 | |
| 50550 00 N11 | Request access | 12 | 3/8 | 8.1 | 32,5 | 35,5 | 7 | 20 | 21,5 | 10 |
