DOUBLE ACTING CUSHIONED MAGNETIC

Filter

EH

DOUBLE ACTING CUSHIONED MAGNETIC

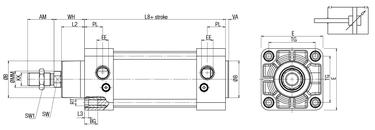

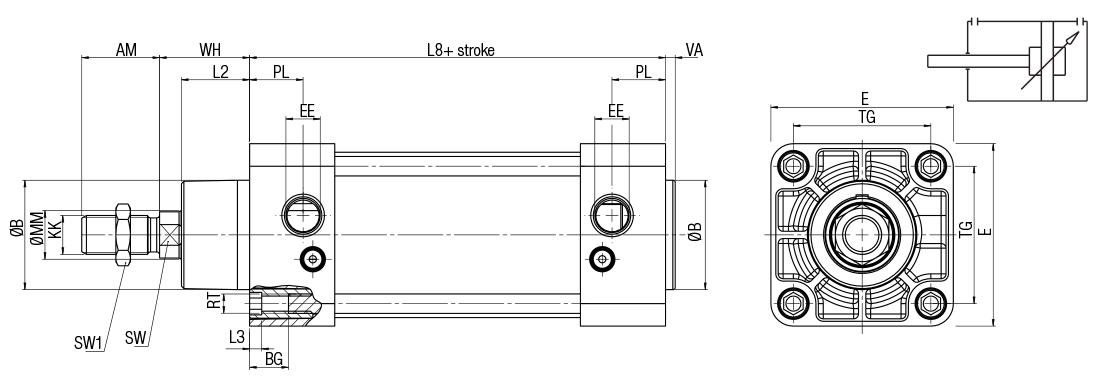

Code	3D Drawings	Ø	Stroke	Ø B d11	VA	L2	WH	Ø MM	SW	KK	AM	L8	BG	RT	E	TG	EE	PL	ZM
EH 160 0025 T	Request access	160	25	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0050 T	Request access	160	50	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0075 T	Request access	160	75	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0080 T	Request access	160	80	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0100 T	Request access	160	100	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0125 T	Request access	160	125	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0150 T	Request access	160	150	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0160 T	Request access	160	160	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0200 T	Request access	160	200	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0250 T	Request access	160	250	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0300 T	Request access	160	300	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0320 T	Request access	160	320	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0350 T	Request access	160	350	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0400 T	Request access	160	400	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0450 T	Request access	160	450	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0500 T	Request access	160	500	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0600 T	Request access	160	600	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0700 T	Request access	160	700	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0800 T	Request access	160	800	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 0900 T	Request access	160	900	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 160 1000 T	Request access	160	1000	65	6	55	80	40	36	M36X2	72	180	24	M16	180	140	G 3/4	29	340
EH 200 0025 T	Request access	200	25	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0050 T	Request access	200	50	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0075 T	Request access	200	75	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0080 T	Request access	200	80	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0100 T	Request access	200	100	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0125 T	Request access	200	125	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0150 T	Request access	200	150	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0160 T	Request access	200	160	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0200 T	Request access	200	200	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0250 T	Request access	200	320	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0300 T	Request access	200	300	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0320 T	Request access	200	320	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0350 T	Request access	200	350	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0400 T	Request access	200	400	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0450 T	Request access	200	450	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0500 T	Request access	200	500	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0600 T	Request access	200	600	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0700 T	Request access	200	700	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0800 T	Request access	200	800	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 0900 T	Request access	200	900	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 200 1000 T	Request access	200	1000	75	6	60	95	40	36	M36X2	72	180	24	M16	220	175	G 3/4	29	370
EH 250 0025 T	Request access	250	25	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0050 T	Request access	250	50	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0075 T	Request access	250	75	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0080 T	Request access	250	80	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0100 T	Request access	250	100	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0125 T	Request access	250	125	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0150 T	Request access	250	150	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0160 T	Request access	250	160	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0200 T	Request access	250	200	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0250 T	Request access	250	320	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0300 T	Request access	250	300	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0320 T	Request access	250	320	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0350 T	Request access	250	350	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0400 T	Request access	250	400	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0450 T	Request access	250	450	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0500 T	Request access	250	500	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0600 T	Request access	250	600	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0700 T	Request access	250	700	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0800 T	Request access	250	800	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 0900 T	Request access	250	900	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 250 1000 T	Request access	250	1000	90	10	75	105	50	46	M42X2	84	200	25	M20	275	220	G 1"	31	410
EH 320 0025 T	Request access	320	25	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0050 T	Request access	320	50	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0075 T	Request access	320	75	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0080 T	Request access	320	80	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0100 T	Request access	320	100	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0125 T	Request access	320	125	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0150 T	Request access	320	150	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0160 T	Request access	320	160	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0200 T	Request access	320	200	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0250 T	Request access	320	320	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0300 T	Request access	320	300	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0320 T	Request access	320	320	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0350 T	Request access	320	350	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0400 T	Request access	320	400	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0450 T	Request access	320	450	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0500 T	Request access	320	500	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0600 T	Request access	320	600	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0700 T	Request access	320	700	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0800 T	Request access	320	800	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 0900 T	Request access	320	900	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
EH 320 1000 T	Request access	320	1000	110	10	90	120	63	55	M48X2	96	220	30	M24	350	270	G 1"	30	460
