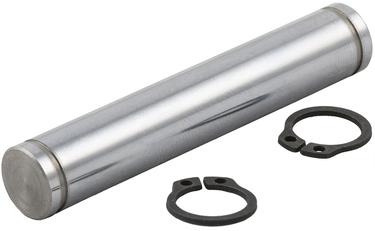

PIN WITH SEEGER - STEEL
prodotto___accessoricilindri_vpe_iso15552-d
prodotto___accessoricilindri_vpe_iso15552-f

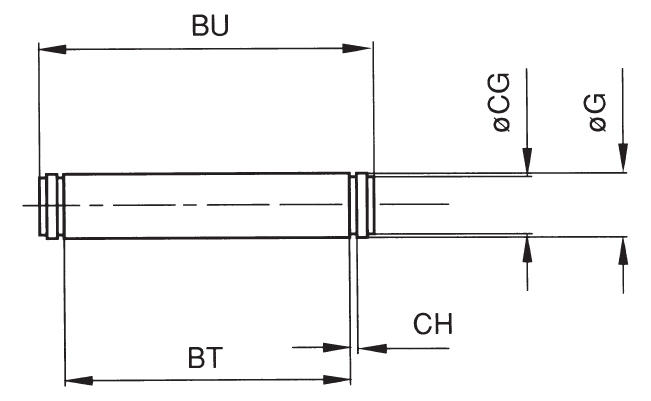

Code 3D Drawings Ø G BT BU CG CH
VPE 032 Request access 32 10 46 53 9.6 1,1
VPE 040 Request access 40 12 53 60 11.5 1,1
VPE 050 Request access 50 12 61 68 11.5 1,1
VPE 063 Request access 63 16 71 78 15.2 1,1
VPE 080 Request access 80 16 91 98 15.2 1,1
VPE 100 Request access 100 20 111 118 19 1,3
VPE 125 Request access 125 25 132 139 23.9 1,3
VPE 160 Request access 160 - 200 30 171,5 178 28,6 1,6
VPE 250 Request access 250 40 202 211 37,5 1,85
VPE 320 Request access 320 45 222 236 42,5 1,85
