SOLENOID PILOT VALVE - METRIC

Code	USA Ref	3D Drawings	Ways	Reactuation	Function	Size	Bag
08V S4 4 NC 03	08VS44NC03	Request access	4/2	MONOSTABLE WITH PNEUMATIC RETURN	NC	G 1/4	1
08V S5 4 NC 03	08VS54NC03	Request access	4/2	MONOSTABLE WITH PNEUMATIC RETURN + SPRING	NC	G 1/4	1

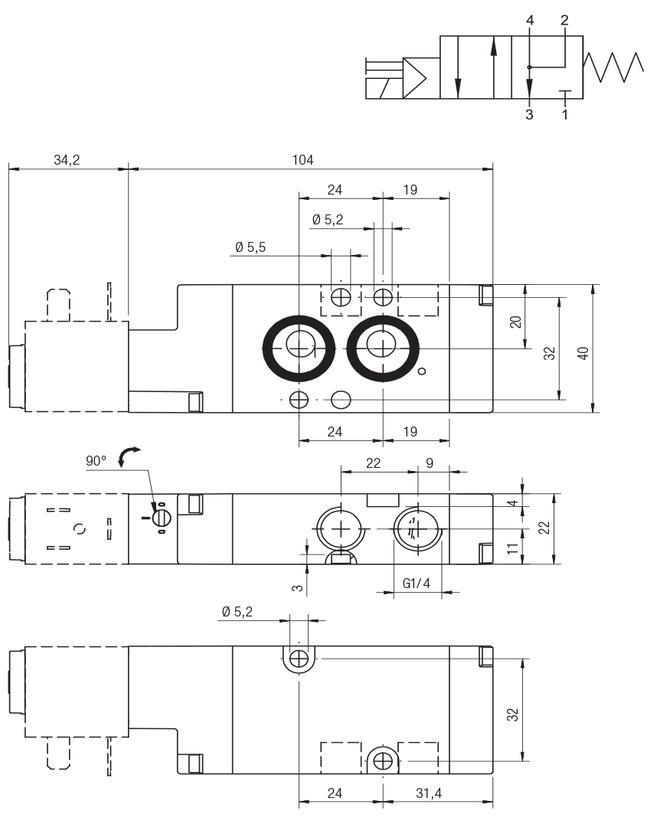

08V S0 4 NC 03	08VS04NC03	Request access	4/2	MONOSTABLE WITH SPRING RETURN	NC	G 1/4	1

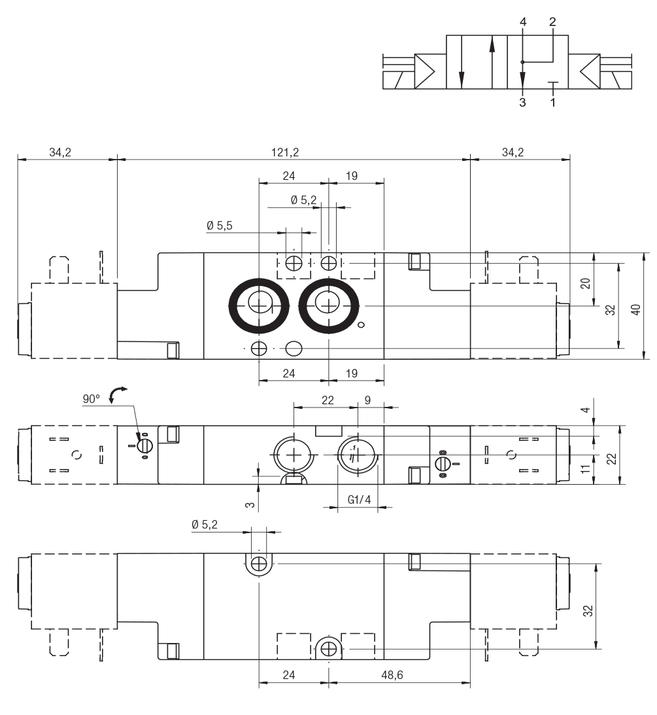

08V S1 4 00 03	08VS140003	Request access	4/2	BISTABLE		G 1/4	1
08V S4 5 00 03	08VS450003	Request access	5/2	MONOSTABLE WITH PNEUMATIC RETURN		G 1/4	1

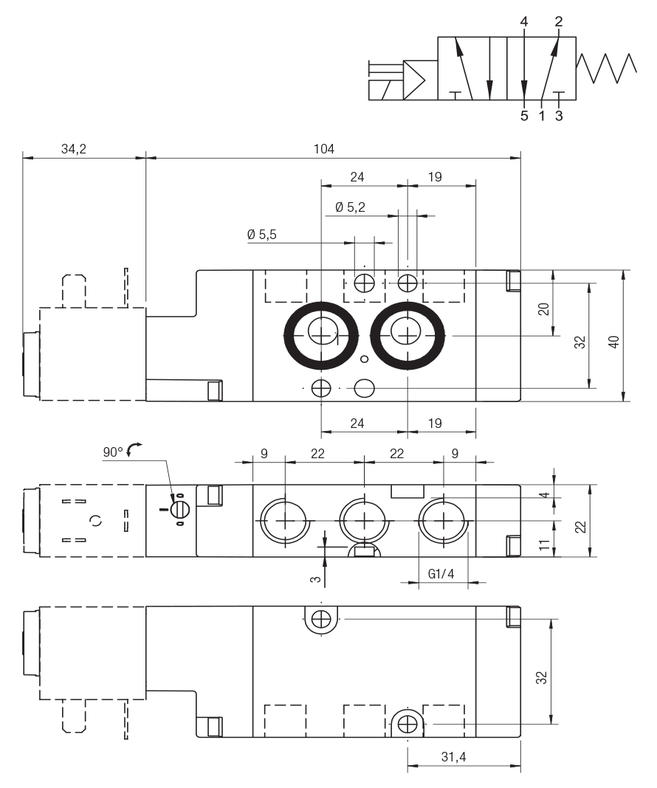

08V S0 5 00 03	08VS050003	Request access	5/2	MONOSTABLE WITH SPRING RETURN		G 1/4	1

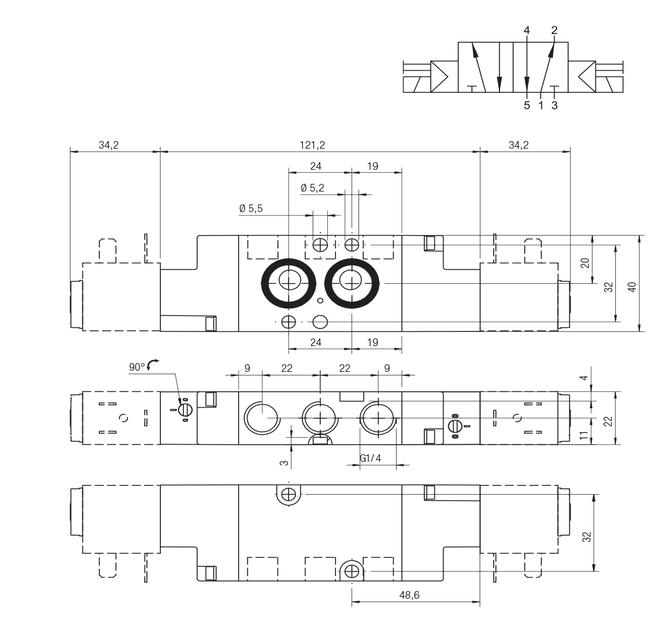

08V S1 5 00 03	08VS150003	Request access	5/2	BISTABLE		G 1/4	1
