01VB01 NPTF

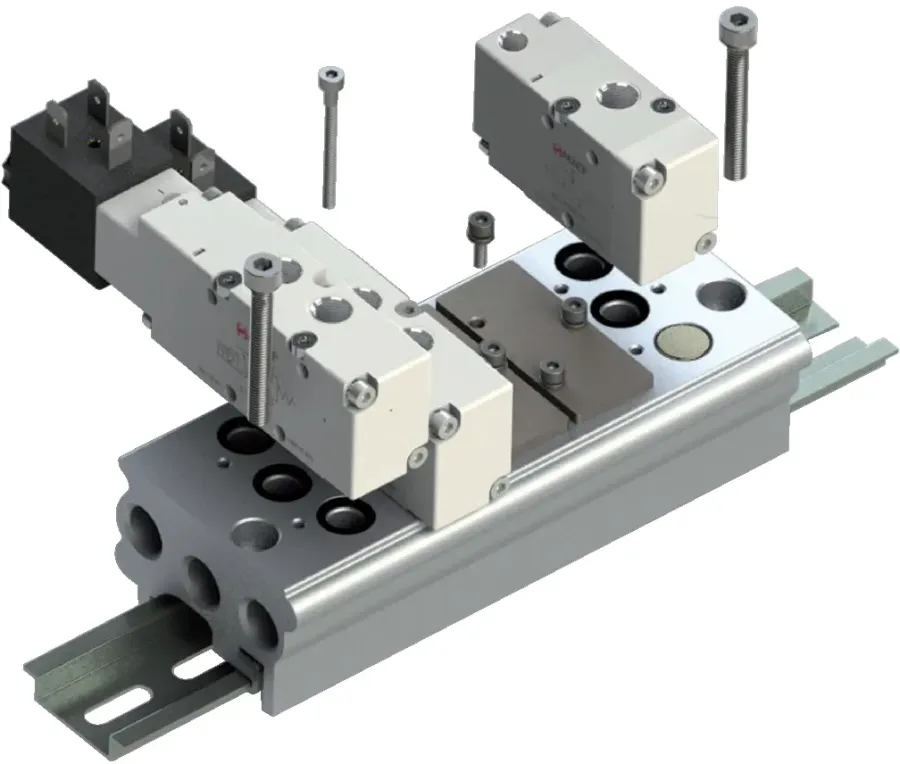

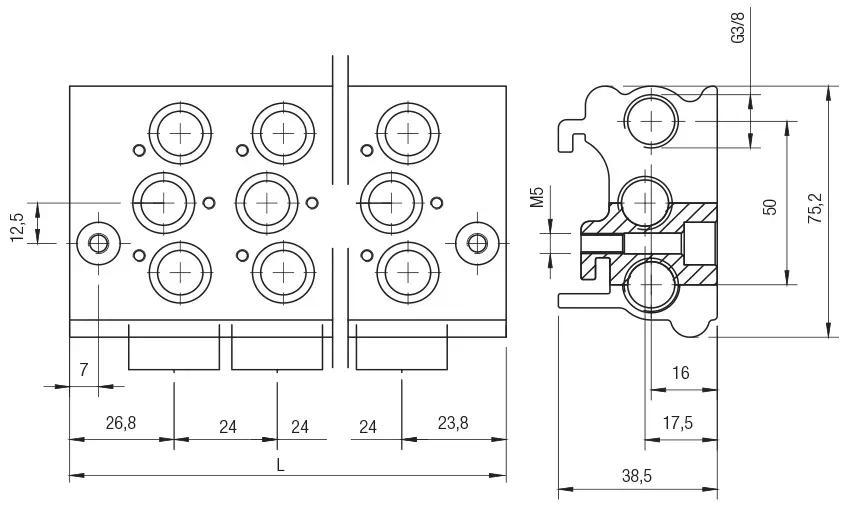

MANIFOLD PLATES FOR VALVES 01V - 1/4 NPTF
The bases are supplied with screws and O-Ring for attachment of the valves.
| Code | USA Ref | 3D Drawings | Stations | L | Size | Pack. | |
|---|---|---|---|---|---|---|---|
| 01V B0 1 00 02 N | 01VB010002N | Request access | 2 | 75 | 1/4 NPTF | 1 | |
| 01V B0 1 00 03 N | 01VB010003N | Request access | 3 | 99 | 1/4 NPTF | 1 | |
| 01V B0 1 00 04 N | 01VB010004N | Request access | 4 | 123 | 1/4 NPTF | 1 | |
| 01V B0 1 00 05 N | 01VB010005N | Request access | 5 | 147 | 1/4 NPTF | 1 | |
| 01V B0 1 00 06 N | 01VB010006N | Request access | 6 | 171 | 1/4 NPTF | 1 | |
| 01V B0 1 00 07 N | 01VB010007N | Request access | 7 | 195 | 1/4 NPTF | 1 | |
| 01V B0 1 00 08 N | 01VB010008N | Request access | 8 | 219 | 1/4 NPTF | 1 | |
| 01V B0 1 00 09 N | 01VB010009N | Request access | 9 | 243 | 1/4 NPTF | 1 | |
| 01V B0 1 00 10 N | 01VB010010N | Request access | 10 | 267 | 1/4 NPTF | 1 |
