01VB00 NPTF

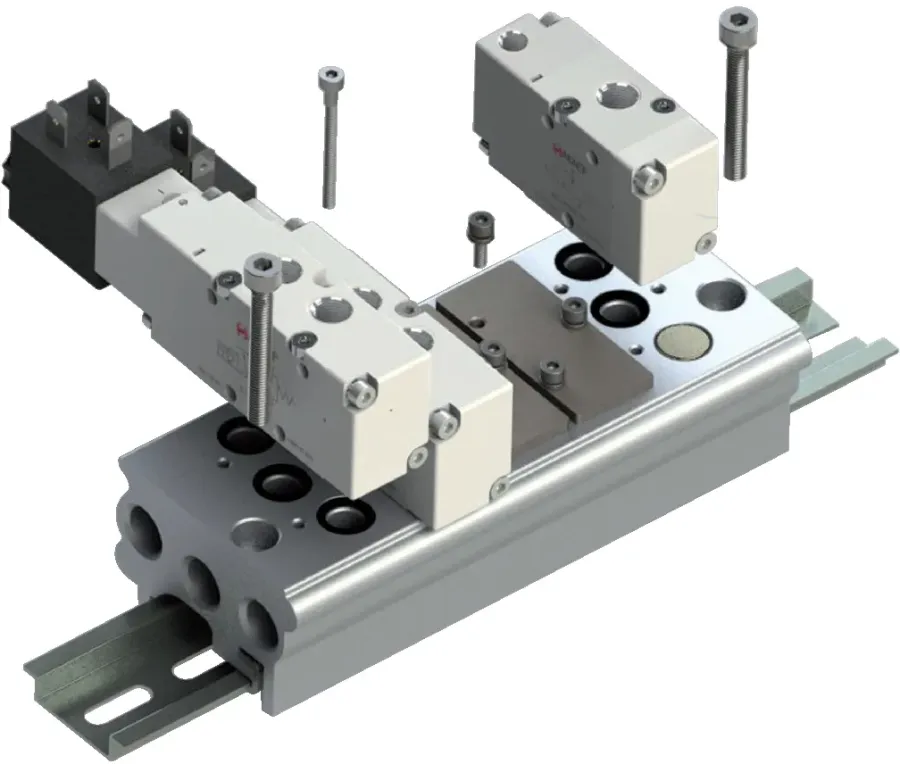

MANIFOLD BASE FOR VALVES 01V - 1/8 NPTF
The bases are supplied with screws and O-Ring for attachment of the valves.

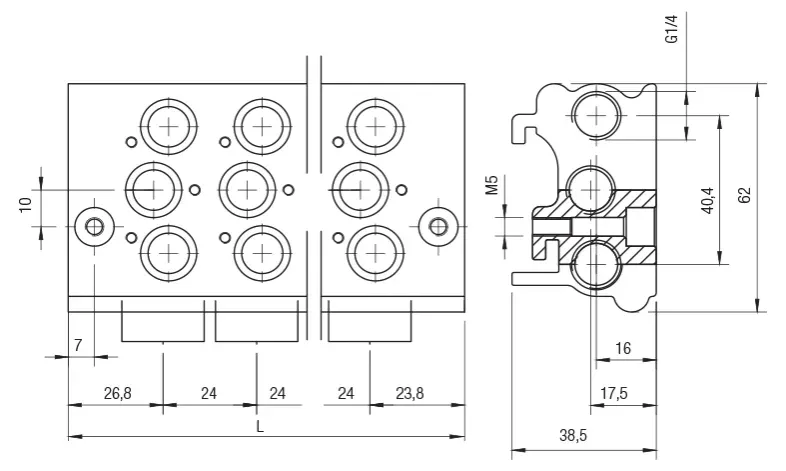

| Code | USA Ref | 3D Drawings | Stations | L | Size | Pack. | |
|---|---|---|---|---|---|---|---|
| 01V B0 0 00 02 N | 01VB000002N | Request access | 2 | 75 | 1/8 NPTF | 1 | |
| 01V B0 0 00 03 N | 01VB000003N | Request access | 3 | 99 | 1/8 NPTF | 1 | |
| 01V B0 0 00 04 N | 01VB000004N | Request access | 4 | 123 | 1/8 NPTF | 1 | |
| 01V B0 0 00 05 N | 01VB000005N | Request access | 5 | 147 | 1/8 NPTF | 1 | |
| 01V B0 0 00 06 N | 01VB000006N | Request access | 6 | 171 | 1/8 NPTF | 1 | |
| 01V B0 0 00 07 N | 01VB000007N | Request access | 7 | 195 | 1/8 NPTF | 1 | |
| 01V B0 0 00 08 N | 01VB000008N | Request access | 8 | 219 | 1/8 NPTF | 1 | |
| 01V B0 0 00 09 N | 01VB000009N | Request access | 9 | 243 | 1/8 NPTF | 1 | |
| 01V B0 0 00 10 N | 01VB000010N | Request access | 10 | 267 | 1/8 NPTF | 1 |
