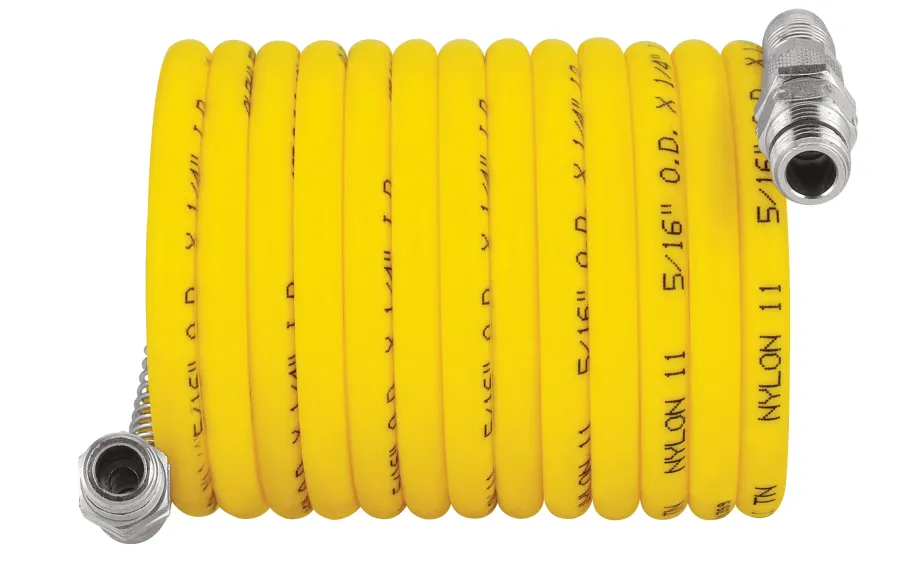

RECOIL ASSEMBLIES

Code	USA Ref	3D Drawings	OD mm	ID mm	Wall mm	Color	Working Pressure (at 68°F)	Burst Pressure (at 68°F)	Bending Radius mm	Standard Pack
UX R811 043 012	R811-043-012	Request access	4	2.5	0.75	Natural	174 psi	536 psi	20	100' Bag
UX R811 043 025	R811-043-025	Request access	4	2.5	0.75	Black	174 psi	536 psi	20	100' Bag
UX R811 043 050	R811-043-050	Request access	4	2.5	0.75	Red	174 psi	536 psi	20	100' Bag
UX R811 043 100	R811-043-100	Request access	4	2.5	0.75	Blue	174 psi	536 psi	20	100' Bag
UX R811 053 012	R811-053-012	Request access	6	4	1	Natural	159 psi	464 psi	30	100' Bag
UX R811 053 025	R811-053-025	Request access	6	4	1	Black	159 psi	464 psi	30	100' Bag
UX R811 053 050	R811-053-050	Request access	6	4	1	Red	159 psi	464 psi	30	100' Bag
UX R811 053 100	R811-053-100	Request access	6	4	1	Blue	159 psi	464 psi	30	100' Bag
UX R811 083 012	R811-083-012	Request access	8	5.5	1.25	Natural	145 psi	435 psi	45	100' Bag
UX R811 083 025	R811-083-025	Request access	8	5.5	1.25	Black	145 psi	435 psi	45	100' Bag
UX R811 083 050	R811-083-050	Request access	8	5.5	1.25	Red	145 psi	435 psi	45	100' Bag
UX R811 083 100	R811-083-100	Request access	8	5.5	1.25	Blue	145 psi	435 psi	45	100' Bag
