84000

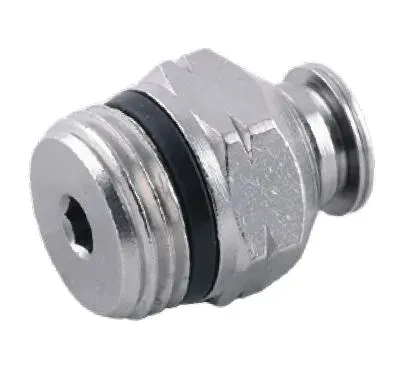

STRAIGHT MALE ADAPTOR - SWIFTFIT - LOW PRESSURE

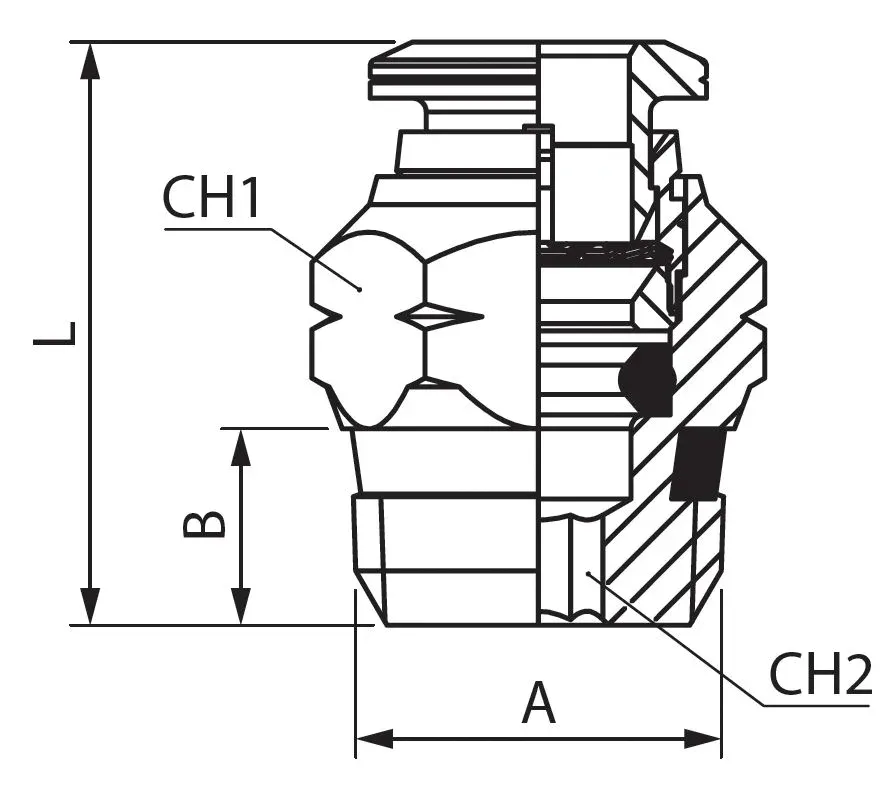

| Code | USA Ref | 3D Drawings | Tube | A | B | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|
| 84000 00 006 | 84000-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.827 (21) | 0.551 (14) | 0.157 (4) | 25 | |
| 84000 00 007 | 84000-04-06 | Request access | 1/4 | 3/8 | 0.295 (7.5) | 0.925 (23.5) | 0.669 (17) | 0.157 (4) | 25 | |
| 84000 00 012 | 84000-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 1.102 (28) | 0.669 (17) | 0.276 (7) | 25 | |
| 84000 00 013 | 84000-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 1.024 (26) | 0.669 (17) | 0.276 (7) | 25 |
