84211

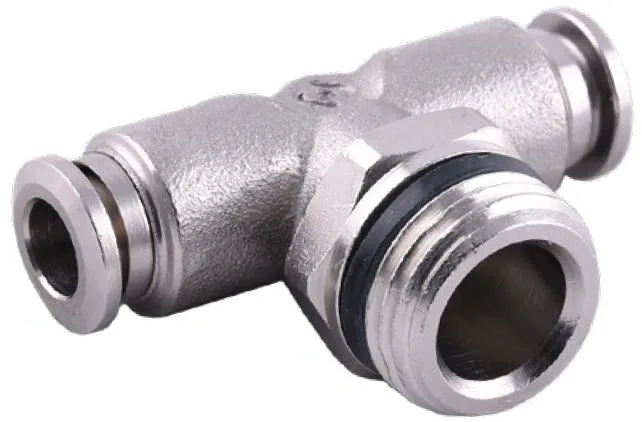

ORIENTING TEE MALE ADAPTOR CENTRE LEG - SWIFTFIT - LOW PRESSURE

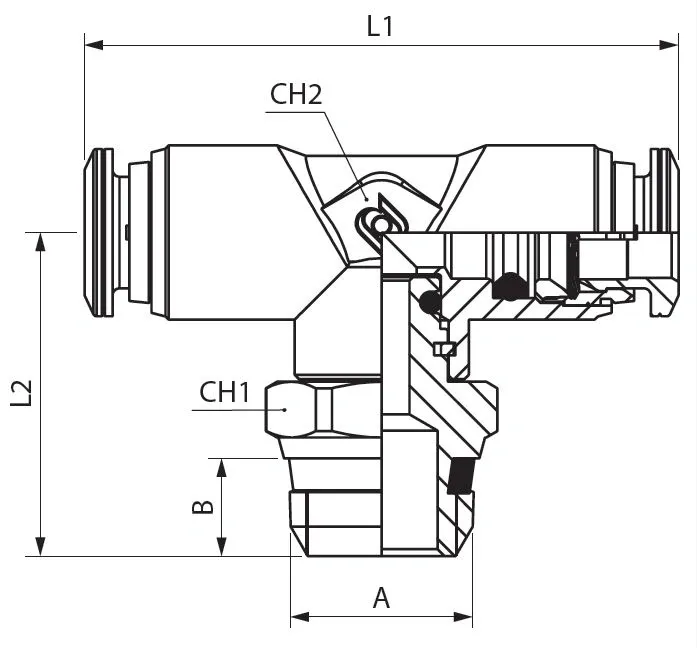

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 84211 00 006 | 84210-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 1.673 (42.5) | 0.906 (23) | 0.591 (15) | 0.433 (11) | 25 | |
| 84211 00 014 | 84210-04-06 | Request access | 1/4 | 3/8 | 0.295 (7.5) | 1.673 (42.5) | 0.925 (23.5) | 0.669 (17) | 0.433 (11) | 25 | |
| 84211 00 007 | 84210-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 2.106 (53.5) | 1.142 (29) | 0.630 (16) | 0.551 (14) | 25 | |
| 84211 00 008 | 84210-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 2.106 (53.5) | 1.063 (27) | 0.669 (17) | 0.551 (14) | 25 |
