84111

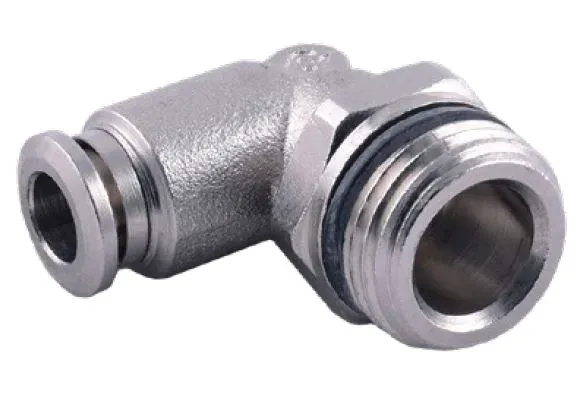

ORIENTING ELBOW MALE ADAPTOR - SWIFTFIT - LOW PRESSURE

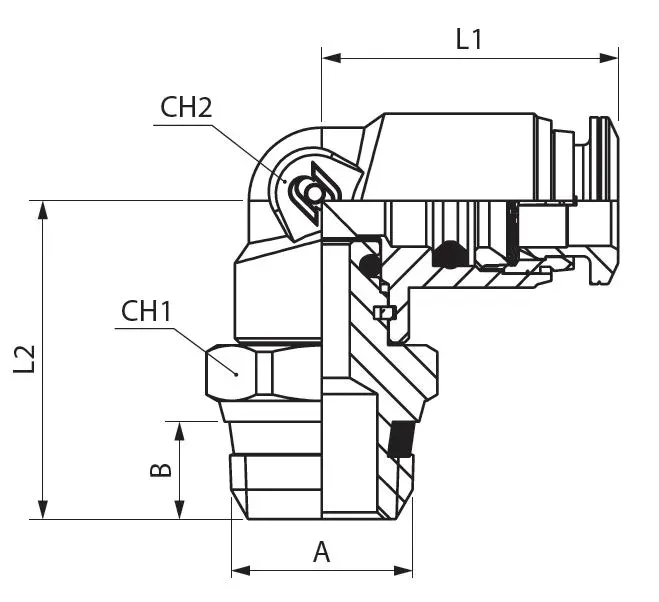

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 84111 00 006 | 84110-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.846 (21.5) | 0.906 (23) | 0.433 (11) | 0.591 (15) | 25 | |
| 84111 00 007 | 84110-04-06 | Request access | 1/4 | 3/8 | 0.295 (7.5) | 0.846 (21.5) | 0.925 (23.5) | 0.669 (17) | 0.669 (17) | 25 | |
| 84111 00 012 | 84110-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 1.043 (26.5) | 1.043 (26.5) | 0.630 (16) | 0.630 (16) | 25 | |
| 84111 00 013 | 84110-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 1.043 (26.5) | 0.965 (24.5) | 0.669 (17) | 0.669 (17) | 25 |
