Fittings and Connectors
Push-In Fittings
MIST FIT - INCH Series - Low Pressure
FITTING END OF LINE FOR NOZZLE ADAPTER - UNC - LOW PRESSURE
Filter
Material
Brass
Pipe diameter
1/4
3/8
Thread
10 - 24 UNC
Figure
L
Unit of measure
INCH
Connection type
Tube - Fix Thread
84131

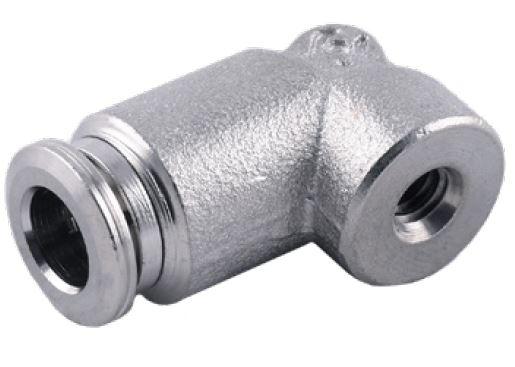

FITTING END OF LINE FOR NOZZLE ADAPTER - UNC - LOW PRESSURE
Catalog
Certificates
Aignep Scan Labels
Selected Aignep Scan labels
Loading...
Code
USA Ref

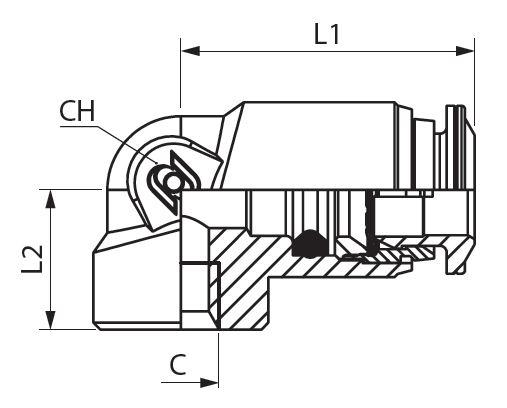

3D Drawings
Tube
C
L1
L2
CH
Bag
84131 00 001
84130-04-24
-
Request access
1/4
10 - 24 UNC
0.827 (21)
0.394 (10)
0.433 (11)
25
84131 00 002
84130-06-24
-
Request access
3/8
10 - 24 UNC
1.024 (26)
0.511 (13)
0.551 (14)
25
