89211

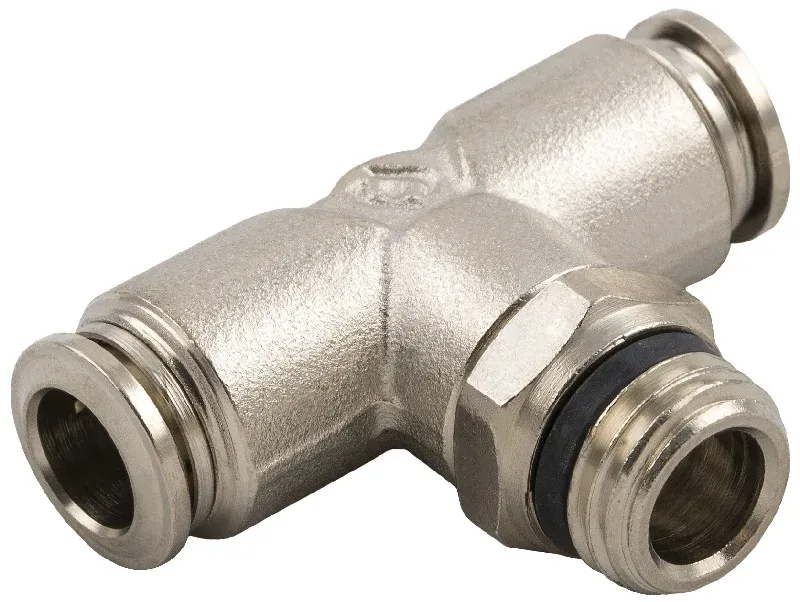

SWIVEL BRANCH TEE - SWIFTFIT

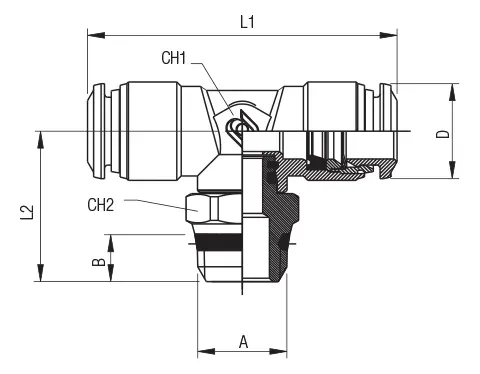

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 89211 00 001 | 89210-02-02 | Request access | 1/8 | 1/8 | 0.217 (5.5) | 1.299 (33) | 0.669 (17) | 0.354 (9) | 0.512 (13) | 0.394 (10) | 10 | |
| 89211 00 002 | 89210-02-04 | Request access | 1/8 | 1/4 | 0.276 (7) | 1.299 (33) | 0.787 (20) | 0.354 (9) | 0.591 (15) | 0.394 (10) | 10 | |
| 89211 00 003 | 89210-53-02 | Request access | 5/32 (4) | 1/8 | 0.217 (5.5) | 1.299 (33) | 0.787 (20) | 0.354 (9) | 0.512 (13) | 0.394 (10) | 10 | |
| 89211 00 004 | 89210-53-04 | Request access | 5/32 (4) | 1/4 | 0.276 (7) | 1.299 (33) | 0.846 (21.5) | 0.354 (9) | 0.591 (15) | 0.394 (10) | 10 | |
| 89211 00 005 | 89210-04-02 | Request access | 1/4 | 1/8 | 0.217 (5.5) | 1.575 (40) | 0.787 (20) | 0.433 (11) | 0.512 (13) | 0.492 (12.5) | 10 | |
| 89211 00 006 | 89210-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 1.575 (40) | 0.846 (21.5) | 0.433 (11) | 0.630 (16) | 0.492 (12.5) | 10 | |
| 89211 00 007 | 89210-04-06 | Request access | 1/4 | 3/8 | 0.295 (7.5) | 1.575 (40) | 0.866 (22) | 0.433 (11) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 89211 00 016 | 89210-05-02 | Request access | 5/16 (8) | 1/8 | 0.217 (5.5) | 1.772 (45) | 1.004 (25.5) | 0.512 (13) | 0.512 (13) | 0.571 (14.5) | 10 | |
| 89211 00 015 | 89210-05-04 | Request access | 5/16 (8) | 1/4 | 0.276 (7) | 1.772 (45) | 1.004 (25.5) | 0.512 (13) | 0.591 (15) | 0.571 (14.5) | 10 | |
| 89211 00 017 | 89210-05-06 | Request access | 5/16 (8) | 3/8 | 0.295 (7.5) | 1.772 (45) | 1.024 (26) | 0.512 (13) | 0.669 (17) | 0.571 (14.5) | 10 | |
| 89211 00 014 | 89210-06-02 | Request access | 3/8 | 1/8 | 0.217 (5.5) | 2.047 (52) | 1.043 (26.5) | 0.551 (14) | 0.551 (14) | 0.689 (17.5) | 10 | |
| 89211 00 008 | 89210-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 2.047 (52) | 1.142 (29) | 0.551 (14) | 0.630 (16) | 0.689 (17.5) | 10 | |
| 89211 00 009 | 89210-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 2.047 (52) | 1.063 (27) | 0.551 (14) | 0.669 (17) | 0.689 (17.5) | 10 | |
| 89211 00 010 | 89210-06-08 | Request access | 3/8 | 1/2 | 0.354 (9) | 2.047 (52) | 1.220 (31) | 0.551 (14) | 0.827 (21) | 0.689 (17.5) | 10 | |
| 89211 00 011 | 89210-08-04 | Request access | 1/2 | 1/4 | 0.276 (7) | 2.402 (61) | 1.240 (31.5) | 0.630 (16) | 0.630 (16) | 0.846 (21.5) | 10 | |
| 89211 00 012 | 89210-08-06 | Request access | 1/2 | 3/8 | 0.295 (7.5) | 2.402 (61) | 1.161 (29.5) | 0.630 (16) | 0.669 (17) | 0.846 (21.5) | 10 | |
| 89211 00 013 | 89210-08-08 | Request access | 1/2 | 1/2 | 0.354 (9) | 2.402 (61) | 1.260 (32) | 0.630 (16) | 0.827 (21) | 0.846 (21.5) | 10 |
