Filter

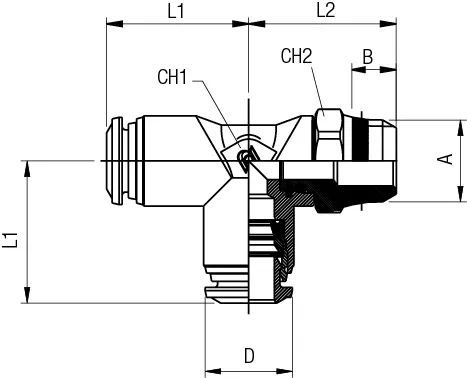

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 87223 00 001 | 87223-02-02 | Request access | 1/8 | 1/8 | .216 (5,5) | .650 (16,5) | .728 (18,5) | .354 (9) | .511 (13) | .394 (10) | 10 | |
| 87223 00 002 | 87223-02-04 | Request access | 1/8 | 1/4 | .334 (7) | .650 (16,5) | .807 (20,5) | .354 (9) | .591 (15) | .394 (10) | 10 | |
| 87223 00 003 | 87223-53-02 | Request access | 5/32 (4) | 1/8 | .216 (5,5) | .649 (17) | .787 (20) | .354 (9) | .511 (13) | .394 (10) | 10 | |
| 87223 00 004 | 87223-53-04 | Request access | 5/32 (4) | 1/4 | .275 (7) | .649 (17) | .846 (21,5) | .354 (9) | .591 (15) | .394 (10) | 10 | |
| 87223 00 005 | 87223-04-02 | Request access | 1/4 | 1/8 | .216 (5,5) | .846 (21,5) | .846 (21,5) | .433 (11) | .511 (13) | .493 (12,5) | 10 | |
| 87223 00 006 | 87223-04-04 | Request access | 1/4 | 1/4 | .275 (7) | .846 (21,5) | .905 (23) | .433 (11) | .591 (15) | .493 (12,5) | 10 | |
| 87223 00 007 | 87223-04-06 | Request access | 1/4 | 3/8 | .295 (7,5) | .846 (21,5) | .925 (23,5) | .433 (11) | .669 (17) | .493 (12,5) | 10 | |
| 87223 00 008 | 87223-05-02 | Request access | 5/16 (8) | 1/8 | .216 (5,5) | .886(22,5) | .984 (24) | .512 (13) | .512( 13) | .511 (13) | 10 | |
| 87223 00 009 | 87223-05-04 | Request access | 5/16 (8) | 1/4 | .275 (7) | .886(22,5) | .984 (24) | .512 (13) | .591 (15) | .591 (15) | 10 | |
| 87223 00 010 | 87223-05-06 | Request access | 5/16 (8) | 3/8 | .295 (7,5) | .886(22,5) | .964 (24,5) | .512 (13) | .512 (13) | .669 (17) | 10 | |
| 87223 00 018 | 87223-05-08 | Request access | 5/16 (8) | 1/2 | .354 (9) | .885 (22,5) | 1.102 (28) | .511 (13) | .826 (21) | .571 (14,5) | 10 | |
| 87223 00 011 | 87223-06-02 | Request access | 3/8 | 1/8 | .216 (5,5) | 1.062 (27) | 1.023 (26) | .551 (14) | .551 (14) | .669 (17,5) | 10 | |
| 87223 00 012 | 87223-06-04 | Request access | 3/8 | 1/4 | .275 (7) | 1.062 (27) | 1.122 (28,5) | .551 (14) | .630 (16) | .669 (17,5) | 10 | |
| 87223 00 013 | 87223-06-06 | Request access | 3/8 | 3/8 | .295 (7,5) | 1.062 (27) | 1.102 (28) | .551 (14) | .512(13) | .669 (17,5) | 10 | |
| 87223 00 014 | 87223-06-08 | Request access | 3/8 | 1/2 | .354 (9) | 1.062 (27) | 1.141 (29) | .551 (14) | .827 (21) | .669 (17,5) | 10 | |
| 87223 00 015 | 87223-08-04 | Request access | 1/2 | 1/4 | .275 (7) | 1.240 (31,5) | 1.224 (31,1) | .630 (16) | .630 (16) | .846 (21,5) | 10 | |
| 87223 00 016 | 87223-08-06 | Request access | 1/2 | 3/8 | .295 (7,5) | 1.240 (31,5) | 1.145 (29,1) | .630 (16) | .787 (20) | .846 (21,5) | 10 | |
| 87223 00 017 | 87223-08-08 | Request access | 1/2 | 1/2 | .354 (9) | 1.240 (31,5) | 1.244 (31.6) | .630 (16) | .827 (21) | .846 (21,5) | 10 |
