87111

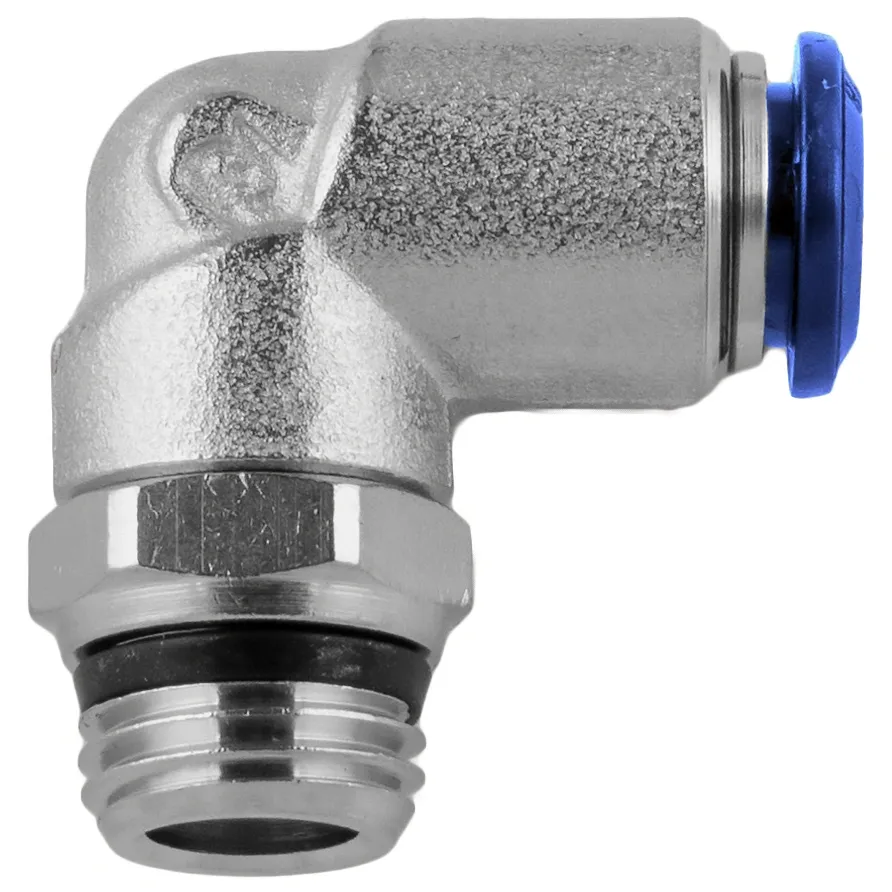

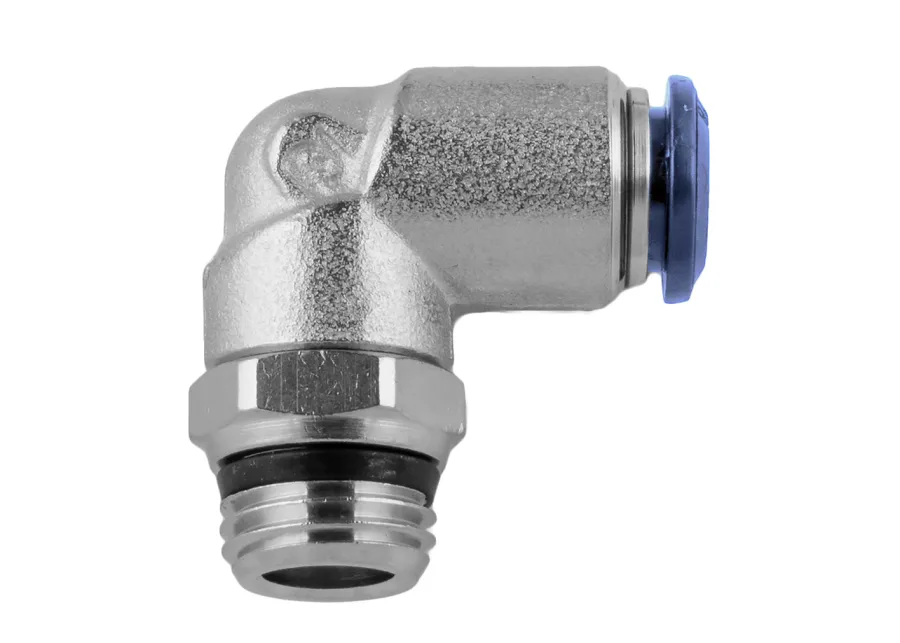

SWIVEL ELBOW - SWIFTFIT

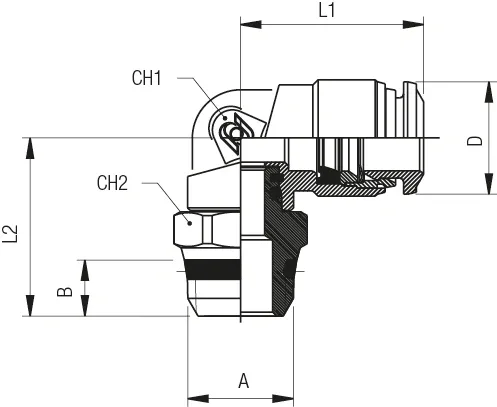

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	Bag
87111 00 017	87111-08-08	Request access	1/2	1/2	.354 (9)	1.240 (31,5)	1.188 (30,2)	.630 (16)	.827 (21)	10
87111 00 016	87111-08-06	Request access	1/2	3/8	.295 (7,5)	1.240 (31,5)	1.090 (27,7)	.630 (16)	.669 (17)	10
87111 00 015	87111-08-04	Request access	1/2	1/4	.276 (7)	1.240 (31,5)	1.169 (29,7)	.630 (16)	.630 (16)	10
87111 00 014	87111-06-08	Request access	3/8	1/2	.354 (9)	1.043 (26,5)	1.141 (29)	.551 (14)	.827 (21)	10
87111 00 013	87111-06-06	Request access	3/8	3/8	.295 (7,5)	1.043 (26,5)	1.102 (28)	.551 (14)	.669 (17)	10
87111 00 012	87111-06-04	Request access	3/8	1/4	.276 (7)	1.043 (26,5)	1.122 (28,5)	.551 (14)	.630 (16)	10
87111 00 011	87111-06-02	Request access	3/8	1/8	.217 (5,5)	1.043 (26,5)	1.023 (26)	.551 (14)	.551 (14)	10
87111 00 010	87111-05-06	Request access	5/16 (8)	3/8	.295 (7,5)	.886 (22,5)	.965 (24,5)	.472 (12)	.669 (17)	10
87111 00 009	87111-05-04	Request access	5/16 (8)	1/4	.276 (7)	.886 (22,5)	.945 (24)	.472 (12)	.591 (15)	10
87111 00 008	87111-05-02	Request access	5/16 (8)	1/8	.217 (5,5)	.886 (22,5)	.945 (24)	.472 (12)	.511 (13)	10
87111 00 007	87111-04-06	Request access	1/4	3/8	.295 (7,5)	.827 (21)	.926 (23,5)	.433 (11)	.669 (17)	10
87111 00 006	87111-04-04	Request access	1/4	1/4	.276 (7)	.827 (21)	.906 (23)	.433 (11)	.591 (15)	10
87111 00 005	87111-04-02	Request access	1/4	1/8	.217 (5,5)	.827 (21)	.846 (21,5)	.433 (11)	.511 (13)	10
87111 00 004	87111-53-04	Request access	5/32 (4)	1/4	.276 (7)	.708 (18)	.827 (21)	.354 (9)	.591 (15)	10
87111 00 003	87111-53-02	Request access	5/32 (4)	1/8	.217 (5,5)	.708 (18)	.768 (19,5)	.354 (9)	.511 (13)	10
87111 00 002	87111-02-04	Request access	1/8	1/4	.276 (7)	.650 (16,5)	.827 (21)	.354 (9)	.591 (15)	10
87111 00 001	87111-02-02	Request access	1/8	1/8	.217 (5,5)	.650 (16,5)	.768 (19,5)	.354 (9)	.511 (13)	10
