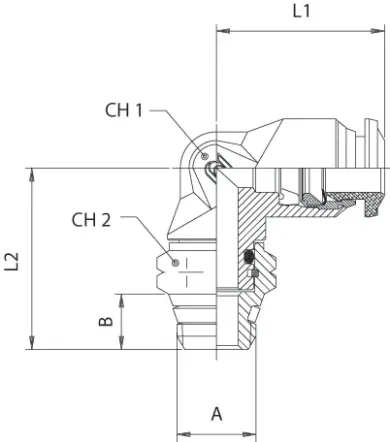

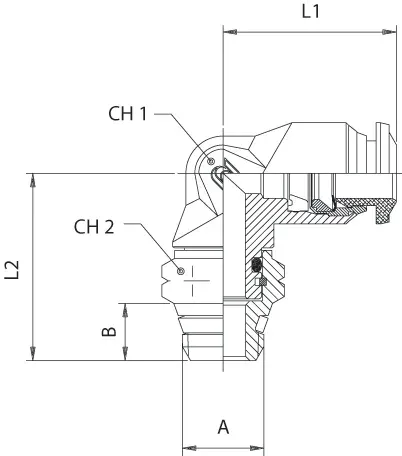

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 87110 00 001 | 87110-02-02 | Request access | 1/8 | 1/8 | 0.217 (5.5) | 0.650 (16.5) | 0.846 (21.5) | 0.354 (9) | 0.512 (13) | 10 | |
| 87110 00 002 | 87110-02-04 | Request access | 1/8 | 1/4 | 0.276 (7) | 0.669 (17) | 1.004 (25.5) | 0.354 (9) | 0.591 (15) | 10 | |
| 87110 00 003 | 87110-53-02 | Request access | 5/32 (4) | 1/8 | 0.217 (5.5) | 0.709 (18) | 0.846 (21.5) | 0.354 (9) | 0.512 (13) | 10 | |
| 87110 00 004 | 87110-53-04 | Request access | 5/32 (4) | 1/4 | 0.276 (7) | 0.709 (18) | 1.004 (25.5) | 0.354 (9) | 0.591 (15) | 10 | |
| 87110 00 005 | 87110-04-02 | Request access | 1/4 | 1/8 | 0.217 (5.5) | 0.846 (21.5) | 0.925 (23.5) | 0.433 (11) | 0.512 (13) | 10 | |
| 87110 00 006 | 87110-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.846 (21.5) | 0.925 (23.5) | 0.433 (11) | 0.591 (15) | 10 | |
| 87110 00 007 | 87110-04-06 | Request access | 1/4 | 3/8 | 0.295 (7.5) | 0.846 (21.5) | 1.083 (27.5) | 0.433 (11) | 0.669 (17) | 10 | |
| 87110 00 008 | 87110-05-02 | Request access | 5/16 (8) | 1/8 | 0.217 (5.5) | 0.906 (23) | 0.984 (25) | 0.512 (13) | 0.512 (13) | 10 | |
| 87110 00 009 | 87110-05-04 | Request access | 5/16 (8) | 1/4 | 0.276 (7) | 0.472 (12) | 1.083 (27.5) | 0.512 (13) | 0.591 (15) | 10 | |
| 87110 00 010 | 87110-05-06 | Request access | 5/16 (8) | 3/8 | 0.295 (7.5) | 0.886 (22.5) | 1.102 (28) | 0.512 (13) | 0.669 (17) | 10 | |
| 87110 00 011 | 87110-06-02 | Request access | 3/8 | 1/8 | 0.217 (5.5) | 1.063 (27) | 1.083 (27.5) | 0.630 (16) | 0.512 (13) | 10 | |
| 87110 00 012 | 87110-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 1.063 (27) | 1.161 (29.5) | 0.630 (16) | 0.591 (15) | 10 | |
| 87110 00 013 | 87110-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 1.063 (27) | 1.181 (30) | 0.630 (16) | 0.669 (17) | 10 | |
| 87110 00 014 | 87110-06-08 | Request access | 3/8 | 1/2 | 0.354 (9) | 1.063 (27) | 1.299 (33) | 0.630 (16) | 0.827 (21) | 10 | |
| 87110 00 015 | 87110-08-04 | Request access | 1/2 | 1/4 | 0.276 (7) | 1.240 (31.5) | 1.299 (33) | 0.748 (19) | 0.591 (15) | 10 | |
| 87110 00 016 | 87110-08-06 | Request access | 1/2 | 3/8 | 0.295 (7.5) | 1.240 (31.5) | 1.299 (33) | 0.748 (19) | 0.669 (17) | 10 | |
| 87110 00 017 | 87110-08-08 | Request access | 1/2 | 1/2 | 0.354 (9) | 1.240 (31.5) | 1.417 (36) | 0.748 (19) | 0.827 (21) | 10 |
