88110

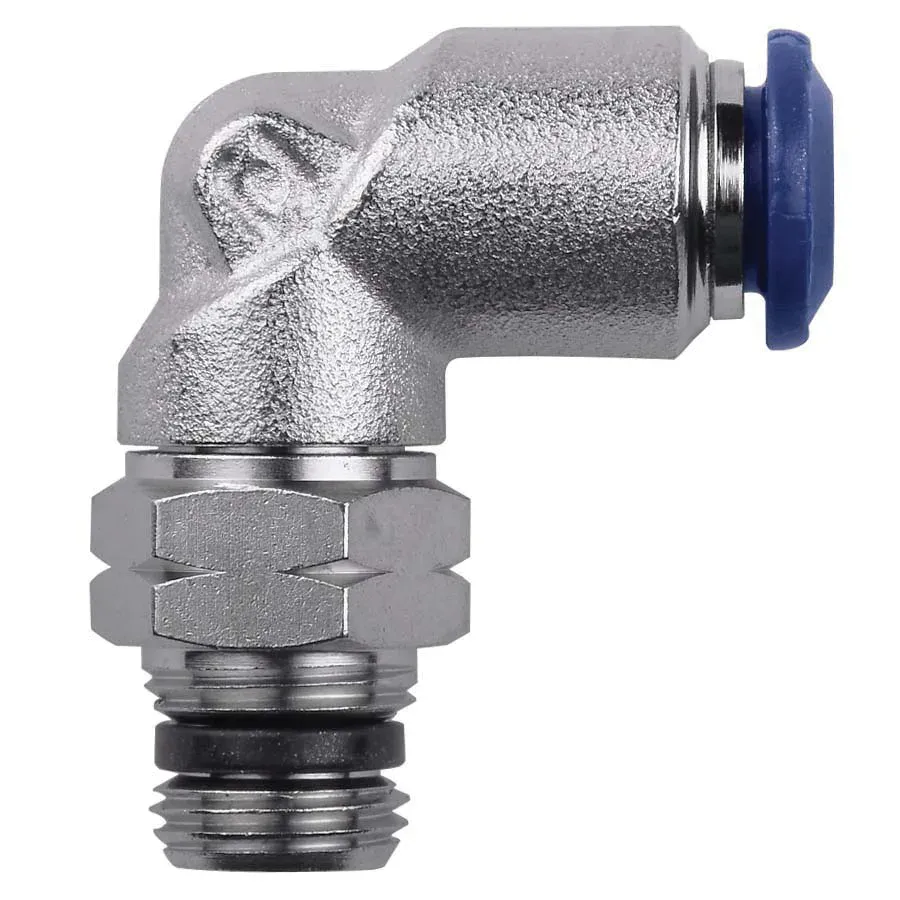

SWIVEL ELBOW - NPTF

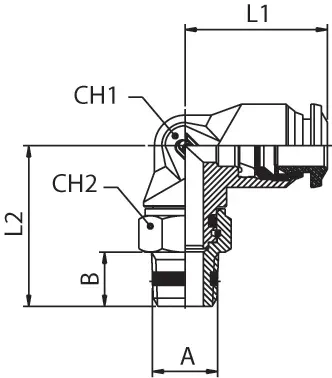

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 88110 00 001 | 88110-02-02 | Request access | 1/8 | 1/8 | 0.335 (8.5) | 0.669 (17) | 0.906 (23) | 0.354 (9) | 0.512 (13) | 10 | |
| 88110 00 002 | 88110-02-04 | Request access | 1/8 | 1/4 | 0.512 (13) | 0.669 (17) | 1.122 (28.5) | 0.354 (9) | 0.591 (15) | 10 | |
| 88110 00 003 | 88110-53-02 | Request access | 5/32 (4) | 1/8 | 0.335 (8.5) | 0.669 (17) | 0.906 (23) | 0.354 (9) | 0.512 (13) | 10 | |
| 88110 00 004 | 88110-53-04 | Request access | 5/32 (4) | 1/4 | 0.512 (13) | 0.669 (17) | 1.181 (30) | 0.354 (9) | 0.591 (15) | 10 | |
| 88110 00 005 | 88110-04-02 | Request access | 1/4 | 1/8 | 0.335 (8.5) | 0.827 (21) | 1.024 (26) | 0.433 (11) | 0.512 (13) | 10 | |
| 88110 00 006 | 88110-04-04 | Request access | 1/4 | 1/4 | 0.512 (13) | 0.827 (21) | 1.220 (31) | 0.433 (11) | 0.591 (15) | 10 | |
| 88110 00 007 | 88110-04-06 | Request access | 1/4 | 3/8 | 0.512 (13) | 0.827 (21) | 1.280 (32.5) | 0.433 (11) | 0.709 (18) | 10 | |
| 88110 00 008 | 88110-05-02 | Request access | 5/16 (8) | 1/8 | 0.335 (8.5) | 0.886 (22.5) | 1.043 (26.5) | 0.512 (13) | 0.512 (13) | 10 | |
| 88110 00 009 | 88110-05-04 | Request access | 5/16 (8) | 1/4 | 0.512 (13) | 0.886 (22.5) | 1.260 (32) | 0.512 (13) | 0.591 (15) | 10 | |
| 88110 00 010 | 88110-05-06 | Request access | 5/16 (8) | 3/8 | 0.512 (13) | 0.886 (22.5) | 1.280 (32.5) | 0.512 (13) | 0.709 (18) | 10 | |
| 88110 00 011 | 88110-06-02 | Request access | 3/8 | 1/8 | 0.335 (8.5) | 1.043 (26.5) | 1.181 (30) | 0.630 (16) | 0.512 (13) | 10 | |
| 88110 00 012 | 88110-06-04 | Request access | 3/8 | 1/4 | 0.512 (13) | 1.102 (28) | 1.378 (35) | 0.630 (16) | 0.591 (15) | 10 | |
| 88110 00 013 | 88110-06-06 | Request access | 3/8 | 3/8 | 0.512 (13) | 1.024 (26) | 1.358 (34.5) | 0.630 (16) | 0.709 (18) | 10 | |
| 88110 00 014 | 88110-06-08 | Request access | 3/8 | 1/2 | 0.669 (17) | 1.043 (26.5) | 1.614 (41) | 0.630 (16) | 0.866 (22) | 10 | |
| 88110 00 015 | 88110-08-04 | Request access | 1/2 | 1/4 | 0.512 (13) | 1.201 (30.5) | 1.555 (39.5) | 0.748 (19) | 0.591 (15) | 10 | |
| 88110 00 016 | 88110-08-06 | Request access | 1/2 | 3/8 | 0.512 (13) | 1.201 (30.5) | 1.476 (37.5) | 0.748 (19) | 0.709 (18) | 10 | |
| 88110 00 017 | 88110-08-08 | Request access | 1/2 | 1/2 | 0.669 (17) | 1.201 (30.5) | 1.732 (44) | 0.748 (19) | 0.866 (22) | 10 |
